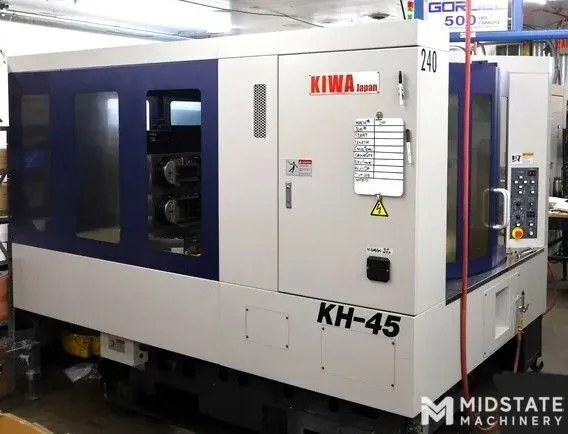

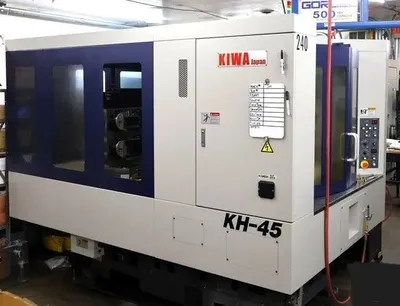

KIWA KH-45 Horizontal Machining Center, New in 2014
Have one to sell?
ConditionUsed
1 available
KIWA KH-45 Horizontal Machining Center, New in 2014.
Installed in 2017, low hours.
6-Pallet.
20k RPM HSK-63 Spindle.
6 APC, 4+1 5-Axis Capability.
General Specifications:
PALLET WIDTH 15.723"
PALLET LENGTH 15.723"
PALLET INDEXING FULL 4TH
NUMBER OF PALLETS 6
TABLE LENGTH 15.72"
TABLE WIDTH 15.72"
MAX WORKPIECE WEIGHT 1,100 lb
X-AXIS TRAVEL 25.157"
Y-AXIS TRAVEL 23.978"
Z-AXIS TRAVEL 26.73"
SPINDLE SPEED 20,000 RPM
SPINDLE TAPER HSK 63
TOOL POSITIONS (ATC) 120
RAPID TRAVERSE RATE 2,362 in/min.

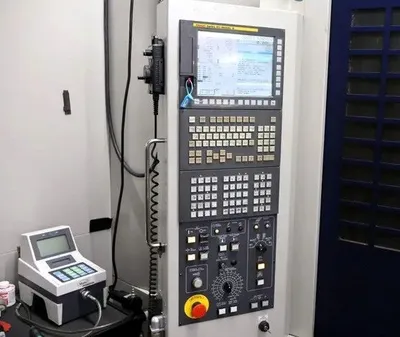

FANUC 31i-ModelB.

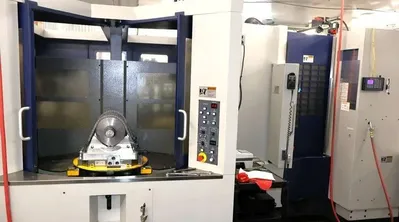

6-Pallet Capacity: (1) Load/Unload Station, (4) In Pool, (1) In Machine.

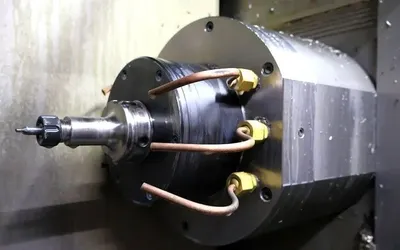

20,000 RPM HSAK-63 Spindle.

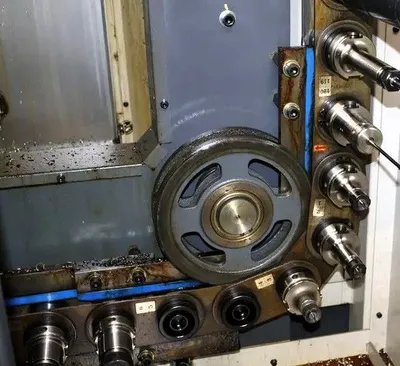

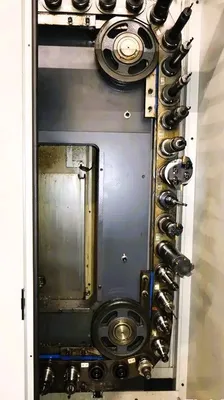

120 ATC Capacity.
(80) HSK-63 Tool Holders Included in sale.
Renishaw OMI-2 Probe.
Renishaw NC4 Laser Tool Setter.

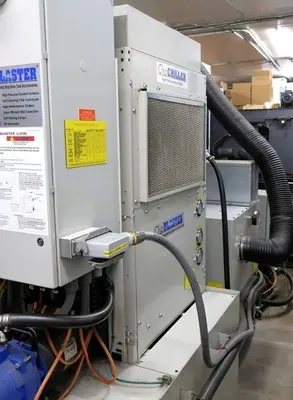

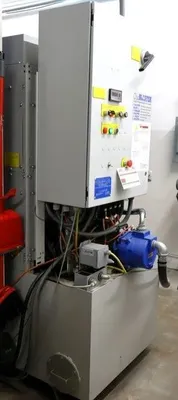

3000 PSI Chipblaster High Pressure Coolant System.
Mistblaster Super Efficient Mist Collection System.
LNS Turbo MF2 Chip Conveyor: Dual Conveyor Design to remove large chips of all sizes as well as fines.

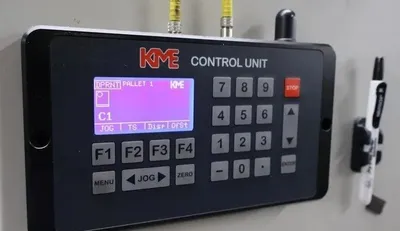

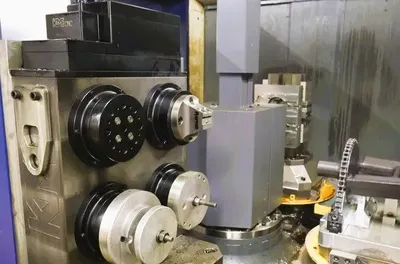

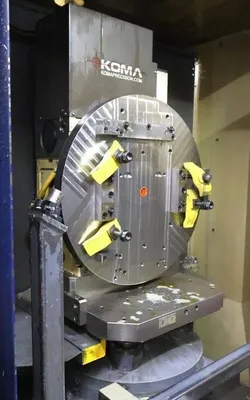

(2)KME CNC TS-400MM 5-Axis Wireless Tombstone (as Pictured)-$75k Value.
All available Tombstones will be included with sale of machine.

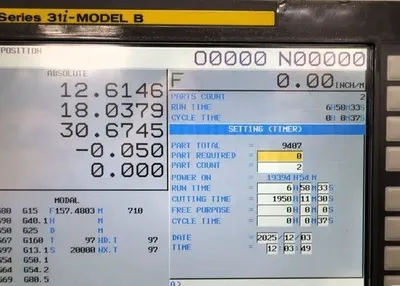

HOURS OF USE (AS OF 12/3/2025):
* POWER ON: 19,394 HOURS
* CUTTING: 1,950 HOURS
**Machine was installed AS-NEW in 2017 in current location. One owner. Never saw full shift work.
NOTE: MACHINE IS IMPECCABLE MAINTAINED AND EQUIPPED. COMING OUT OF A SINGLE SHIFT SHOP AND IS AVAILABLE IMMEDIATELY. FRONT PLEXIGLASS PANE IS PRESENT, JUST REMOVED FOR ACCESS TO PALLET POOL.
