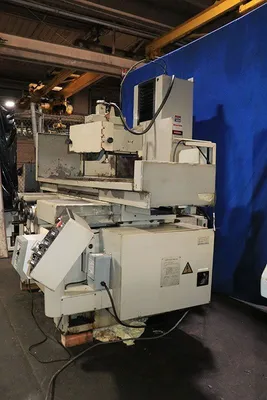

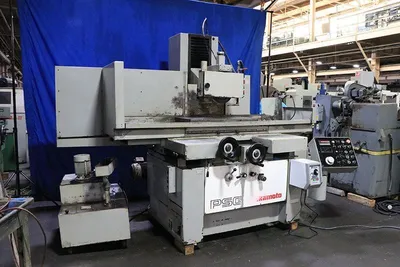

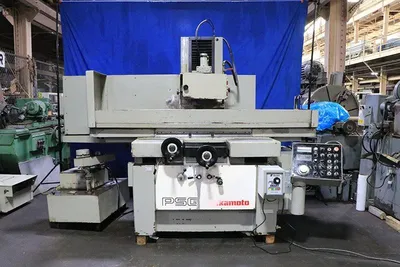

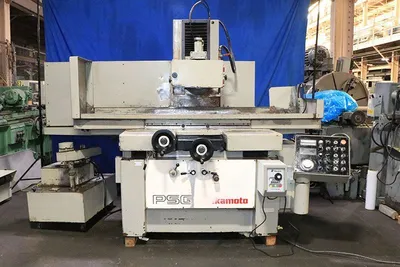

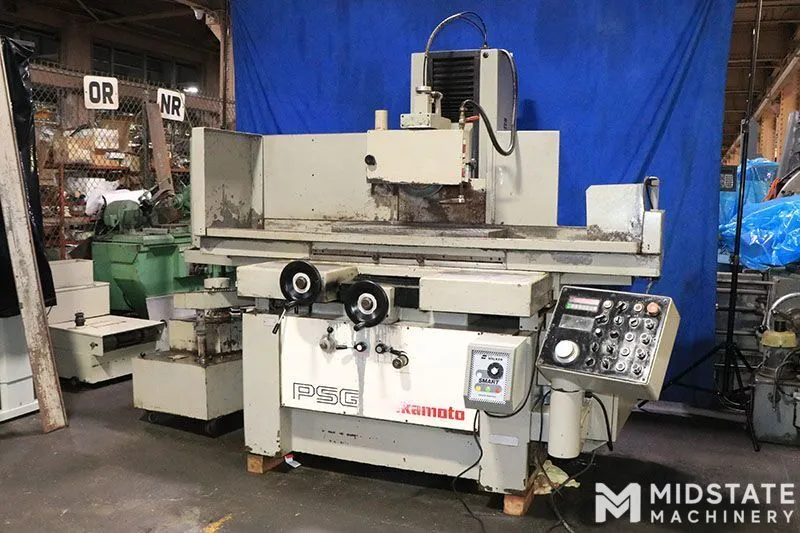

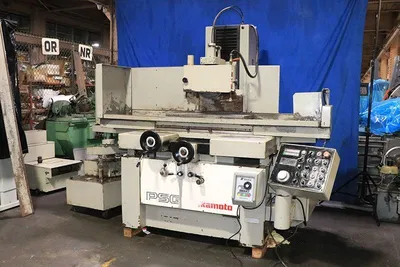

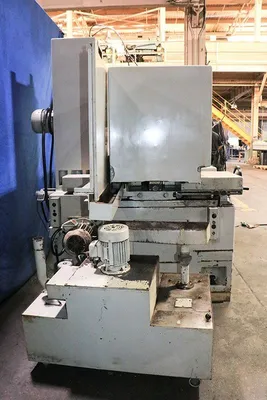

Okamoto ACC-1632DX High Precision Surface Grinder, New in 1992
General Specifications:
Nominal Grinding Capacity: 16" x 32"
Height Under 12" Wheel to Table Surface: 21.5"
Table Speed, Infinitely Variable: Up to 82' FPM
Longitudinal Table Movement
-Manual: 30""
-Auto Crossfeed Increment: 0.002" - .80"
-Auto Continuous Crossfeed: 4' - 40' FPM

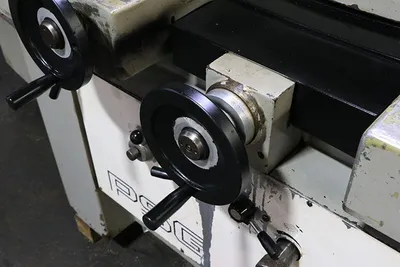

Crossfeed - Manual
-Hand Feed per Rev: 0.25"
-Grad. of Handwheel: 0.001"
Max Crossfeed, Manual: 18"
Auto Incremental Downfeed Increments: 0.00005" - .0015"
Power Rapid Wheel Positioning Rate: 16" IPM
Spindle Motor: 5 HP

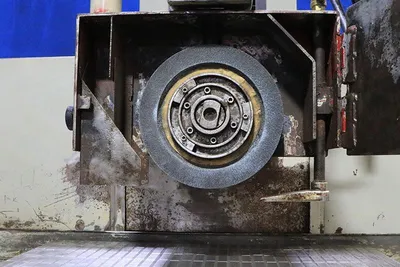

Wheel Size: 12" x 1.5" x 5"
Wheel Speed: 6,500 SFPM
Grinding Wheel Speed: 1,800 RPM
Machine Dimensions: 107" x 87" x 70"
Machine Weight: 8,800 lbs

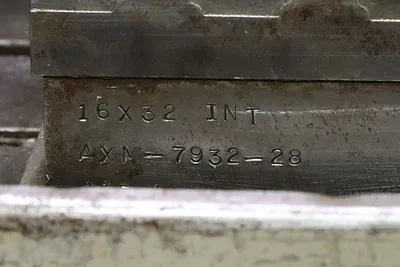

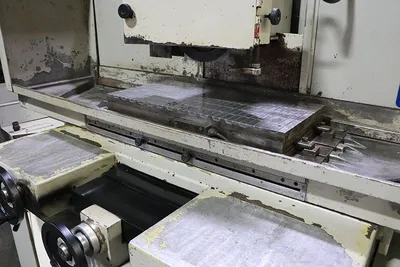

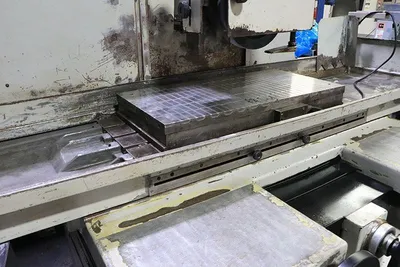

16" x 32" Kanetsu Electro-Magnetic Chuck

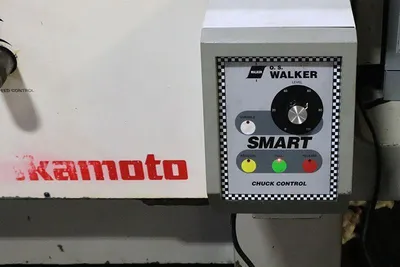

OS Walker "Smart" Variable Hold Neutrofier Control

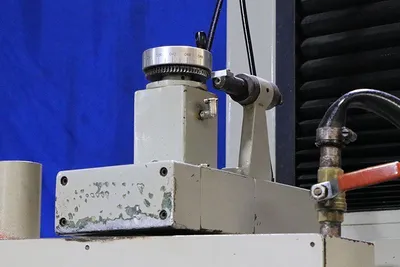

Power Over the Wheel Dresser

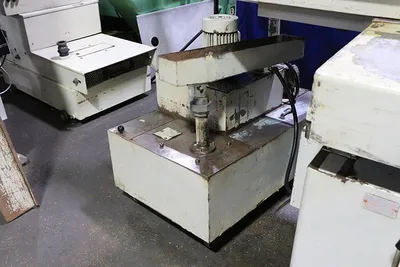

Coolant Tank & Pump, Portable on Casters
Wired for 3/60/460 Volt
