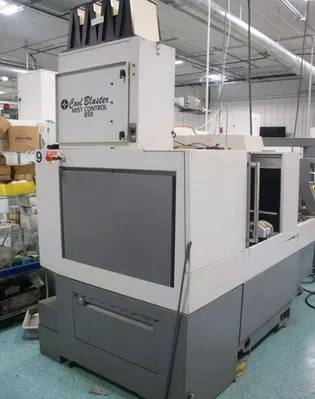

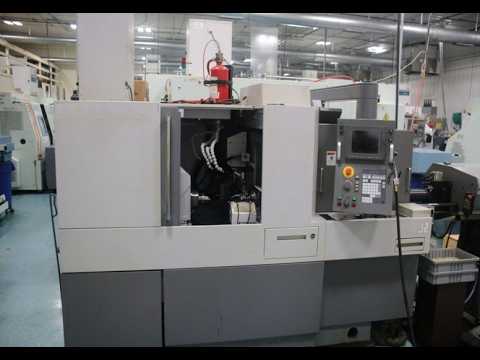

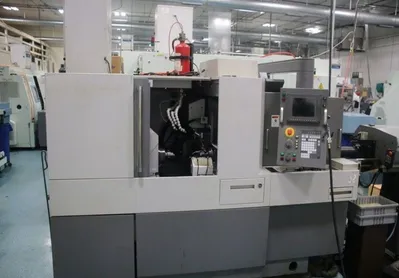

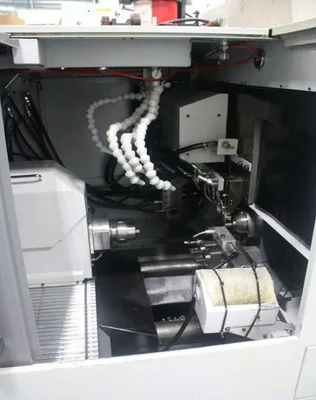

Citizen A32VII CNC Swiss Lathe, New in 2015

General Machine Specifications:
Machining Diameter: 32mm
Machining Length: 320mm
Main Spindle Speeds: 8000 Max RPM
Main Spindle Indexing: C-Axis
Back Spindle Speeds: 8000 Max RPM
Sub-Spindle Indexing: C-Axis
Rotary Tool Speeds: 5000 Max RPM
Back Spindle Max Chucking Diameter: 32mm
Turning Tools: 10 Turning Tool Stations
(6 Static, 4 Live)
Rotary (Live) Tools: 4 Live Tool Stations
Front Endworking Tools: 4 Stations
Back Endworking Tools: 9 Total Stations (4 + 5)
Cutting Tool Shank/Sleeve Size: 24.5mm
Rapid Traverse (X/Y/Z): (45m/min X2,Y1,Z1,Z2)(32m/min X1)
Main Spindle Drive: 7.5 KW
Back Spindle Drive: 3.7 KW
Rotary Tool Drive: 1 KW
Electrics: 220 Volt 3 Phase

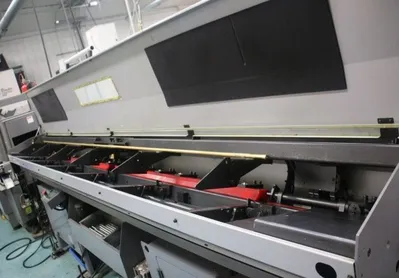

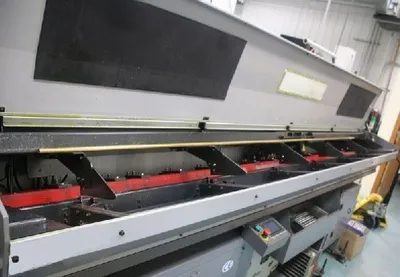

General Barfeed Specifications:
Bar Capacity:
No Prep: 3mm to 33.2mm (.118" to 1.312")
With Prep: 3mm to 38 mm (.118" to 1.500")
Maximum Bar Length: 12'6"
Minimum Bar Length: 39.4"
Maximum Remnant Length: 16"
Magazine Rack Capacity: 12"
Bar Loading Cycle: 30 seconds for 12' bar
Material Straightness Specifications: .007"TIR/ft of material
(V Blocks, 3 points equidistant)
Feed Force (pusher torque): max 450N, adjustable
Foward Feed Rate: 750 inches/min max, adjustable
Return Feed Rate: 1000 inches/min max, adjustable
Power Consumption: 1.5kW
Operating Voltage: 230V/60 Hz - 3 phase
Control Voltage: 24V DC
Oil Capacity: 57 liters (15 gallons)
Oil Viscosity: ISO 100cST
Compressed Air Supply: 6 bar (90 psi)
Compressed Air Consumption: approx. 8 liters per loading cycle
Weight (approx): 2,100 lbs
Dimensions (approx.): 16' x 2' x 4.25'
