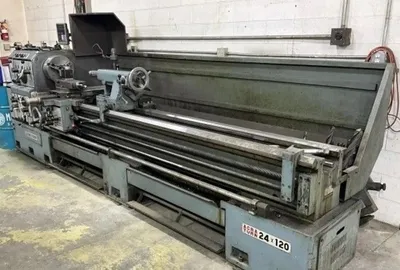

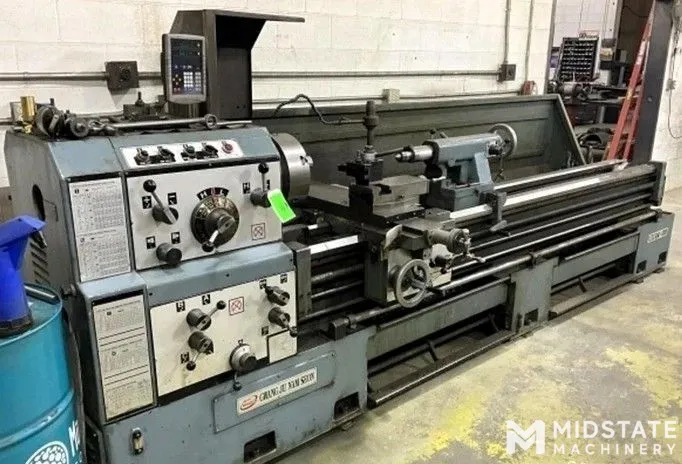

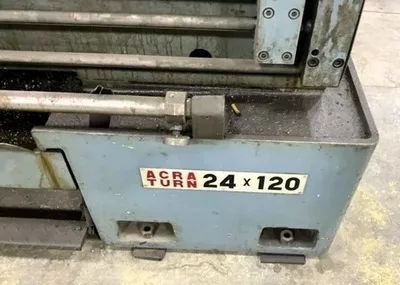

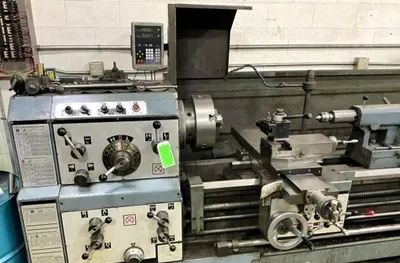

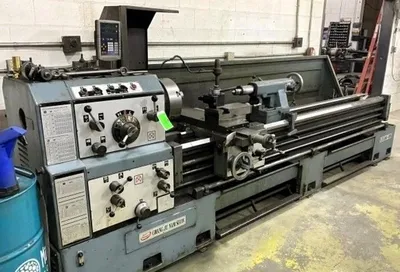

ACRA-TURN NAMSEON 24 x 120 Engine Lathe w/ Gap#8124
Have one to sell?
ConditionUsed
1 available
ACRA-TURN NAMSEON 24 x 120 Engine Lathe w/ Gap#8124.
Newall C-80 2-Axis DRO.
3-Jaw Chuck.
Tailstock.
Tool Post.
Chip Pans.
General Specifications:
Swing Over Bed: 24"
Swing Over Cross Slide: 20"
Distance Between Centers: 120"
Swing in Gap: 31"
Spindle Bore: 4.125"
Spindle Speed: Typically ranges 12–1200 RPM or 25–1500 RPM
Main Motor: 20 HP
Bed Width: 16"
Approx. Weight: 12,000 Lbs.
Newall C-80 2-Axis DRO
3-Jaw Check
Tailstock
Tool Post
Chip Pans
ACRA-TURN NAMSEON 24 x 120 Engine Lathe w/ Gap#8124.
Newall C-80 2-Axis DRO.
3-Jaw Chuck.
Tailstock.
Tool Post.
Chip Pans.
Imperial
| Swing | 24" |
| Centers | 120" |
| Spindle Bore | 4.125" |
| Power | 20 hp |
| RPM | 1,200 RPM |
| Swing Over Cross Slide | 20" |
| Weight | 1200lbs |
General Specifications:
Swing Over Bed: 24"
Swing Over Cross Slide: 20"
Distance Between Centers: 120"
Swing in Gap: 31"
Spindle Bore: 4.125"
Spindle Speed: Typically ranges 12–1200 RPM or 25–1500 RPM
Main Motor: 20 HP
Bed Width: 16"
Approx. Weight: 12,000 Lbs.
Newall C-80 2-Axis DRO
3-Jaw Check
Tailstock
Tool Post
Chip Pans
