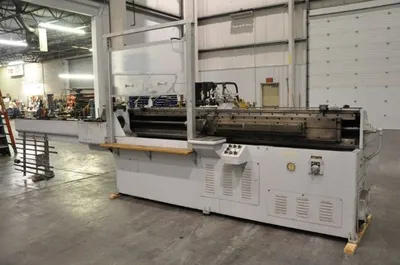

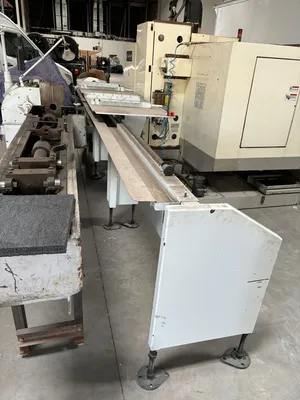

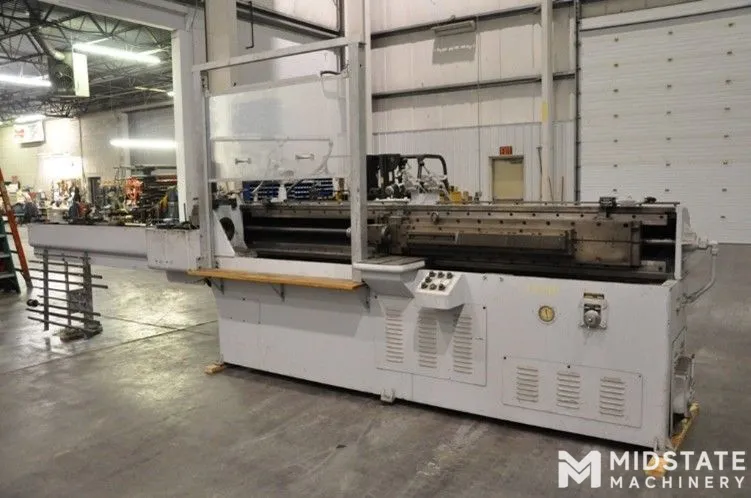

GREENARD HORIZONTAL HYDRAULIC PULL BROACH
Have one to sell?
ConditionUsed
1 available
Owner said to make offer.
GREENARD HORIZONTAL HYDRAULIC PULL BROACH
Unique Design Allows Internal Pull Broaching and Surface Broaching
Rated Capacity: 5 Ton
Ram Stroke: 55"
Broach Main Ram Size: 10-1/8" Wide x 70-1/2" Long x 1-1/2" Thick
Surface Broach Sub Plate: 10" Wide x 58" Long x 1-1/4" Thick
Surface Broach, Broach Holder Plate: 6" Wide x 46" Long x 2-1/2" Thick
Pull Broach Holder Unit Bolts to Main Ram Unit and is Adjustable for Location
Surface Broaching Worktable Size: 12-3/16" L-R x 16" F-B with 3 T-Slots
Ram Speed: Variable, Hydraulic, Manually Controlled
Pull Broach Mounting Face: 10" Wide x 18" High with 5" Thru Hole
Pull Broach Head has Manual Vertical Adjustment
Coolant System Built into Base of Machine
Assortment of Tooling and Broaches
Hard Replaceable Ways on Machine and Broach Carrier
V-Block Style Parts Rest with Vertical Adjustment on Broach Carrier
Pendant and Stationery Control Cycle Buttons For: Jog, Push, Pull, Start & Stop
Broach Carrier Unit, Bolts to Main Machine
Advance and Retract Stroke Length is Controlled by (2) Moveable Micro Switch Stops
Custom Addition: (2) Port Air / Hydraulic System with Manual Controls
Wired for 3 Phase, 60 Hz, 220/440 Volts
