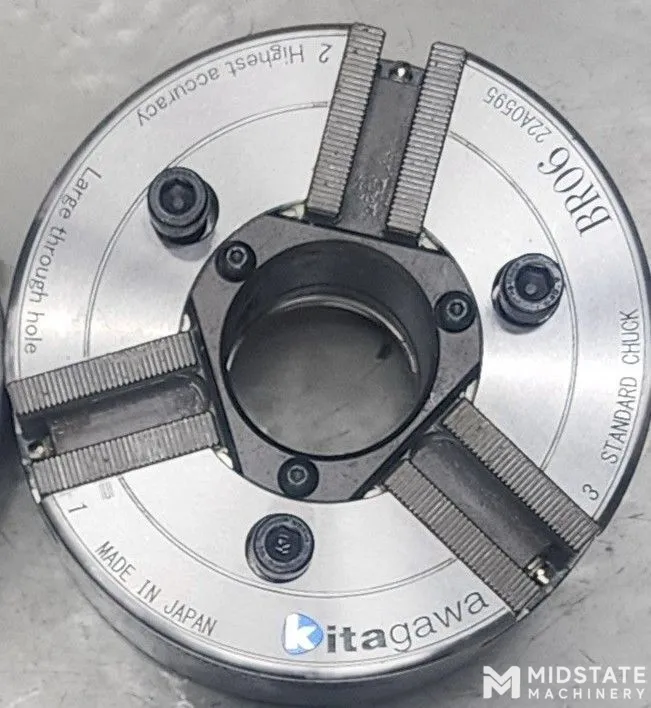

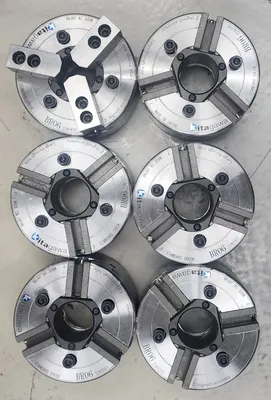

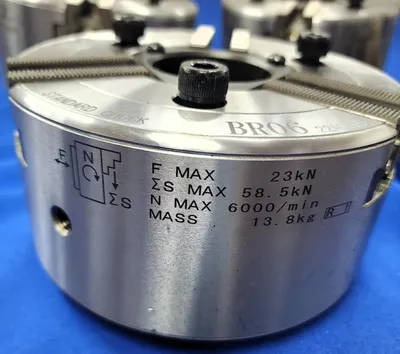

KITAGAWA BR06 High Precision, Ultra-large Through-hole, High-speed Power Chuck

General Specifications:
Through-hole (mm) 53
Gripping Range (mm)
Max. 170
Min. 16
Jaw Stroke (Diameter) (mm) 5.5
Plunger Stroke (mm) 12
Max. Draw Bar Pull Force(kN)
at OD Gripping 23
at ID Gripping 11.5
Max. Static Gripping Force(kN)
at OD Gripping 58.5
at ID Gripping 29.3
Max. Speed (min-1) 6000
Dynamic Gripping Force at Max. Speed (kN)
(at OD Gripping) 22.5
Moment of Inertia (kg･m2) 0.052
Net Weight (kg)
(with Soft Top Jaws) 12.8
Matching Cylinder SR1453C, SS1453K
Matching Soft Jaws Standard, Extra Tall, Small diameter gripping
Matching Hard Jaws HB06A1, HB06B1
