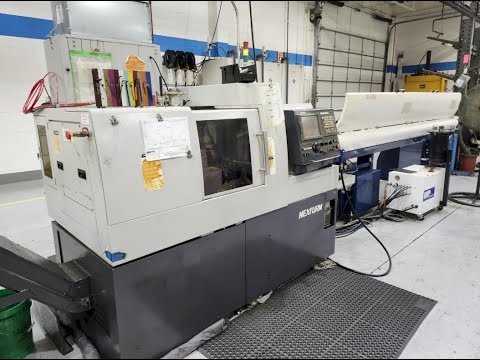

Nexturn SA-38 CNC Swiss Lathe, New in 2006

General Specifications:
Machining Capability
Bar Capacity: 1.5"
Bar Length: 8.26"
Main Spindle Drilling/Tapping: 0.47" / M10
Sub-Spindle Chucking Diameter: 1.25
Back-End Face Drilling/Tapping: 0.39" / M8
Cross Disc-Mill Diameter: 1.57"

Capability
Main Spindle Speed: 8,000 RPM
Sub Spindle Speed: 8,000 RPM
Cross Spindle Speed: 8,000 RPM
Number of Tools: 19
OD / Cross Live Tools: 5 / 4
Sub-Spindle Front-End Face Tools: 4 (2 Live)
Back-End Face Tools: 4
Bite Shank: 0.62 x 4.72"
Rapid Traverse Rate: 1259 IPM

Motors
Main Spindle Motor: 10 HP
Sub Spindle Motor: 3 HP
Cross Drill/Mill Unit: 1.4 HP
Back End Face Tools: 1.3 HP
Rotary Guide Bushing Unit: 1.4 HP

Machine Dimensions: 76" x 53" x 65"
Machine Weight: 8,000 lbs
