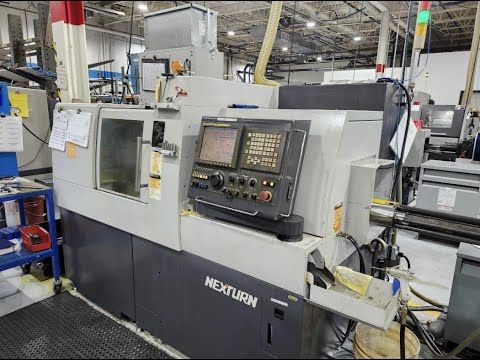

Nexturn SA-32E CNC Swiss Lathe, New in 2007

General Specifications:

Machining Capacity
Bar Diameter: 1.26"
Turning Length: 8.27"
Drilling / Tapping on Main Spindle: 0.47" / M8
Sub Spindle Chucking Diameter: 1.26"
Drilling / Tapping on Sub Spindle: 0.39" / M8
Drilling / Tapping on Cross Slide: 0.39" / M8
Key Cutter Diameter (Cross Slide): 1.57"
Main Spindle Speed: 8,000 RPM
Sub Spindle Speed: 8,000 RPM
Spindle Center Height: 39.37"
Cross Spindle Speed: 8,000 RPM

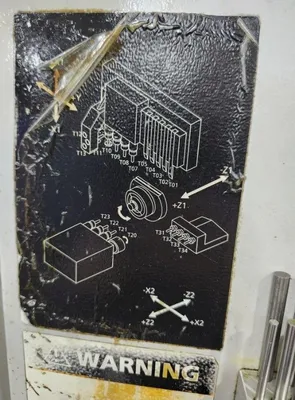

Total # of Tools: 20

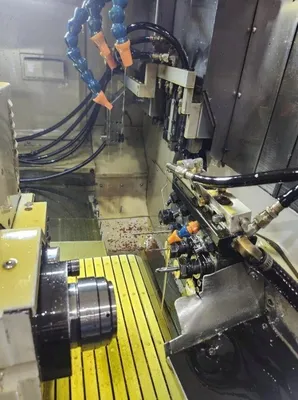

Machine Capability
Number of Turning Tools: 5
Number of Cross Live Tools: 4
Number of Y‑Axis ID Tools: 3
Number of Front‑End Face Tools: 1 Fixed / 2 Live
Number of Back‑End Face Tools: 4 Fixed
Turning Tool Shank Size: 5/8" × 4‑3/4"
Rapid Traverse: 105 ft/min (1260 ipm)
Number of Controllable Axes: 7
Main Spindle Positioning: 0.001°
Sub Spindle Positioning: 0.001°

Motors
Main Spindle: 7.4 / 10.0 HP
Sub Spindle: 2.0 / 3.0 HP
Cross Drill / Mill Unit: 0.74 / 1.47 HP
Rotary Guide Bushing Drive: Spline Shaft
Back‑End Face Tools: 1.34 HP
Coolant Pump: 0.60 HP
Lubrication Pump: 0.054 HP

Dimensions & Capacity
Coolant Capacity: 53 gallons
Machine Dimensions: 84.25" × 54.13" × 65.75"
Machine Weight: 7,700 lbs
