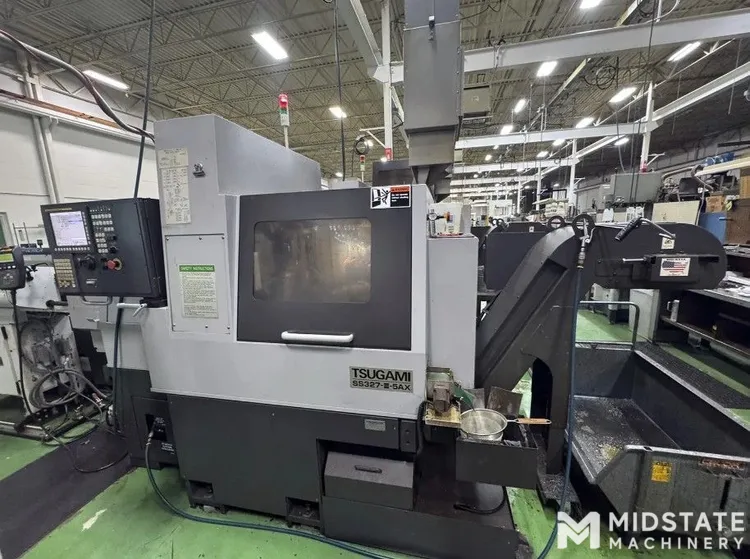

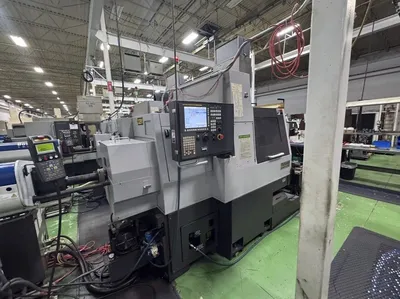

Tsugami SS327-III-5AX CNC Swiss Lathe, New in 2020

General Specifications:

Capacity
Chucking Barstock Diameter: 1.26"
Machining Length:
-12.99" (Direct‑Drive Guide Bushing)
-2.76" (Chucker Mode)

Max. Drilling Diameter: 0.47"
Max. Tapping Diameter: M10 (thread size, not converted)
Max. Back Spindle Chucking Barstock Diameter: 1.26"
Max. Back Spindle Drilling Diameter: 0.39"
Max. Back Spindle Tapping Diameter: M8
Max. Tool Spindle Drilling Diameter: 0.31"
Max. Tool Spindle Tapping Diameter: M6
Max. Tool Spindle Slotting Cutter Diameter: 1.77"

Machine Capabilities
Main Spindle Speed: 200–8,000 RPM
Back Spindle Speed: 200–8,000 RPM
Tool Spindle Speed: 200–6,000 RPM
Total Tool Capacity: 38 tools

Tool Size:
-0.625" × 3.94" (square)
-25 mm round (≈ 0.984". round)

Rapid Traverse Rate:
Overall: 105 ft/min
X1, Y1, Y2 axes: 78.74 ft/min
B‑Axis Tool Spindle Speed: 7,000 RPM
Spindle Index: C1 Axis & C2 Axis

Motors
Main Spindle: 3.7 / 5.5 kW (≈ 5 / 7.4 HP)
Back Spindle: 3.7 / 5.5 kW (≈ 5 / 7.4 HP)
Cross Drill (Front Tool Post): 1.0 kW (≈ 1.34 HP)
B‑Axis Tool Spindle: 1.0 kW (≈ 1.34 HP)
Rotary Tool (Back Tool Post): 1.4 kW (≈ 1.88 HP)
Rotary Guide Bushing: 1.5 kW (≈ 2.01 HP)
Z1, Y1, X2, Z2: 0.75 kW (≈ 1 HP)
X1, Y2: 0.5 kW (≈ 0.67 HP)
Coolant Pump: 0.4 kW (≈ 0.54 HP)
Lubricating Pump: 3 W (≈ 0.004 HP)

Other
Compressed Air Requirement: ≥ 0.4 MPa (≈ 58 PSI)
Air Discharge Rate: 100 NL/min (≈ 3.53 CFM)
Power Source Requirement: 16.8 kVA
Coolant Tank Capacity: 260 L (≈ 68.7 gallons)

Machine Dimensions: 103.5" × 50.4" × 79"
Machine Weight: 8,818 lbs
