Traub TNL 26 CNC Swiss Lathe, New in 2004
Have one to sell?
ConditionUsed
1 available
Traub TNL 26 CNC Swiss Lathe, New in 2004
General Specifications:
Max Machining Length: 9.842″ (250 mm)
Bar capacity: 1.024″ (26 mm)
Main Spindle Speed: 8,000 RPM
Number of Tools: 34 Positions
Z-Axis Stroke (stationary guide bush): 9.84″ (250 mm)
Z-Axis Stroke (rotation buide bush): 8.86″ (225 mm)
Tool Carrier 1 Capacity: 12 Tools
X-Axis Stroke: 1.97″ (50 mm)
Y-Axis Stroke: +/- 0.79″ (20 mm)
Tool Carrier 2 Capacity: 12 Tools
X-Axis Stroke: 1.97″ (50 mm)
Y-Axis Stroke: +/- 0.79″ (20 mm)
Z-Axis Stroke: 3.94″ (100 mm)
Tool Carrier 3 (Front) Capacity: 5 Tools
Diameter of Mount: 1.57″ (40 mm)
Spacing: 2.13″ (54 mm)
X-Axis Stroke: 14.57″ (370 mm)
Z-Axis Stroke: 9.84″ (250 mm)
Tool Carrier 4 (Rear) Capacity: 5 Tools
Diameter of Mount: 1.57″ (40 mm)
Spacing: 2.13″ (54 mm)
X-Axis Stroke: 2.87″ (73 mm)
Y-Axis Stroke: +/- 1.97″ (50 mm) Option
Approx Dimensions: 146″ x 51″ x 65″
Approx Machine Weight: 8,820 lbs

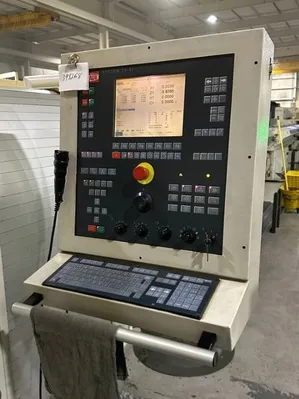

Traub TX8i CNC Control

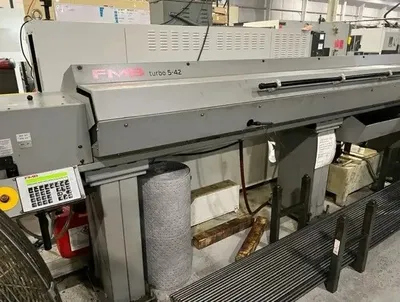

FMB Turbo 5-42 (12’ bar capacity) with 32mm channel set and pusher.
Machine will come with the following tool holders:
(9) 16mm shank stick tool holders
(2) ER25 Front / Rear working unit holders
(2) ER16 Front / Rear working unit holders
(2) 16mm E-Mill Front / Rear working unit holders
The guide bush assembly will be a 25mm rotating assembly which uses CD25 guide bushings.
