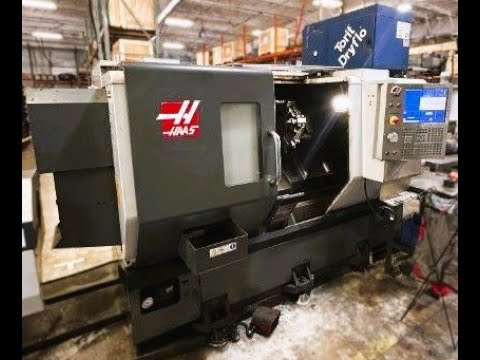

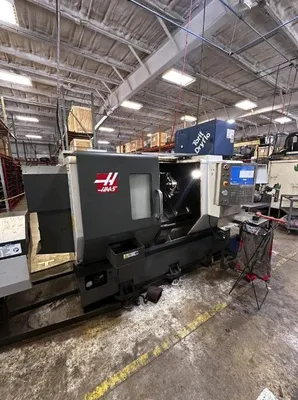

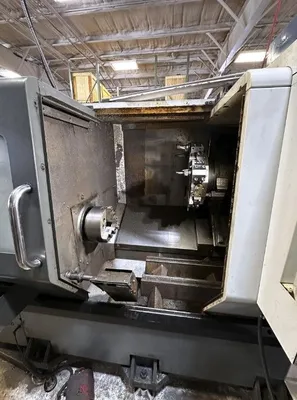

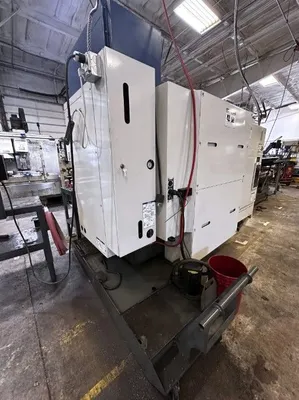

Haas ST-25 CNC Turning Center, New in 2015
Have one to sell?
ConditionUsed
1 available
Haas ST-25 CNC Turning Center, New in 2015
General Specifications:
X-Axis Travel: 8.40"
Z-Axis Travel: 22.5"
Swing: 21"
Machining Length: 21"
Cutting Diameter (with BOT Turret): 13"
Cutting Length: 22.5"
Spindle Speed: 3,400 RPM
Spindle Nose: A2-6
Bar Capacity: 3"
Chuck Size: 10"
Distance Between Centers: 31"
Turning Diameter: 15"
Power: 30 hp
Hole Thru: 3.5"
Machine Dimensions: 126" x 83" x 71"
Machine Weight: 10,500
Haas CNC Control
Servo 300 Bar Feed
Parts Catcher
Tooling
Torit Mist Collector
Haas ST-25 CNC Turning Center, New in 2015
Imperial
| Swing | 21" |
| Machining Length | 22.5" |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,400 RPM |
| Turning Dia | 15.5" |
| Tailstock | No |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Haas) |
| Dimensions | 126" x 83" x 71" |
| Weight | 10,500 lbs |
General Specifications:
X-Axis Travel: 8.40"
Z-Axis Travel: 22.5"
Swing: 21"
Machining Length: 21"
Cutting Diameter (with BOT Turret): 13"
Cutting Length: 22.5"
Spindle Speed: 3,400 RPM
Spindle Nose: A2-6
Bar Capacity: 3"
Chuck Size: 10"
Distance Between Centers: 31"
Turning Diameter: 15"
Power: 30 hp
Hole Thru: 3.5"
Machine Dimensions: 126" x 83" x 71"
Machine Weight: 10,500
Haas CNC Control
Servo 300 Bar Feed
Parts Catcher
Tooling
Torit Mist Collector
