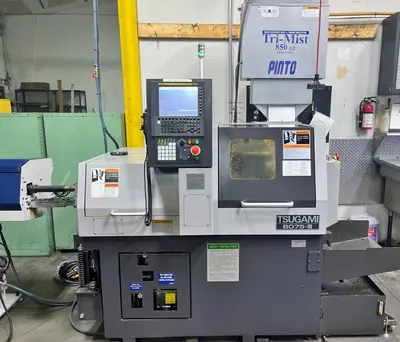

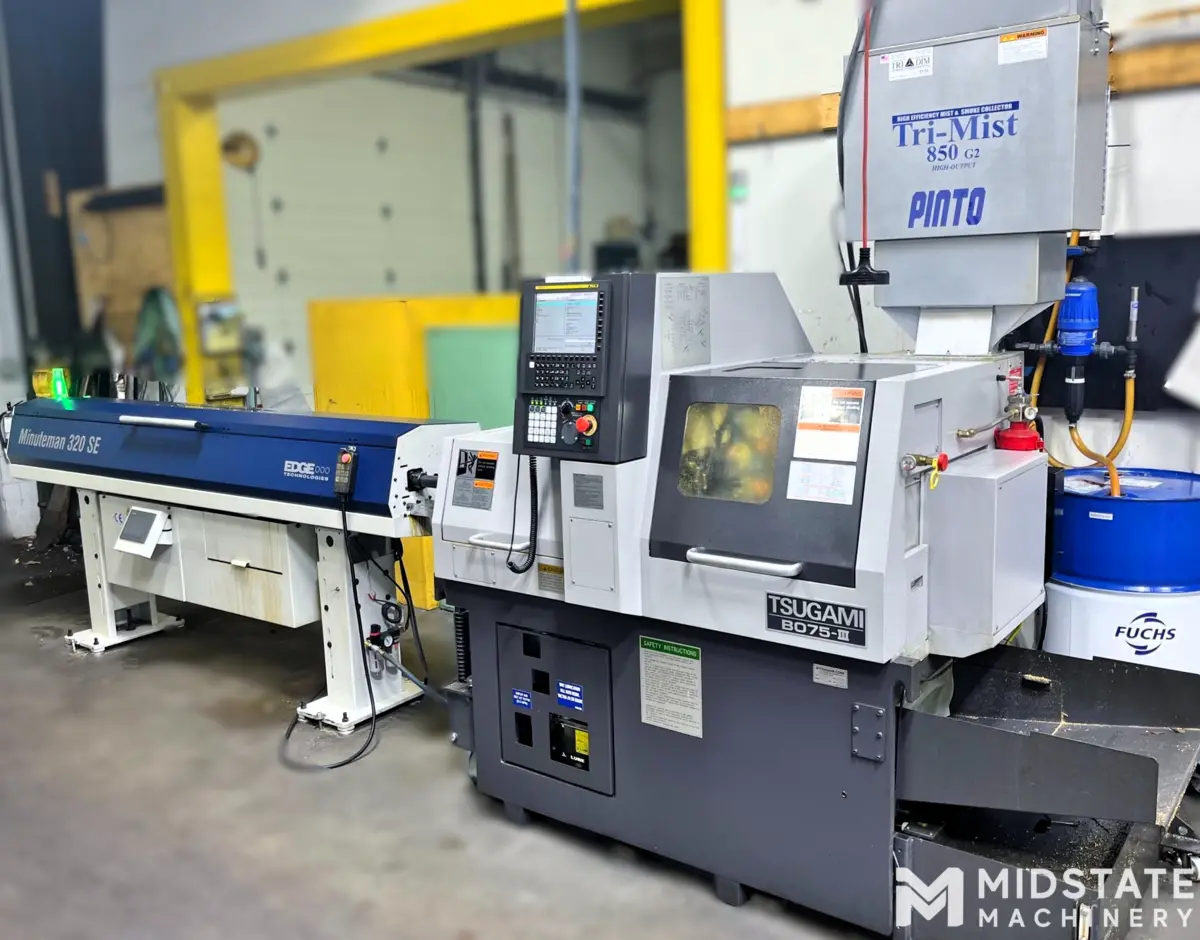

TSUGAMI B075-Ⅲ CNC Swiss Lathe, New in 2021
Have one to sell?
ConditionUsed
1 available
TSUGAMI B075-Ⅲ CNC Swiss Lathe, New in 2021.

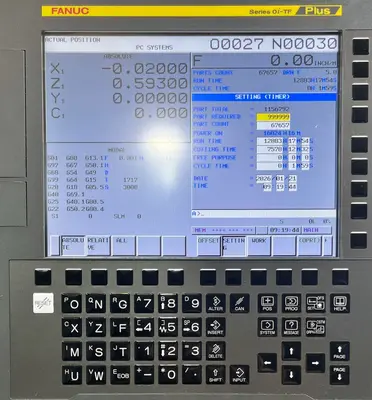

Fanuc 0i-TF Plus Control.
Edge Minuteman 320SE Magazine Barfeed (6')
High Pressure Coolant.
Tri-Mist Mist Collector
Fire Suppression
General Specifications:
BAR CAPACITY 7 mm
MAX HEADSTOCK STROKE 2.76"
MAIN SPINDLE MOTOR 2 hp
MAIN SPINDLE INDEXING FULL C-AXIS
MAIN SPINDLE SPEED 15,000 RPM
BACK SPINDLE MOTOR 3 hp
BACK SPINDLE INDEXING FULL C-AXIS
BACK SPINDLE SPEED 12,000 RPM

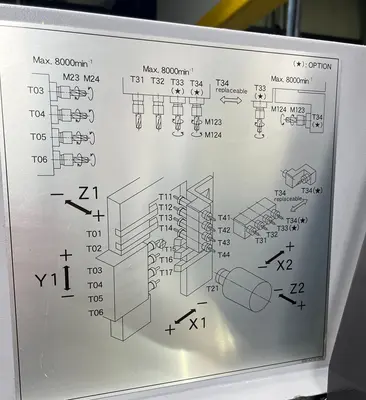

TOTAL TOOL CAPACITY (POSITIONS) 21
TOTAL LIVE TOOL CAPACITY (POSITIONS) 4
LIVE TOOL SPEEDS 8,000 RPM
CONTROLLABLE AXES 5

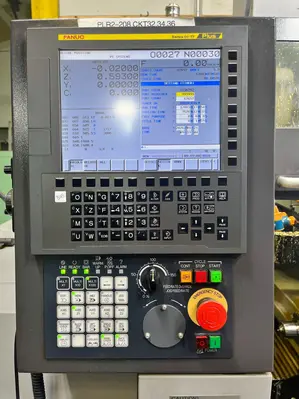

FANUC 0i-TF PLUS CONTROL
SIMULTANEOUS AXES CONTROL
EDGE MINUTEMAN 320SE MAGAZINE BAR FEEDER (6’)
CHUCKER KIT (CONVERTIBLE FROM GUIDE BUSHING TO NON-GUIDE BUSHING)
DIRECT DRIVE ROTARY GUILD BUSHING
TF10 COLLET CHUCKS ON MAIN & SUB
FULL C-AXIS MAIN & SUB

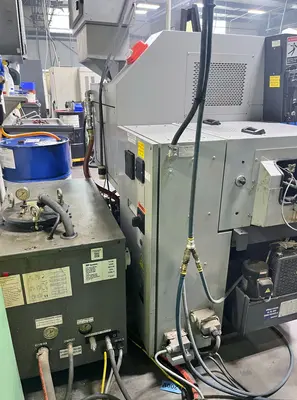

MP SYSTEMS HIGH-PRESSURE COOLANT UNIT (2,000 PSI)
TRI-MIST MIST COLLECTOR

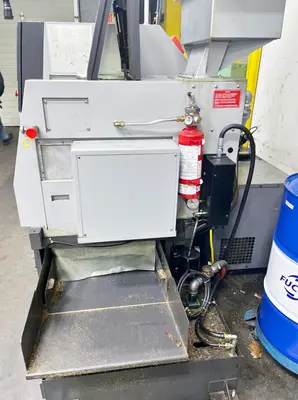

FIRETRACE FIRE SUPPRESSION
WORK CONVEYOR & PARTS CATCHER BASKET
** AS OF JANUARY 2026, CUTTING TIME – 7,578 HOURS
** MADE IN JAPAN
** MACHINE RAN OIL
** BUILT IN 2021 & INSTALLED NEW IN 2022
** MACHINE CUT PRIMARILY BRONZE & BRASS
