DOOSAN PUMA 2100SY CNC Universal Lathe, New in 2013
Have one to sell?
ConditionUsed
1 available

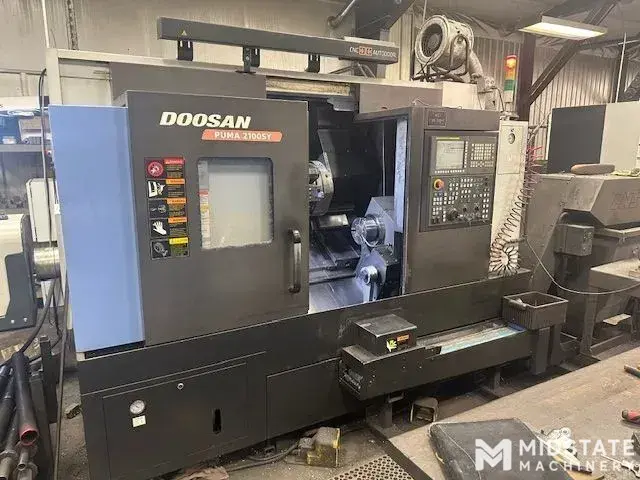

DOOSAN PUMA 2100SY CNC Universal Lathe w/Milling, Y-Axis & Sub Spindle, New in 2013.
8" & 6" Chucks.
LNS Quick Load Short Magazine Barfeed.
Fanuc 31i Control.
Parts Catcher.
General Specifications:
Swing Over Bed 30.7"
Turning Diameter 15.9"
Turning Length 20.47"
Distance Between Spindles 23.2"
Chuck Size 1 8"
Spindle Nose 1 A2 - 6
Spindle Bore Diameter 1 3"
Bar Capacity 1 2.6"
Spindle Speeds 1 4,500 RPM
Spindle Horsepower 1 25 hp
Chuck Size 2 6"
Spindle Nose 2 A2 - 5
Spindle Bore Diameter 2 2.44"
Bar Capacity 2 2"
Spindle Speeds 2 4,500 RPM
X1 - Axis Travel 10.2"
Z1 - Axis Travel 23.2"
Y1 - Axis Travel 4.13"
C - Axis Indexing 1 0.001
C - Axis Indexing 2 0.001

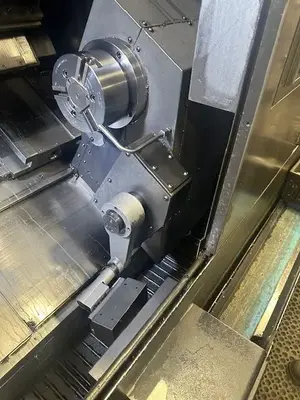

W - Axis Travel Sub Spindle 23.2"
Rapid Traverse Rate - X1 1181 ipm
Rapid Traverse Rate - Z1 1181 ipm
Rapid Traverse Rate - Y1 787 ipm

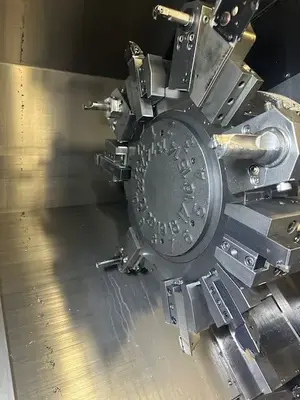

Turret Tool Positions 1 24 station
Turret Rotary Tool Speeds 1 5,000 RPM
Turret Rotary Tool Horse Power 1 7.5 hp
Machine Weight 13,500 lb
Control CNC (FANUC 31I-A CNC COLOR CONTROL)

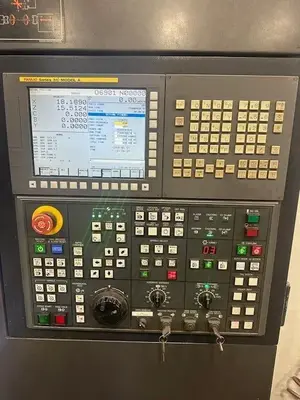

FANUC 31I CNC COLOR CONTROL
MANUAL GUIDE EYE CONVERSATIONAL PROGRAMMING
TURBO SIDE DISCHARGE CHIP CONVEYOR
ALL AVAILABLE MANUALS
BARFEED INTERFACE
AUTO PARTS CATCHER
PARTS CONVEYOR

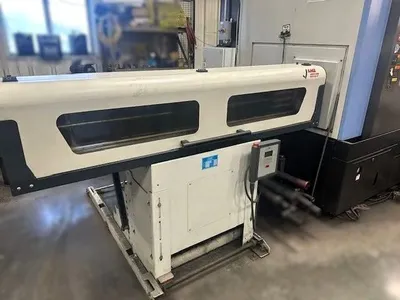

LNS QUICK LOAD SERVER S-2 SHORT MAGAZINE BAR FEED SYSTEM
SPINDLE LINERS
TOOL SETTER
AUTO DOOR
(3) ROTARY HEADS BMT 55

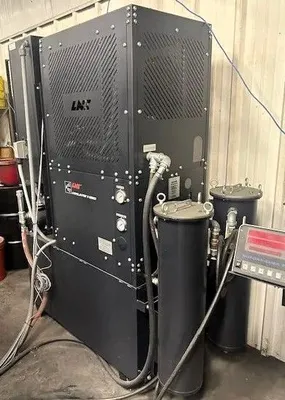

LNS CHIP BLASTER V SERIES HIGH PRESSURE THROUGH COOLANT
8" 3 JAW HYDRAULIC CHUCK (LEFT)

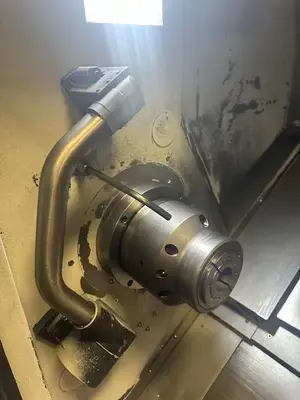

6" HYDRAULIC CHUCK (RIGHT) W/WORK PIECE EJECTOR
DOOSAN TOOL LOAD MONITORING
EMBEDDED ETHERNET
RIGID TAPPING
HELICAL & CYLINDRICAL INTERPOLATION
THREAD CUTTING RETRACT
