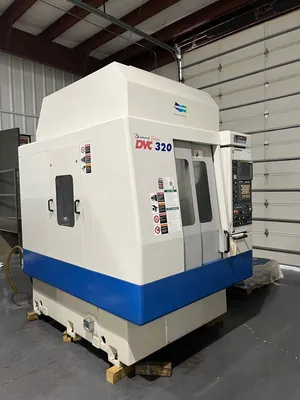

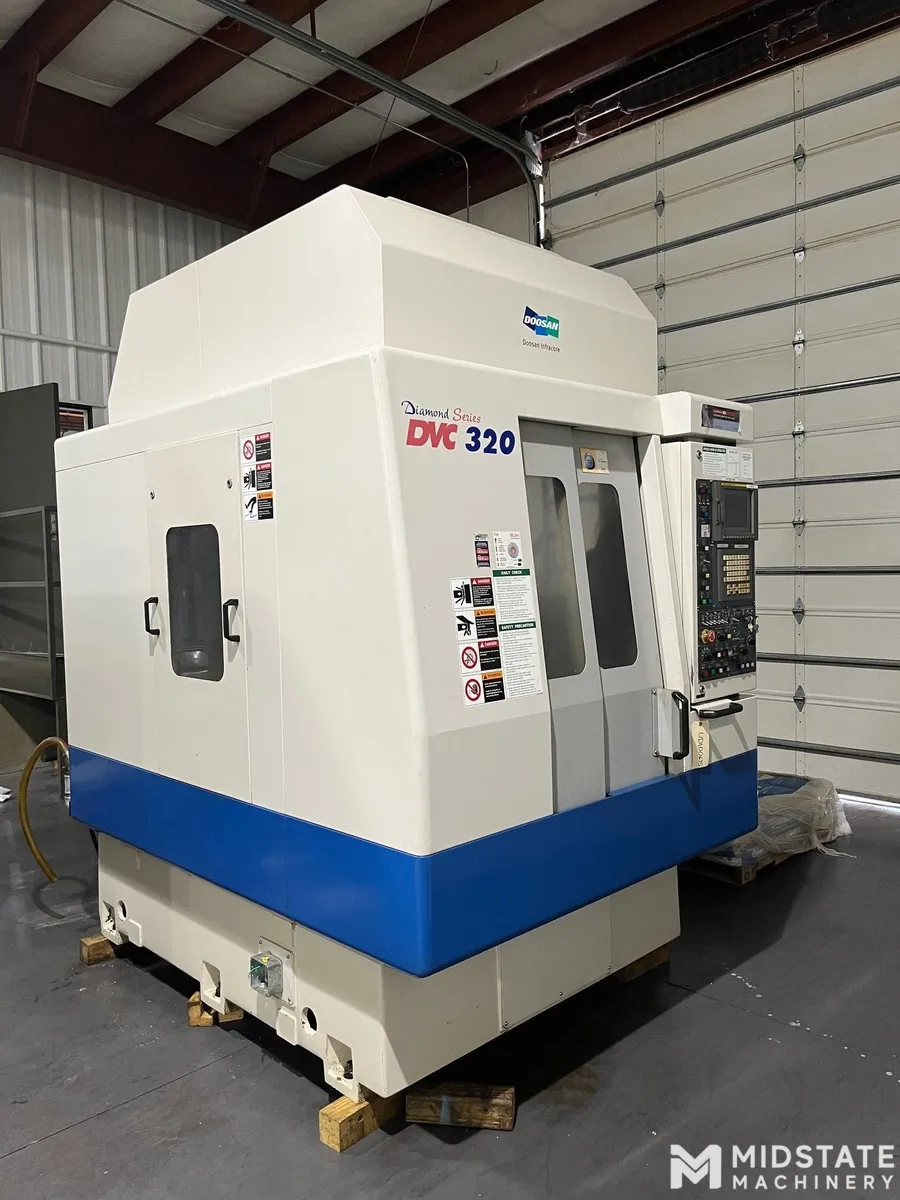

Daewoo DVC 320 Drilling & Tapping Center, New in 2002

General Specifications:

CAPACITY:
X-axis travel: 20.4 inches
Y-axis travel: 12.6 inches
Z-axis travel: 13.7 inches
Table type Dual type pallet changer
Table indexing: 180 degrees
Table Size: 23.6” x 14.17” per side
Allowable table load: 330 pounds per pallet
Table T - slots: (3) – 3.93” x .55”

SPINDLE:
Spindle nose to tabletop: 5.9 - 19.6 inches
Spindle center to column: 18.5 inches
Spindle taper: ISO No. 30
Spindle speed: 10,000 RPM
AC spindle motor (30 minutes): 10 hp
Spindle torque (30 minutes): 35 ft-lbs.

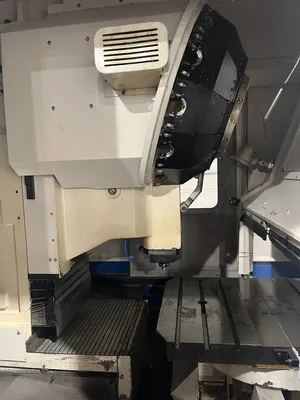

AUTOMATIC TOOL CHANGER:
Number of tools: 14
Tool shank: BT 30
Maximum tool diameter: 3.15 inches
Maximum tool length: 7.87 inches
Maximum tool weight: 6.2 pounds
Tool to tool change time: 1.2 sec.
Chip to chip change time: 2.2 sec.

MOTION:
X and Y axis rapid traverse rate: 1,417 IPM
Z axis rapid traverse rate: 1,890 IPM
Maximum cutting feed rate: 787 IPM
Least command increment: .0001”
X, Y & Z-axis servomotors: 1.6 hp

GENERAL:
Machine Dimensions: 114" x 67" x 91"
Machine Weight: 11,000 pounds
Voltage required: 220 volt / 3 phase
KVA required: 20
