Equipment
Machining Centers
Vertical Machining Centers
HAAS TM-1 Vertical Machining Center, New in 2013

HAAS TM-1 Vertical Machining Center, New in 2013

Have one to sell?
800-289-3519
Sales@MidstateMach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
TM-1
Year:
2013
Stock #:
4317
Status:
For Sale

Description

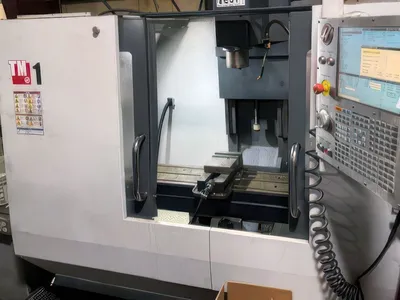

HAAS TM-1 Vertical Machining Center, New in 2013.

X-Axis30"762 mm
Y-Axis12"304.8 mm
Z-Axis16"406.4 mm
Power7.5 hp5.6 kW
RPM4,000 RPM4,000 RPM
# ATC1010
Taper4040
Table-W10.5"266.7 mm
Table-L47.75"1,212.8 mm

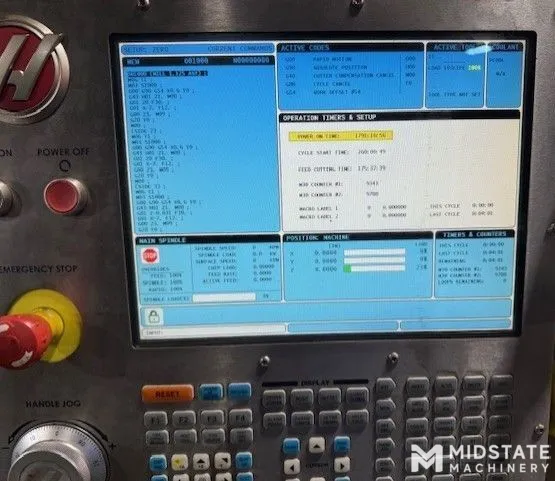

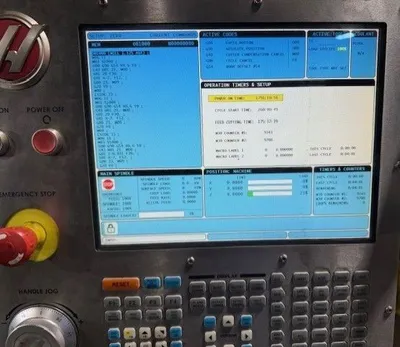

ControlCNC (HAAS CNC)CNC (HAAS CNC)
Dimensions112" x 80" x 100"112" x 80" x 100"
Weight5,200 lbs5,200 lbs

General Specifications:
X Axis Travel: 30"
Y Axis Travel: 12"
Z Axis Travel: 16"
Rapid Rate X Axis: 200 IPM
Rapid Rate Y Axis: 200 IPM
Rapid Rate Z Axis: 200 IPM
Max Table Load: 1,000 LBS
Spindle Motor: 7.5 HP
Spindle Speed: 4,000 RPM
Spindle Taper: #40
Tool Changer: 10 ATC
Table Size: 47.5" x 10.5"
Weight: 5,200 LBS
