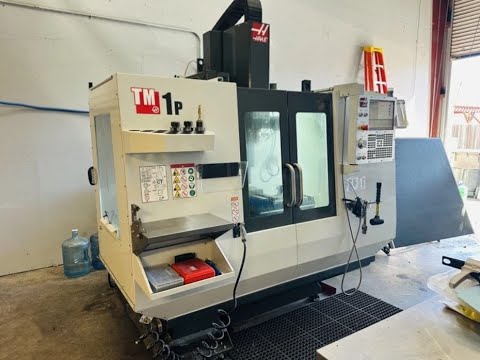

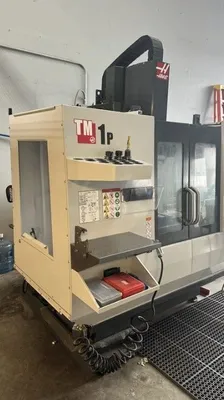

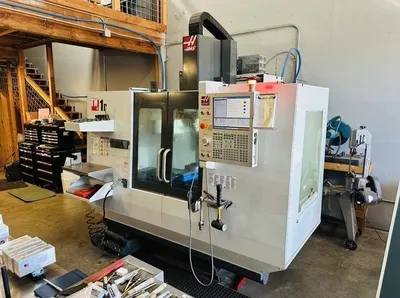

Haas TM-1P Vertical Machining Center, New in 2019

Haas TM-1P Vertical Machining Center, New in 2019

Have one to sell?
800-289-3519
Sales@MidstateMach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
TM-1P
Year:
2019
Stock #:
4313
Status:
For Sale
Country:
United States

Description

Haas TM-1P Vertical Machining Center, New in 2019

X-Axis30"762 mm
Y-Axis12"304.8 mm
Z-Axis16"406.4 mm
Power7.5 hp5.6 kW
RPM6,000 RPM6,000 RPM
# ATC1010
TaperCT or BT 40CT or BT 40
Table-W10.5"266.7 mm
Table-L47.75"1,212.8 mm
ControlCNC (Haas)CNC (Haas)
Dimensions96" x 72" x 103"96" x 72" x 103"
Weight5,000 lbs5,000 lbs

General Specifications:
Table Size: 47.75" x 10.5"
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 16″
Spindle Motor: 7.5HP / 220
Spindle RPM: 6,000 RPM
Spindle Taper: CT40
Spindle Nose to Table (Min-Max): 4" - 20"
Rapid Feedrates: 400 IPM

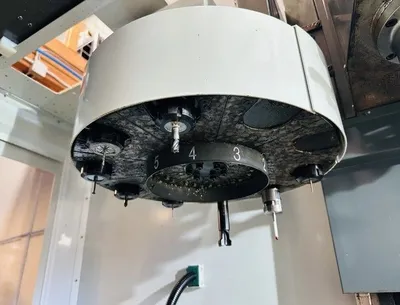

Tool Positions: 10
Tool Diameter: 3.5"
Tool Weight: 12 lb

Electrics: 220V / 3PH

Haas CNC Control
Probing
Programmable Coolant
Work Light
1GB
WIFI
HAAS Connect
Convenience Package

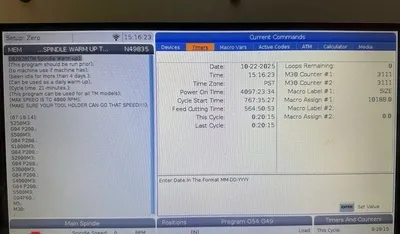

HOURS:
Power On Time: 4097 Hours
Cycle Start Time: 767
Feed Cutting Time: 564
