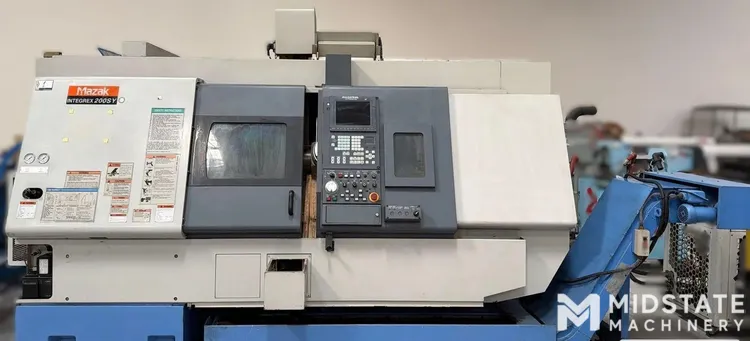

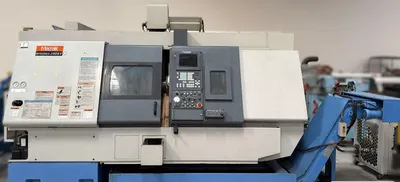

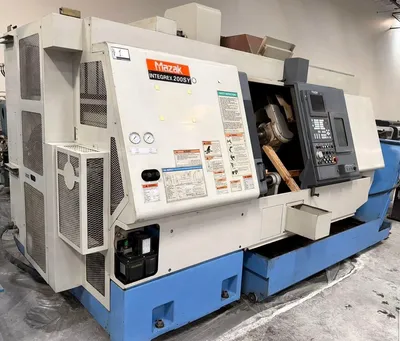

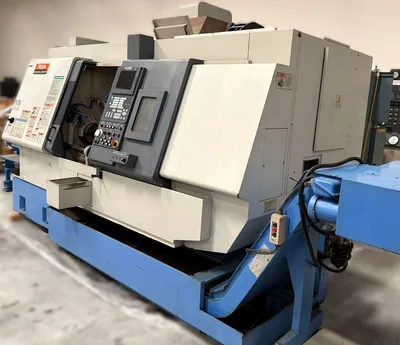

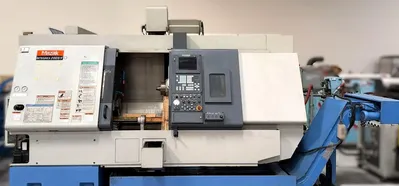

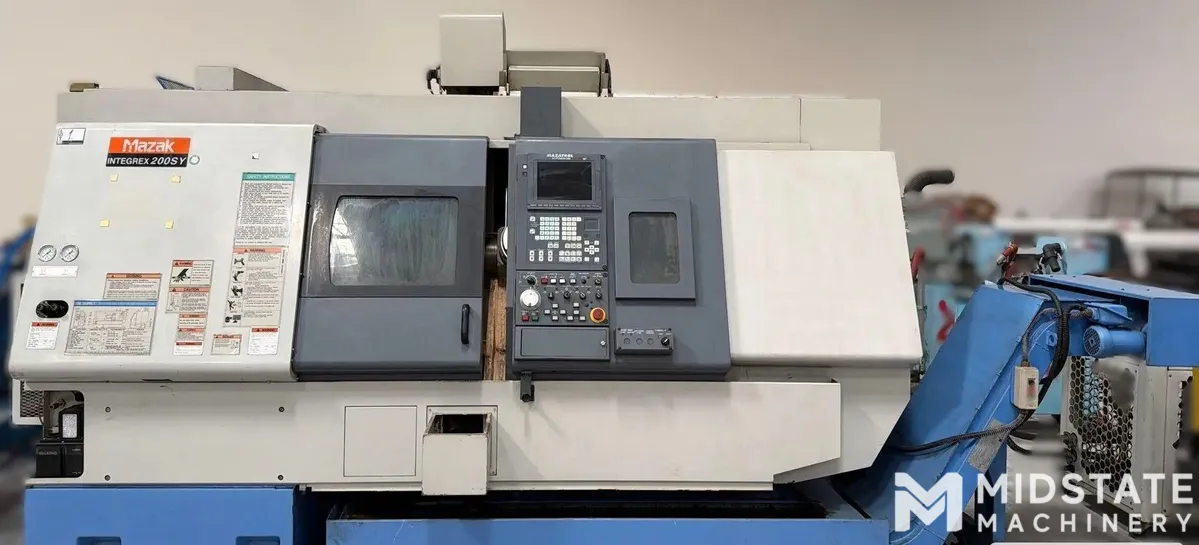

MAZAK INTEGREX 200SY CNC Turning Center, New in 2000
Have one to sell?
ConditionUsed
1 available
MAZAK INTEGREX 200SY CNC Turning Center, New in 2000.
Mazatrol 640MT CNC Control.
B-Axis Sub.
Tool Setter.

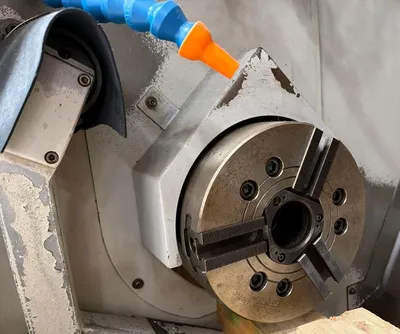

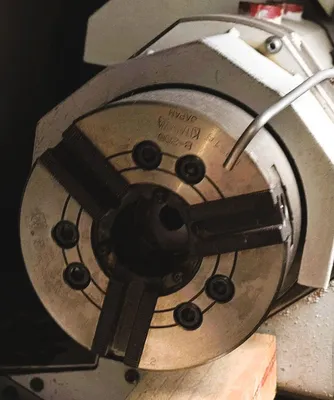

Kitagawa B-206 & B-208 Hydraulic Chuck.
Chip Conveyor.
General Specifications:
Swing 21.25"
Max. Turning Length 40"
Max. Turning Diameter 21.25"
X-Axis 20.87"
Y-Axis 5.5"
Z-Axis 42"
Rapid Traverse X-Axis 1181 ipm
Rapid Traverse Y-Axis 590 ipm
Rapid Traverse Z-Axis 1299 ipm

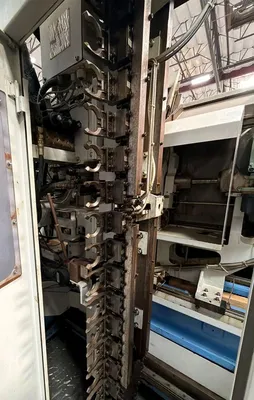

ATC 40
Spindle Taper A2-6
Chuck Size 10"
Bar Capacity 2"
Spindle Bore 2.4 in
Power 30 hp
Max RPM 5,000 RPM
Tailstock No
Sub Spindle Yes
Sub Spindle Power 10.06 hp
Sub Spindle Max RPM 5000 rpm
Mazatrol 640MT CNC Control
B-Axis Sub
Tool Setter
Kitagawa B-208 Hydraulic Chuck
Kitagawa B-206 Hydraulic Chuck
Chip Conveyor
