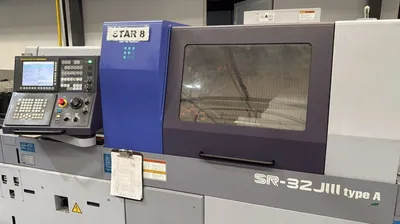

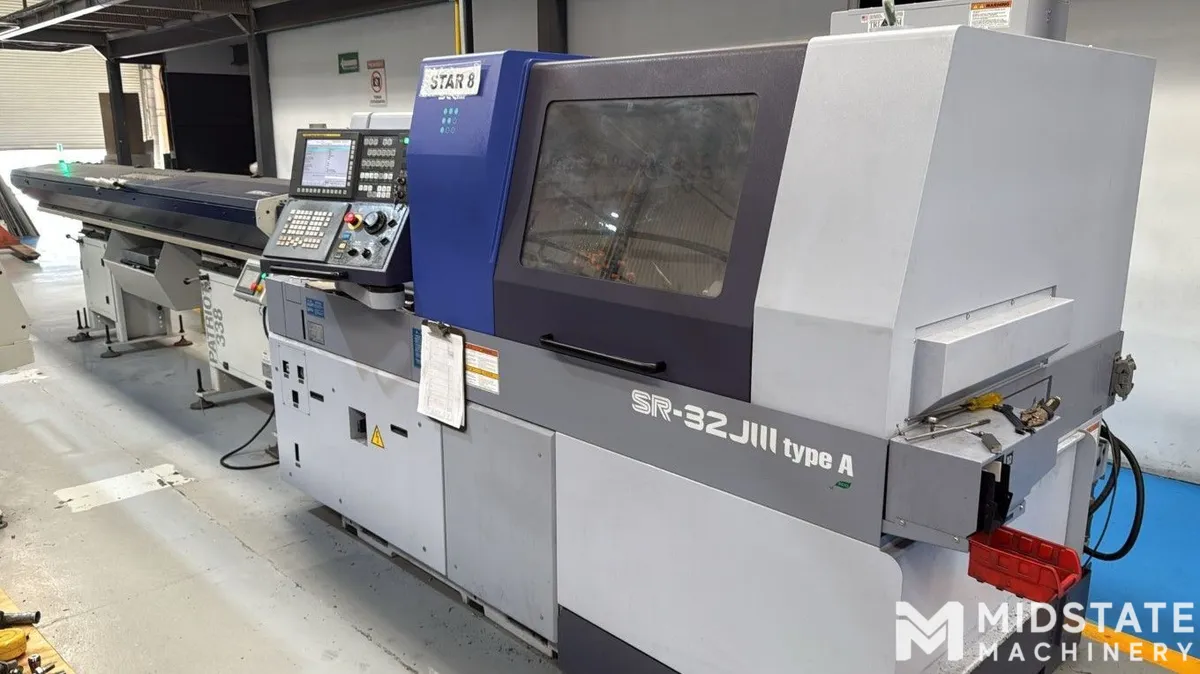

Star SR-32JIII Type A CNC Swiss Lathe, New in 2023

General Specifications:
Machining Diameter: 1-1/4"

Headstock Stroke
-Standard: 12-19/32"
-RMGB (Removable Magic Guide Bushing) Type: 11-9/32"
-NGB (Non-Guide Bushing) Type: 3-5/32"

Tools
Number of Tools: 6
Tool Shank: 0.62"

5-Spindle Sleeve Holder
-Number of Tools (Front/Rear): 5
-Drilling Capability: 33/64"
-Tapping Capability: M12xP1.75

Power Driven Attachment
Number of Tools
-Cross Milling 3 Tools (ER20) + Cartridge Type 2 Positions
-Cross Milling 4 Tools (ER16) + Cartridge Type 2 Positions
-Cross Milling 6 Tools (ER16)
-Drilling Capability: 25/64"
-Tapping Capability: M8xP1.25
-Cross Milling Speed: 6,000 RPM
-Cartridge Type Tool Speed: 8,000 RPM
-Drive Motor: 4 HP

Rapid Feed Rate (X1, X2, Y1, Z1, Z2): 1377 IPM
Main Spindle Indexing: C-Axis
Main Spindle Speed: 8,000 RPM
Main Spindle Motor: 15 HP

Backworking Specs
Chucking Diameter: 1-1/4"
Length for Front Ejection: 4-59/64"
Parts Projection Length: 1-49/64"
Number of Tools: 6
Drilling Capability (Stationary/Power Driven): 33/64" / 5/16"
Tapping Capability (Stationary/Power Driven): M10xP1.5 / M6xP1.0
Spindle Speed: 6,000 RPM
Drive Motor: 1.6 HP
Sub-Spindle Indexing: C-Axis
Sub Spindle Speed: 8,000 RPM
Sub Spindle Motor: 7.3 HP

Machine Dimensions: 105" x 52" x 70"
Machine Weight: 9,038 lbs
