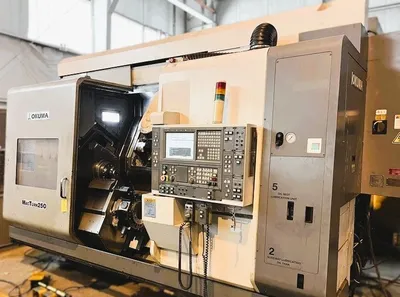

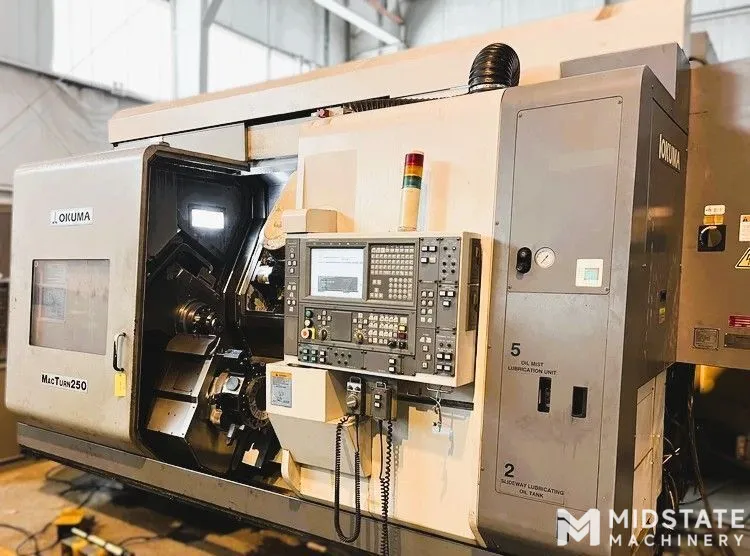

OKUMA MACTURN 250BB-2S/1000 Big-Bore 5-Axis CNC Turning Center, New in 2005

General Specifications:
Spindle Bore Diameter 3.15"
Bar Diameter Capacity 2.75"
Swing Over Bed, Maximum 21.65"
Swing Over Saddle 20.87"
Work Diameter, Maximum 21.65"
Work Length, Maximum 39.37"
X-Axis Travel, XA Turret 18.70"
X-Axis Travel, XB Turret 6.30"
Z-Axis Travel, ZA Turret 40.06"
Z-Axis Travel, ZB Turret 45.47"
Y-Axis Range 160 (+80 to -80)
Y-Axis Range 6.30 (+3.15 to -3.15)
C-Axis Rotation, Range 360-DEGREES
C-Axis Rotary Control Angle 0.001-DEGREES
B-Axis Angle 210-DEGREES
B-Axis Indexing 1-DEGREE
Main Spindle Speeds, Range to 5000 RPM
Milling Spindle Speeds, Range to 6000 RPM
Tailstock Quill Diameter 3.54"
Tailstock Bore Taper 5 MT
Tailstock Quill Travel 5.91"
Main Spindle Horsepower 30/20 HP
Milling Spindle Horsepower 15/10/7.5 HP
Overall Dimensions, L x W 170" x 100"
Overall Height 114"
Weight Approximately 25300 LBS
