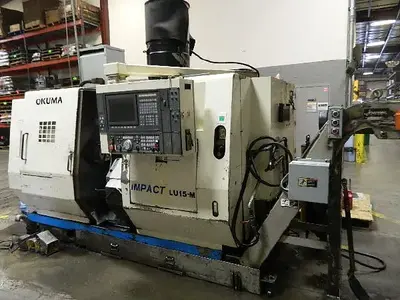

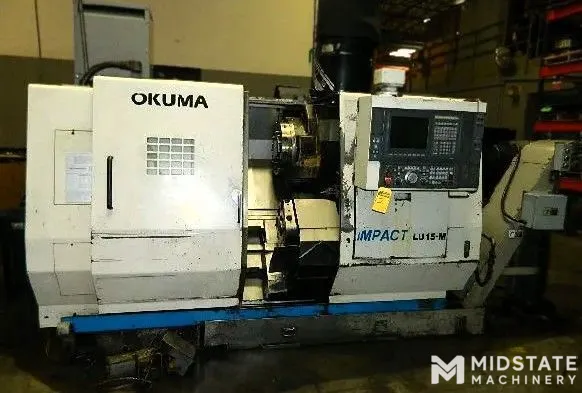

OKUMA IMPACT LU-15M 5-Axis Twin Turret CNC Turning Center, New in 1997
Have one to sell?
ConditionUsed
1 available
OKUMA IMPACT LU-15M 5-Axis Twin Turret CNC Turning Center, New in 1997.
Live Milling.
21" x 24".
General Specifications:
Swing Over Bed 20.87"
Swing Over Carriage 14.96"
Swing Over Cross Slide 12.99"
Maximum Turning Diameter 10.62"
Maximum Turning Length 23.62"
X-Axis Travel (Upper/Lower) 10.24"/5.51"
Z-Axis Travel (Upper/Lower) 25.20"/24.21"
Headstock & Main Spdl Nose JIS-A2-8
Spindle Bore Diameter 3.15"
Spindle Speed Range to 4500 RPM
X-Axis Rapid Traverse Speed 590 IPM
Z-Axis Rapid Traverse Speed 787 IPM
X-Axis Cut Fdrates (IPR) 0.0001"-40000
Z-Axis Cut Fdrates (IPR) 0.0001"-40000
Motor, Horsepower 29.5 HP
Floor Space Req. 156" x 83" x 76"
Weight Approximately 12000 LBS
8" 3-JAW CHUCK

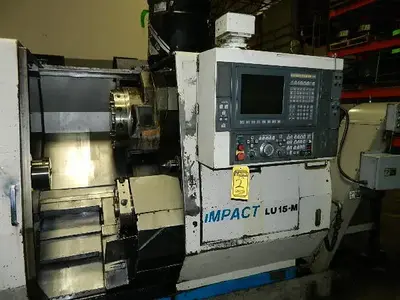

OKUMA OSP7000L CNC CONTROL

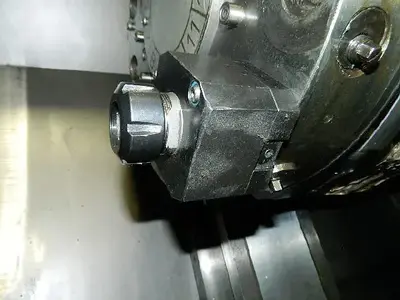

LIVE MILLING CAPABILITIES

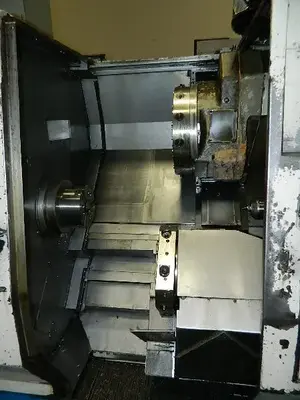

12 POSITION UPPER & 8 POSITION LOWER TURRET
(DOES NOT HAVE THE CHIP CONVEYOR) -

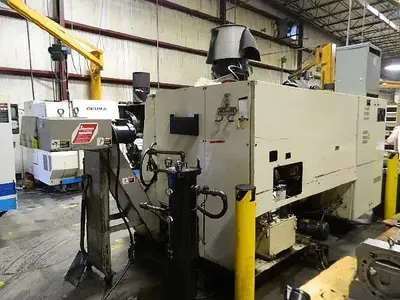

COOLANT TANK
Tailstock
OKUMA IMPACT LU-15M 5-Axis Twin Turret CNC Turning Center, New in 1997.
Live Milling.
21" x 24".
Imperial
| Swing | 20.87" |
| Machining Length | 23.62" |
| # Axis | 2 |
| Chuck Size | 8" |
| Bar Capacity | 3.15" |
| Power | 30 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 10.62" |
| Tailstock | Yes |
| Live Tooling | Yes |
| Sub Spindle | No |
| Control | CNC (Okuma OSP7000L) |
| Dimensions | 156" x 83" x 76" |
| Weight | 1200 |
General Specifications:
Swing Over Bed 20.87"
Swing Over Carriage 14.96"
Swing Over Cross Slide 12.99"
Maximum Turning Diameter 10.62"
Maximum Turning Length 23.62"
X-Axis Travel (Upper/Lower) 10.24"/5.51"
Z-Axis Travel (Upper/Lower) 25.20"/24.21"
Headstock & Main Spdl Nose JIS-A2-8
Spindle Bore Diameter 3.15"
Spindle Speed Range to 4500 RPM
X-Axis Rapid Traverse Speed 590 IPM
Z-Axis Rapid Traverse Speed 787 IPM
X-Axis Cut Fdrates (IPR) 0.0001"-40000
Z-Axis Cut Fdrates (IPR) 0.0001"-40000
Motor, Horsepower 29.5 HP
Floor Space Req. 156" x 83" x 76"
Weight Approximately 12000 LBS
8" 3-JAW CHUCK
OKUMA OSP7000L CNC CONTROL
LIVE MILLING CAPABILITIES
12 POSITION UPPER & 8 POSITION LOWER TURRET
(DOES NOT HAVE THE CHIP CONVEYOR) -
COOLANT TANK
Tailstock
