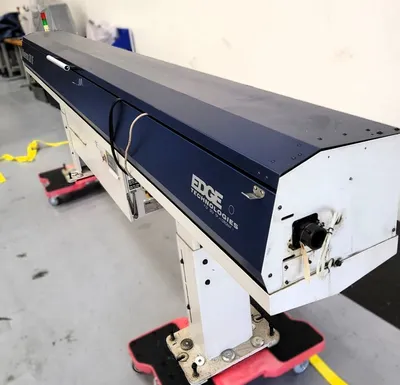

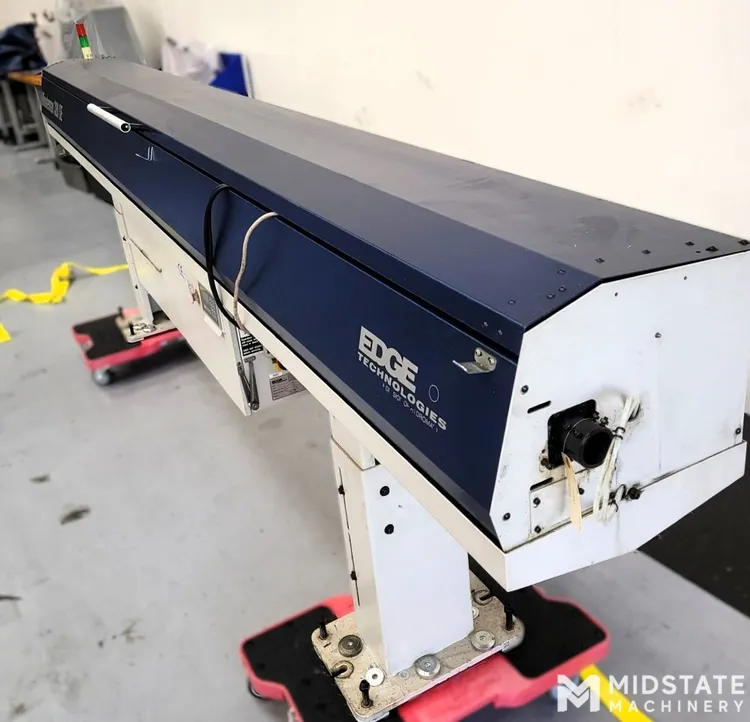

EDGE MINUTEMAN 320 SE, New in 2010

General Specifications:
Bar Diameter Capacity:
Without Prep 3mm - 21mm (0.118" - 0.8270)
With Prep 3mm - 26mm (0.118" - 1.062")
Maximum Bar Length: 12' 5"
Maximum Remnant Length: 420mm (16.5")
Magazine Rack Capacity: 10"
Bar Loading Cycle Time: 25 Seconds for 12' bar
Material Straightness Specification: .007TIR/foot of material
(V Blocks, 3 points equidistant)
Feed Force (pusher torque): max 450 N. adjustable
Forward Feed Rate: 1400 inches/min max, adjustable
Return Feed Rate: 2360 inches/min max, adjustable
Power Consumption: 1.5 kW
Operating Voltage: 230/60 Hz - 3 phase
Control Voltage: 24V DC
Oil Capacity: 46 Liters (12 gallons)
Oil Viscosity: ISO 100 cST
Compressed AirSupply: 6 bar (90 psi)
Compressed Air Consumption: approx 8 liters/loading cycle

Weight (approx): 1320 lbs
Dimensions (approx): 171" x 24" x 52"
