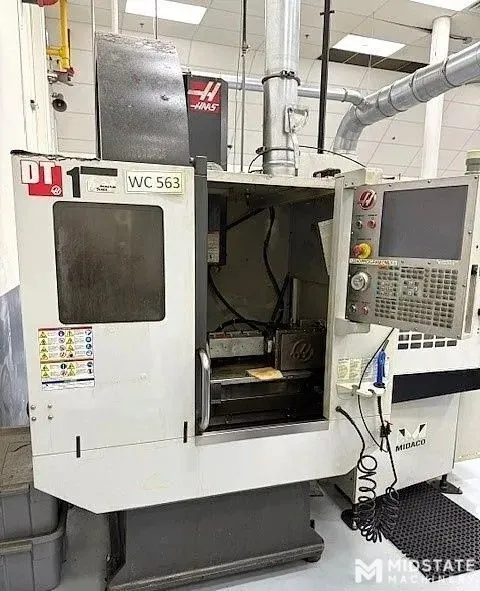

HAAS DT-1 CNC Vertical Machining Center, New in 2012
Have one to sell?
ConditionUsed
1 available
HAAS DT-1 CNC Vertical Machining Center, New in 2012
Dual Pallet Changer.
(2) Rotary Tables.
Independent Controllers
General Specifications:
TABLE LENGTH 26"
TABLE WIDTH 15"
TABLE CAPACITY 250 lb
X-AXIS TRAVEL 20"
Y-AXIS TRAVEL 16"
Z-AXIS TRAVEL 15.5"
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 15 hp
SPINDLE TAPER BT 30
TOOL CAPACITY (ATC) 20
RAPID TRAVERSE - X AXIS 2,400 in/min.
RAPID TRAVERSE - Z-AXIS 2,400 in/min.
CUTTING FEEDRATE 1200 ipm
ROTARY OR TRUNNION Yes
APPROX MACHINE DIMENSIONS 107"W x 124"L W/COOLANT TANK X 103" H
ADT-1SD MIDACO AUTOMATIC DUAL PALLET CHANGER (MIDACO 16SDS)

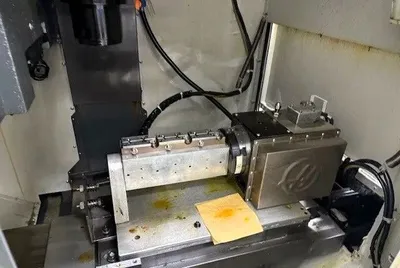

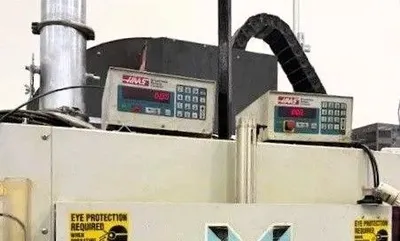

(2) HAAS HRT-160SP ROTARY TABLES, WITH INDEPENDENT CONTROLS
(2) HAAS TOOLING BLOCK SYSTEMS (12" X 4") INCLUDES "A-FRAME" SUPPORT
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
** PROBE TOOL AND TOUCH SETTER REQUIRED (NOT INCLUDED)
SIDE-MOUNT TOOL CHANGER, 20 POSITION

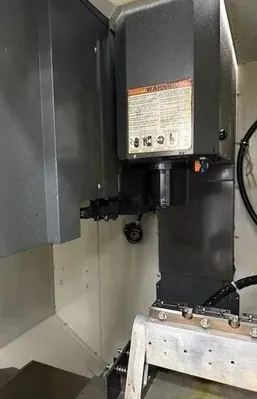

12,000 RPM SPINDLE
USB PORT
COOLANT SYSTEM
M19 SPINDLE ORIENT.
CHIP AUGERS, DUAL SYSTEM FOR REAR EXIT
INTUITIVE PROGRAMMING SYSTEM (IPS), QUICK CODE, DNC, ADVANCED TOOL MANAGEMENT
RIGID TAPPING
MACROS
