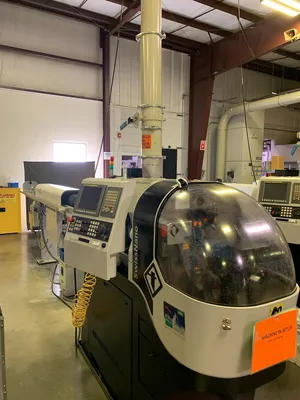

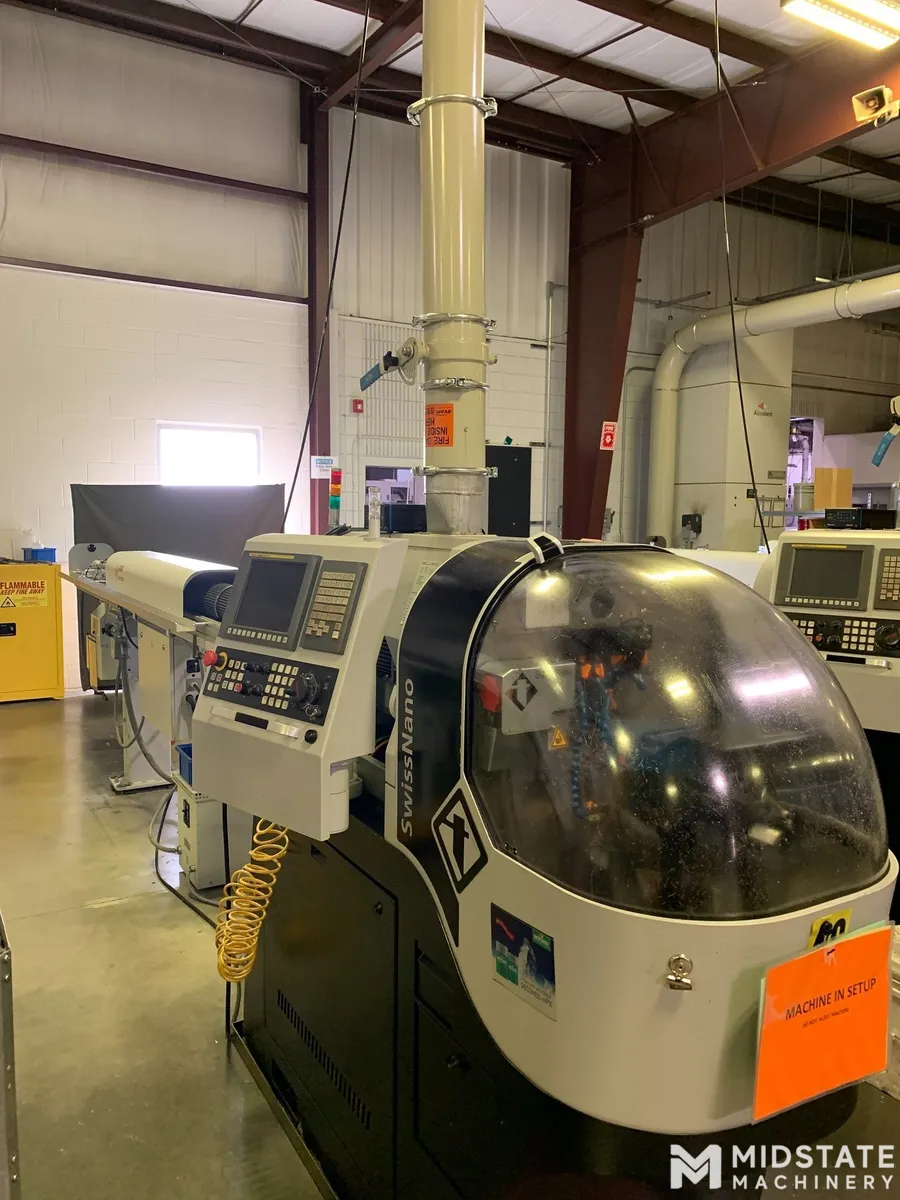

Tornos Swiss Nano 4/16 CNC Swiss Lathe, New in 2015

General Specifications:

Main Spindle (Z1/S1/C1)
Bar Capacity: 0.15" (4mm)
Standard Workpiece Length w/ Fixed Guide Bush and Synchronous Rotating Guide Bush: 0.98" (28mm)
Spindle Speed: 16,000 RPM
Spindle Power: 2 hp (1.5 kW)
Torque: 0.73 ft lb (1.0 Nm)

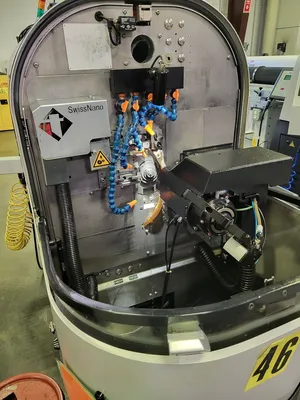

Guide Bush Holder (X1/Y1/S11)
Number of Tool Positions on Guide Bush: 7
Turning Tool Section: 8x8
Rotating Tool Speed: 8,000 RPM
Rotating Tool Power: 0.67 hp (0.5 kW)
Steel Drilling/Rotating Tool Capacity: 2.5, f=0.15 mm/t
Rotating Tool/Steel Tapping Capacity: M3x5

End Attachment and Sub Spindle (X4/Y4/Z4/S4)
Number of Tool Positions: 3 x 0.62" (16mm) Diameter
Bar Capacity: 0.15" (4mm)
Insertion Length of Workpiece into Sub Spindle: 1.02" (26mm)
Sub Spindle Speed: 16,000 RPM
Sub Spindle Power: 2 hp (1.5 kW)
Torque: 0.73 ft lb (1.0 Nm)
Sub Spindle Ejector Stroke: 1" (25mm)
Steel Drilling/Rotating Tool Capacity: 2.5, f=0.15 mm/t
Rotating Tool/Steel Tapping Capacity: M3x5

Counter Operation
Number of Tool Positions: 2 x 16mm Diameter
Positions for Rotating Tools: 2

Total Number of Machine Tools: 12

Machine Dimensions: 70" x 25" x 62"

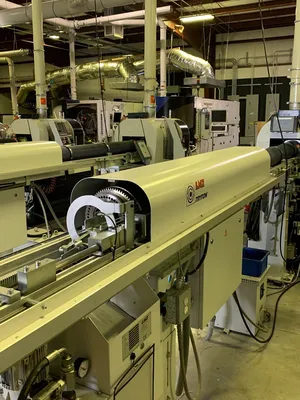

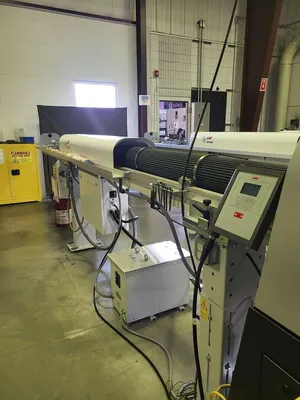

-w/ LNS Tryton Barfeed: 232" x 25" x 62"
Machine Weight: 1,653 lbs
