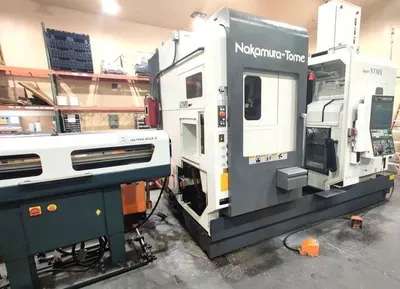

NAKAMURA-TOME SUPER NTMX Multi-Axis CNC Lathe, New in 2013
Have one to sell?
ConditionUsed
1 available

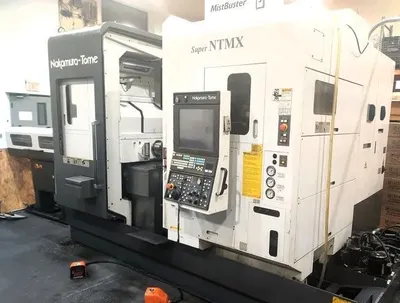

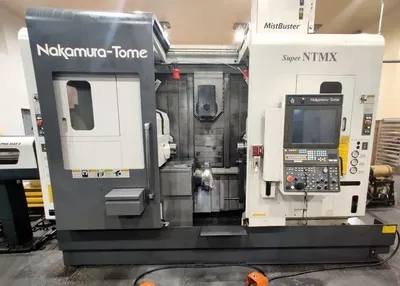

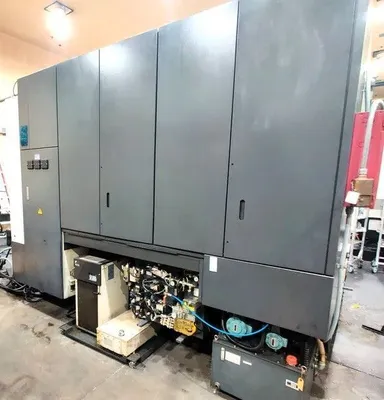

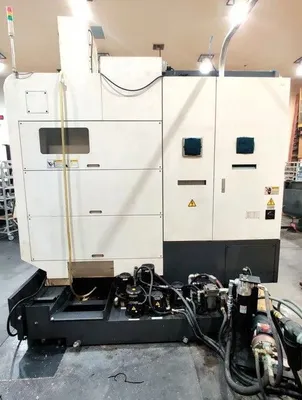

NAKAMURA-TOME SUPER NTMX Multi-Axis CNC Lathe, New in 2013.
9-Axis
B/C/Y-Axis Live Milling
Sub Spindle
Twin Turret
1,000 PSI Thru-Spindle Coolant

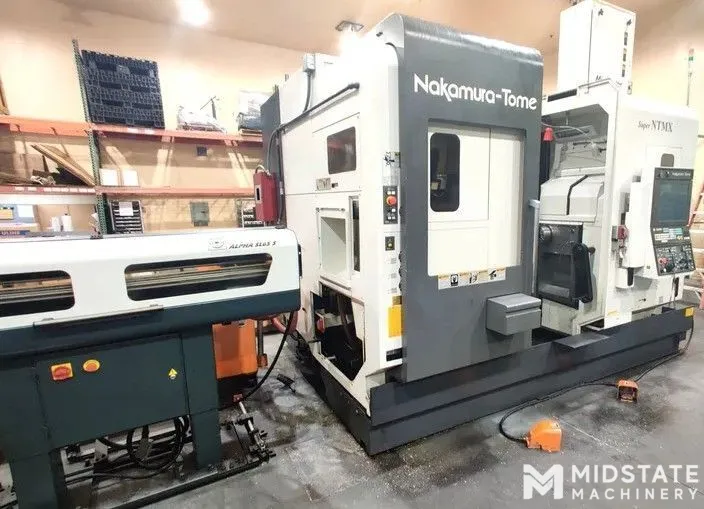

LNS Barfeed.
General Specifications:
SWING OVER CROSS SLIDE 8.07"
MAX CUTTING DIAMETER 7.87"
MAX CUTTING LENGTH 30"
DISTANCE BETWEEN CENTERS 38.58"
X-AXIS TRAVEL 22.44"
Y-AXIS Yes
Y-AXIS TRAVEL 7.87" (±3.93")
Z-AXIS TRAVEL 51.1"
CHUCK SIZE 7"
BAR CAPACITY 2"
SPINDLE MOTOR 15 hp
SPINDLE SPEED 5,000 RPM
SUB SPINDLE Yes
SUB SPINDLE - CHUCK SIZE 7"
SUB SPINDLE - BAR CAPACITY 2"
SUB SPINDLE - SPINDLE MOTOR 15 hp
SUB SPINDLE - SPINDLE SPEED 5,000 RPM
B-AXIS MILLING SPEED 12,000 RPM
B-AXIS ROTATION 190° (±95°)

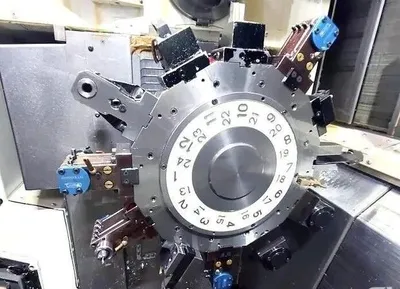

TURRET CAPACITY 24
LIVE MILLING Yes
LIVE MILLING SPEED 12,000 RPM
TURRET 2 CAPACITY 24
TURRET 2 - X-AXIS TRAVEL 5.13"
TURRET 2 - Z-AXIS TRAVEL 25.9"

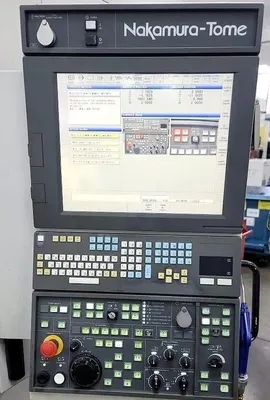

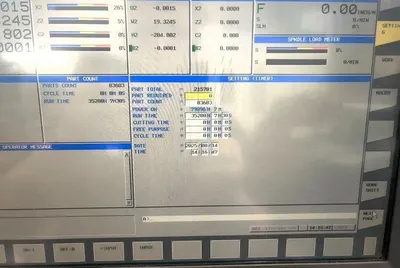

FANUC 31i-A5 2PATH CNC CONTROL

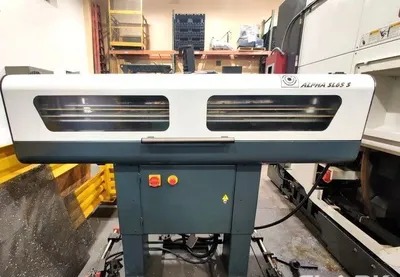

LNS ALPHA SL65-S BAR FEEDER (2014)
9-CONTROLLED AXES

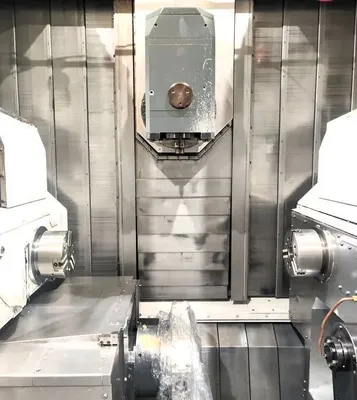

5-AXES SIMULTANEOUS MACHINING (UPPER X1, Z1, C1[C2], Y, B1)
4-AXES (LOWER X2, Z2, C2[C1], B2)
SIMULTANEOUS TURNING UPPER & LOWER TURRETS
48 ATC (24 ATC MAGAZINE UPPER/24 ATC MAGAZINE LOWER)
THRU-SPINDLE COOLANT
HIGH PRESSURE COOLANT (1,000 PSI)
RENISHAW NC4 LASER TOOL SETTER (SETTING UPPER TOOLS)
SRP3 TOOL PRESETTER (SETTING LOWER TOOLS)
PART CONVEYOR
PARTS CATCHER
SPINDLE CHILLER
MIST BUSTER MIST COLLECTOR
FIRE SUPPRESSION SYSTEM
INCLUDED TOOLING:
LOWER TURRET (14 HOLDERS):
(2) DRIVEN 90 DEGREE ER16 HOLDERS
(5) BORING BAR HOLDERS 1” DIA
(2) BORING BAR HOLDERS 1.25 DIA
(5) STICK TOOLING BLOCK
UPPER TURRET (63 HOLDERS):
(15) C4 EXTENSIONS
(6) ER16 HOLDERS (ULTRA-HIGH-PRECISION)
(15) ER20 HOLDERS
(10) ER32 HOLDERS (LYNDEX NIKKEN)
(4) INTERNAL BORING TOOL HOLDERS (PH HORN)
(1) PRECISION BORING HEAD
(2) CUTOFF BLADE HOLDER
(2) OD TURNING HOLDERS
(1) SIDE-LOC HOLDER
(1) BORING BAR HOLDER
(6) SHRINK FIT HOLDERS
** MACHINE CUTTING PRIMARILY ALUMINUM
