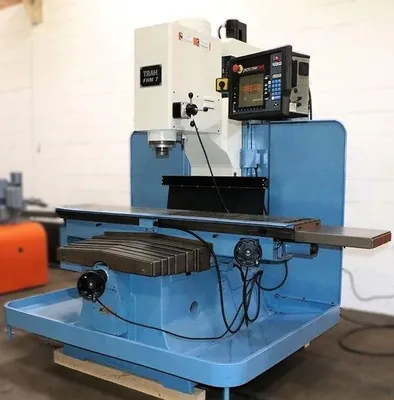

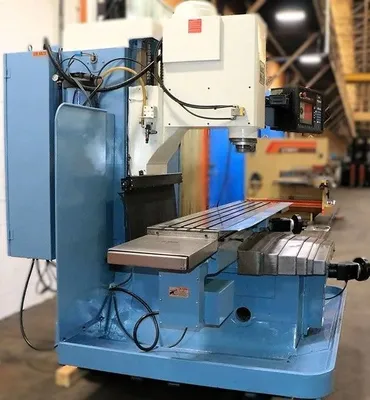

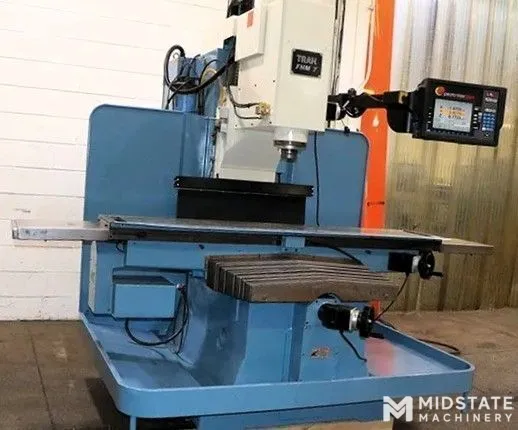

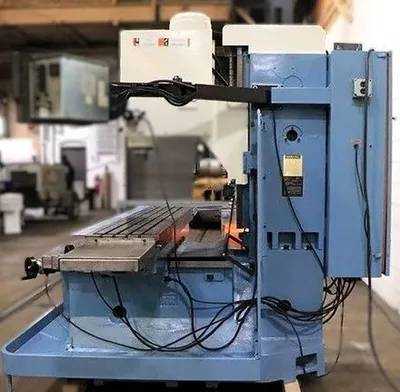

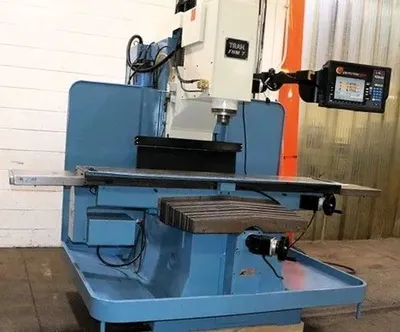

SOUTHWESTERN INDUSTRIES TRAK FHM7 Vertical Mill, New in 2009
Have one to sell?
ConditionUsed
1 available
SOUTHWESTERN INDUSTRIES TRAK FHM7 Vertical Mill, New in 2009.
60" X 23" X 20.5" Travels.
PROTO-TRAK SMX Control.
Windows OS, advanced features, 10.4" LCD.
General Specifications:
TABLE WIDTH 14"
TABLE LENGTH 76"
MAX WEIGHT OF WORKPIECE 2,200 lb
TABLE TRAVEL (X-AXIS) 60"
SADDLE TRAVEL (Y-AXIS) 23"
HEAD TRAVEL (Z-AXIS) 20.5"

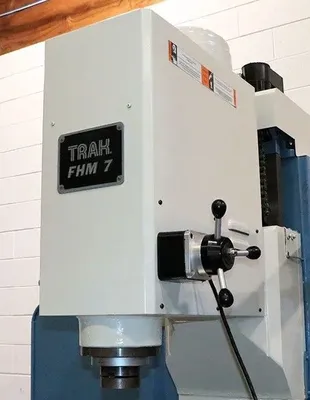

QUILL DIAMETER 5.06"
SPINDLE MOTOR 7.5 hp
SPINDLE SPEED 5,000 RPM
SPINDLE TAPER #40
Weight 7,975 LBS

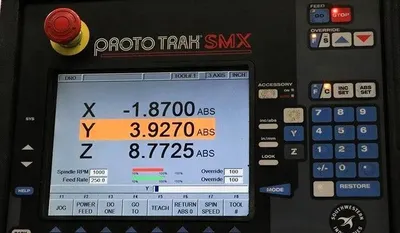

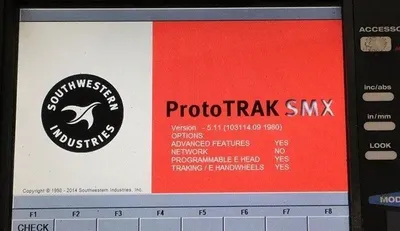

PROTO-TRAK MODEL: SMX CONTROL,
WINDOWS OPERATING SYSTEM,
ADVANCED FEATURES, PROGRAMMABLE E HEAD, TRAKing
10.4" LCD SCREEN, RS232 PORT& RJ45 CONNECTOR,
AUTO GEOMETRY ENGINE, LINEAR & CIRCULAR INTERPOLATION,
TWO OR THREE AXIS, ROTATE OR MIRROR, (2) USB PORTS,
TRAKing/ELECTRONIC HANDWHEELS
BALL SCREWS & AC SERVO MOTORS FOR X,Y & Z AXES
YASKAWA SPINDLE DRIVE
TORQUE-RITE POWER DRAW BAR
HARDENED & GROUND BOX WAYS
AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM w/CHIP PAN & SPLASH SHIELD
7.5 HORSEPOWER SPINDLE MOTOR & INVERTER

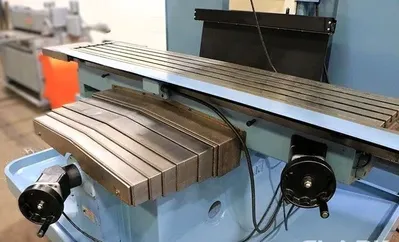

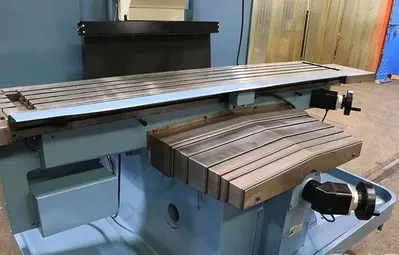

MACHINE TABLE REGROUND & NEW TURCITE PUT ON MARCH 2025
