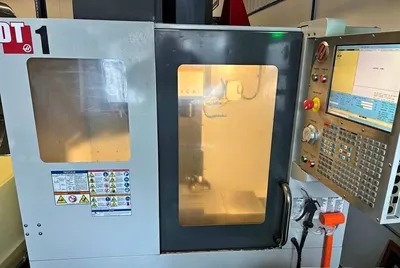

HAAS DT-1 CNC Vertical Machining Center, New in 2011

General Specifications:
X Axis Travel: 20″
Y Axis Travel: 16″
Z Axis Travel: 15.5″
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Table Size: 26″ x 15″
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: BT 30
Tool Changer: 20 ATC
Max Torque 46 ft-lbf
Max Cutting 1200 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 2″
Max Tool Length 7″
Chip-to-Chip (avg) 2.4 s
Tapping Speed 5000 rpm
Coolant Capacity 55 gal
Dimensions: 80 in x 100 in x 98 in
Weight: 5,150 LBS
