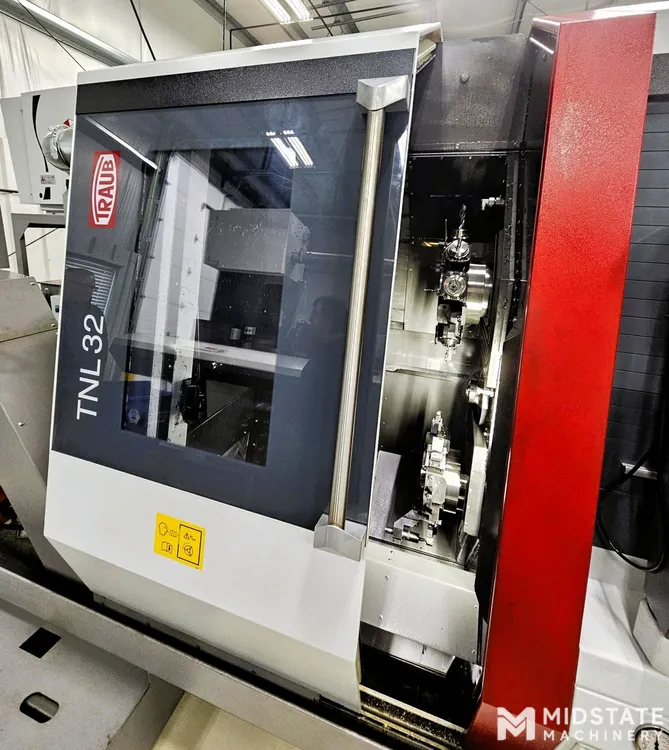

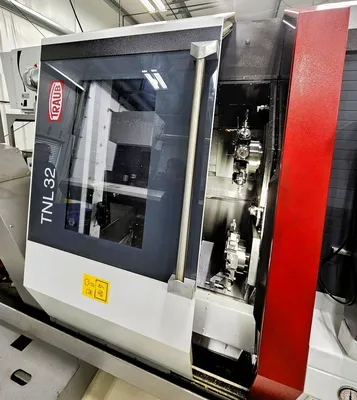

TRAUB TNL 32-9P CNC Swiss Lathe, New in 2015

Specifications per TRAUB website:
Main spindle-
Bar capacity: 32mm
Speed max.: 8,000 RPM
Power at 100% / 25%: 6.7kw / 10.7kw
Torque at 100% / 40%: 21 / 32Nm
C axis resolution: 0.001 degree
Slide travel Z: 305 / 127mm (Langdreher / Kurzdreher)
Rapid traverse Z: 20 m/min

Counter spindle-
Bar capacity: 30mm
Speed max.: 6,400RPM
Power at 100% / 25%: 3.7 / 5.5kw
Torque at 100% / 40%: 29.4 / 43.7Nm
C axis resolution: 0.001 degree
Slide travel X, rapid traverse: 140 / 20 mm/m/min
Slide travel Z, rapid traverse: 300 / 20 mm/m/min

Tool carrier 1-
Equipped as: Revolver
Number of stations: 10
Speed max.: 12,000 RPM
Power max.: 3.4kw
Slide travel X, rapid traverse: 140 / 20 mm / m/min
Slide travel Y, rapid traverse: -40/+25 / 20 mm / m/min
Slide travel Z, rapid traverse: 300 / 20 mm / m/min

Tool carrier 2-
Equipped as: Revolver
Number of stations: 10
Speed max.: 12,000 RPM
Power max.: 3.4 kw
Slide travel X, rapid traverse: 140 / 20 mm / m/min
Slide travel Y, rapid traverse: -25/+40 / 20 mm / m/min
Slide travel Z, rapid traverse: 320 / 20 mm / m/min

Dimensions, weight, connecting power-
Weight: 7,350 kg (abhängig von Ausstattung)
Connecting power: 28 kw

Controls-

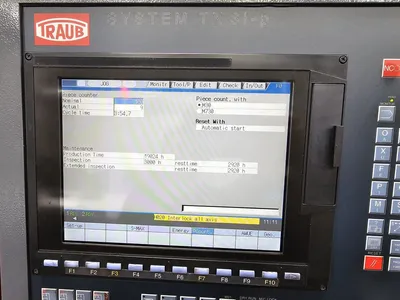

TRAUB: TX8i-s V8

Power Hours: 23,240
Production Hours: 19,024
