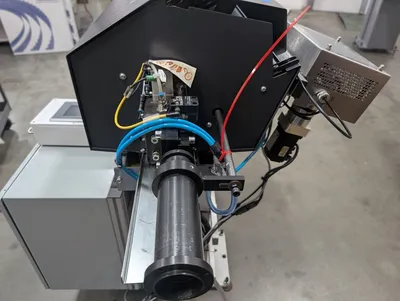

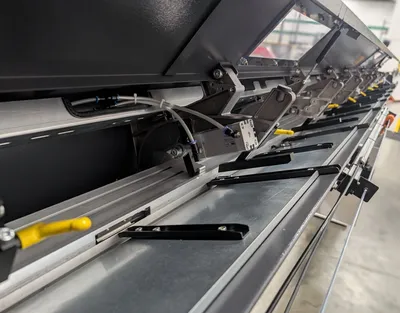

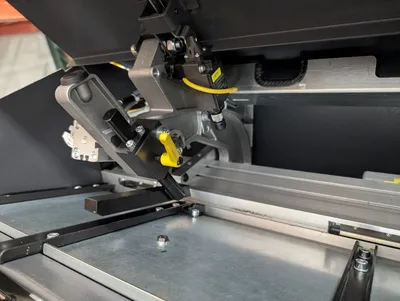

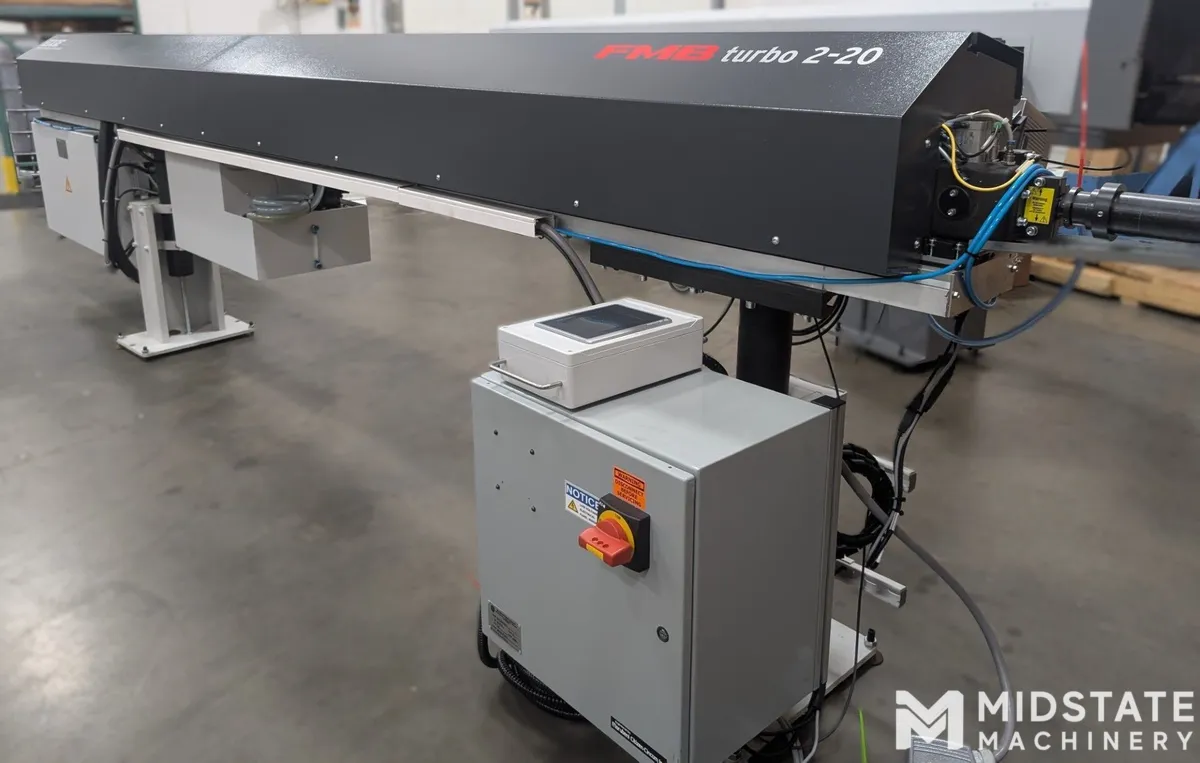

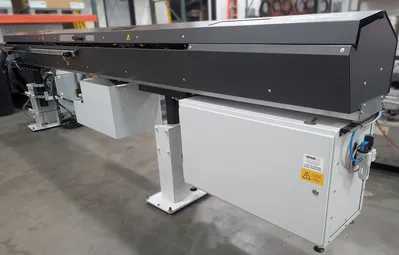

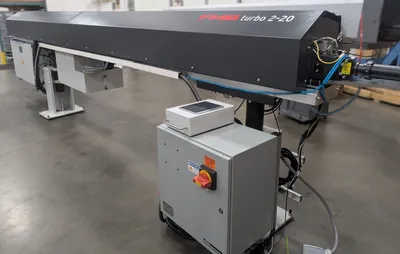

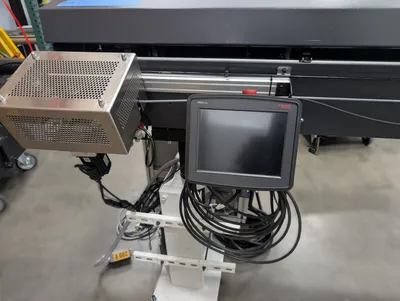

FMB Turbo 2-20 Magazine Bar Loader, New in 2022.
Comes with 10mm & 20mm Channel Sets.
2mm to 20mm x 12’ bar capacity.
Very little usage
Used on a Citizen lathe
General Specifications per Edge website:
Bar diameter 2mm – 23mm (0.078” – 0.905”)
Bar Length 1000mm – 3800mm (39.4” – 12’5”)
Magazine Rack Capacity 177.8mm (7”)
Maximum Remnant Length 420mm (16.5”)
Bar Loading Cycle Time Approx. 25 sec for 12’ bars
Feed Force (Pusher Torque) Max 300 N, adjustable
Forward Feed Rate 300mm/sec (710in/min) max, adjustable
Return Feed Rate 601mm/sec (1420in/min) max, adjustable
Power Consumption 1.5 kW/2 kVA
Operating Voltage 230-400 V/60 Hz – 3 phase
Control Voltage 24V DC
Oil Capacity 50 liters (13.2 gallons)
Oil Viscosity ISO 64 cST – Machine oil
ISO BG32 – Air oil
Compressed Air Supply 6 bar (90 psi)
Compressed Air Consumption ~3 liters per loading cycle
Machine Weight (w/out Oil) 749 kg (1650 lbs)
Material Straightness Specification 0.007” TIR/foot of material (V blocks, 6’ equidistant)
Comes with 10mm & 20mm channel sets.
Put in service 2023 on a Citizen CNC Lathe.
