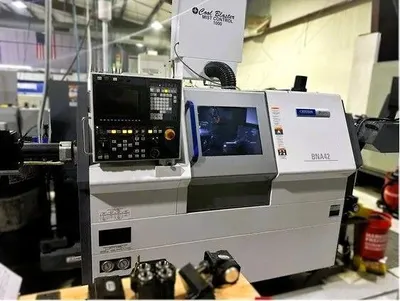

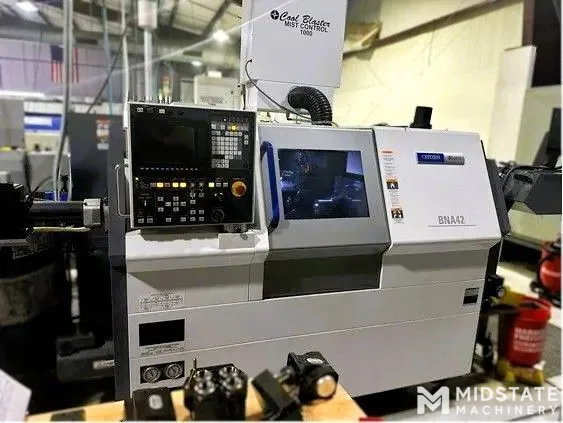

MIYANO BNA-42MSY 5-Axis CNC Lathe, New in 2021

General Specifications Per Brochure:
Max. machining length 100 mm
Max. machining diameter SP1 Ø 42 mm
SP2 Ø 42 mm
Axis strokes
X1 axis 140 mm
Z1 axis 235 mm
Y1 axis 70 (+/-35 mm)
X2 axis 129 mm
Z2 axis 360 mm
Spindle
Number of spindles
2
Spindle through-hole diameter Ø 43 mm
Spindle speed SP1 6.000 min-1
SP2 5.000 min-1
Collet chuck type SP1 DIN collet chuck
SP2 DIN collet chuck
C axis SP1 0,001
°
SP2 0,001
°

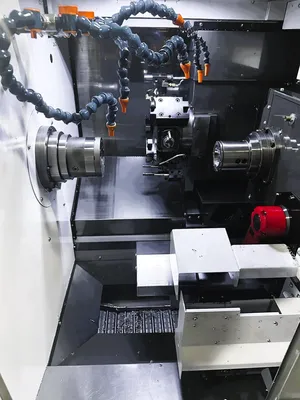

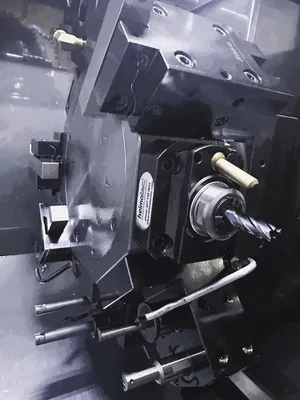

Turret
Number of turret
1
Number of stations 8 stations
Turning tool cross section 20 mm
Sleeve diameter Ø 25 mm

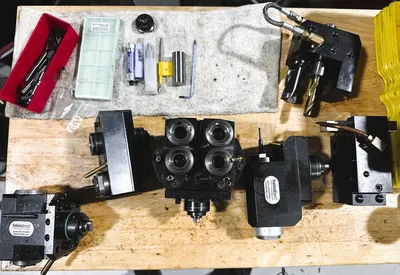

Rotary tools
Number of rotary tools Max. 8
Rotary tool speed 6.000 min-1
Max. drilling diameter Ø 10 mm
Max. front tapping diameter M8 × 1,25
Rapid feed rate
X1 axis 20 m/min
Z1 axis 20 m/min
Y1 axis 12 m/min
X2 axis 12 m/min
Z2 axis 20 m/min
Motors
Main spindle 7,5/11 kW
Back spindle 3,7/5,5 kW
Rotary tools 1,0 kW
Tank capacity
Coolant tank 165 l
Machine dimensions
Machine height 1.620 mm
Floor space W 2.388 × D 1.450 mm
Machine weight 3.000 kg
