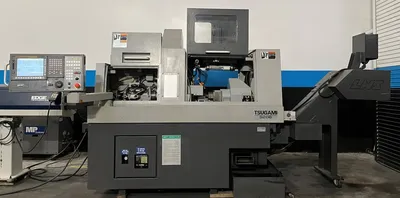

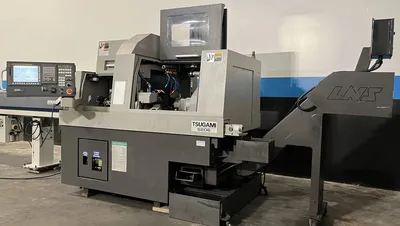

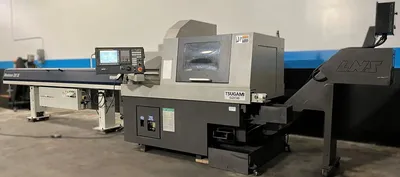

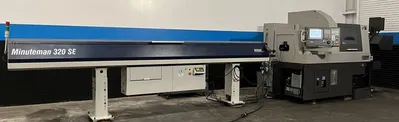

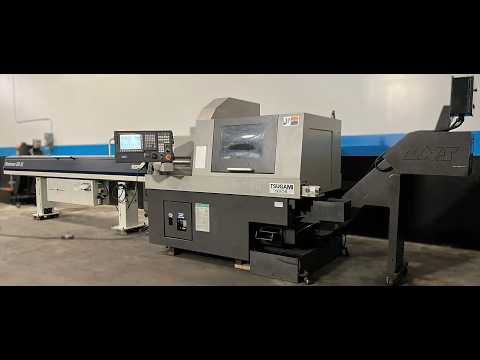

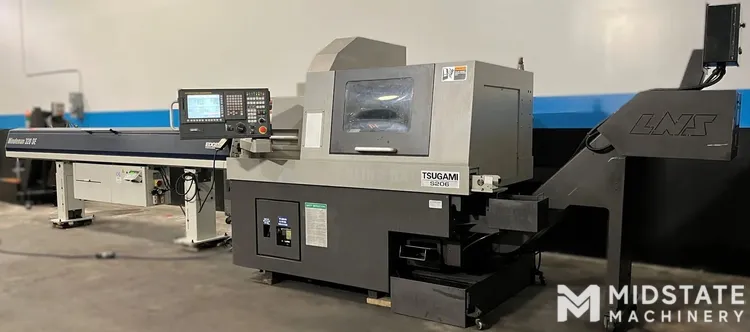

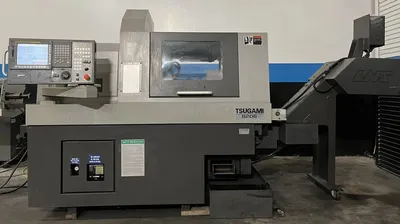

Tsugami S206 CNC Swiss Lathe, New in 2014

General Specifications:
Features:

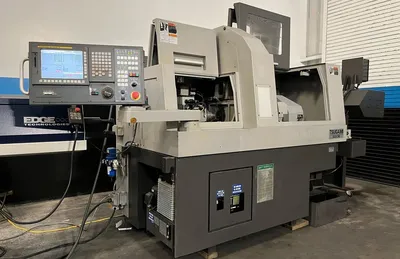

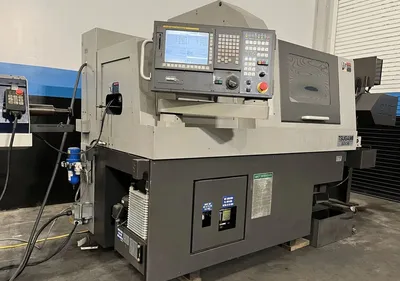

Fanuc 32i-MB CNC Control
11,368 Hours Cutting Time
Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities

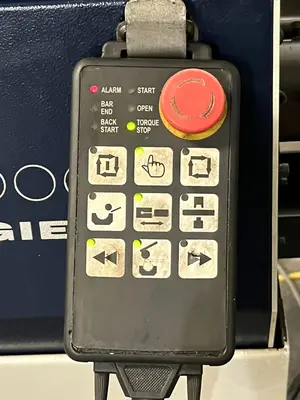

MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System

Capacity:
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 9.843″ (250 mm)
Max Turning Length with Gripping Unit: 8.26″ (210mm)
Max Bar Capacity: 0.79″ (20 mm)
Max Tool Positions: 25
Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max. Main Spindle Tapping Diameter: M8
Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
Max. Back Spindle Tapping Diameter: M6
Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16
Max. Cross Tapping Diameter: M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
Max. Tool Spindle Drilling Diameter: 0.314″ (8 mm)
Max. Back Tapping Diameter: M5

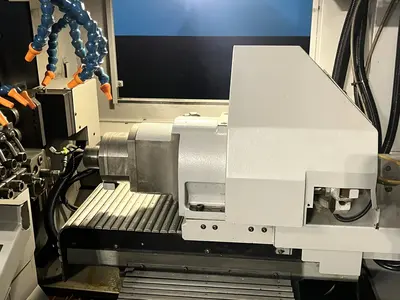

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79″ (20 mm)
Main Spindle Speed: 10000 RPM
Back Spindle Motor: 3.7 kw
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 12000 RPM
Back Spindle Motor: 2.2 kw

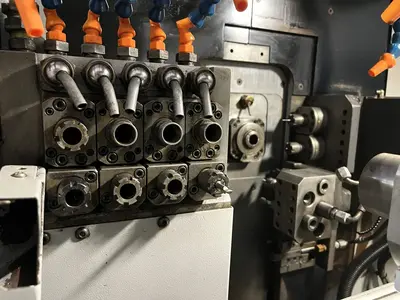

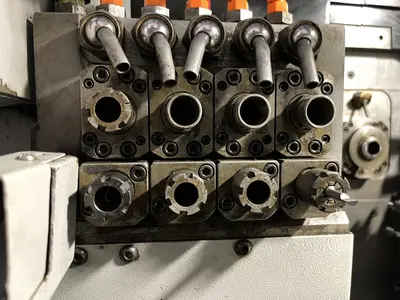

Standard Tools:
Cross Turn Stations: 8
Cross Drill Stations: 3
Main/Sub Drill Stations: 5
Sub Drilling Stations: 4

Power Driven Tools Attachment:
Live Cross Mill Stations: 2
Live Sub Milling Stations: 4
Driven Tool Speed: 8000 RPM
Driven Tool Motor:.75 kw (Front Tool Post) 1 kw (Rear Tool Post)

General:
Power Source: AC 220v / 3-Phase /60 Hz
Power Requirement: 12.1 kva
Overall Dimensions: 83.07″ X 47.24″ X 74.21″ High without Bar Feeder
Weight: 7275 lbs. Approx.
