HAAS VF-2SS Vertical Machining Center, New in 2019
Have one to sell?
ConditionUsed
1 available

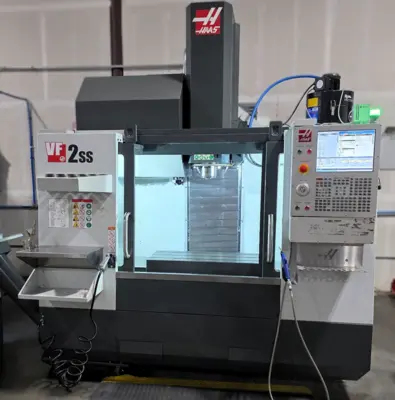

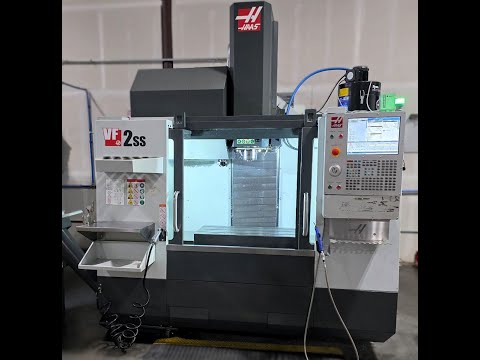

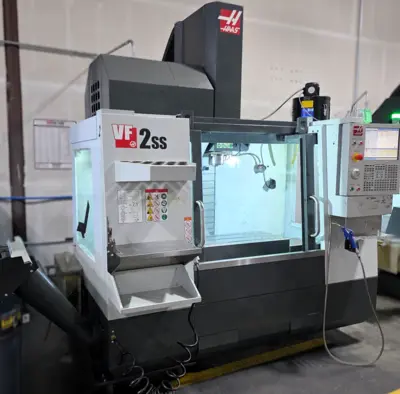

HAAS VF-2SS Vertical Machining Center, New in 2019.
4th and 5th Axis Ready.
HAAS Next Gen CNC Control.
HAAS HRT Rotary Table.
Renishaw Wireless Intuitive Probe System.
General Specifications:
X-Axis 30"
Y-Axis 16"
Z-Axis 20"
Power 30 hp
RPM 12,000 RPM
Taper CAT 40
# ATC 24
Table-W 18"
Table-L 36"
Dimensions L: 106" x W: 101" x :H 101"
Weight 7,800 LBS
TRAVELS:
--X: 30"
--Y: 16"
--Z: 20"
RAPID RATE X AXIS: 1,400 IPM
RAPID RATE Y AXIS: 1,400 IPM
RAPID RATE Z AXIS: 1,400 IPM
TABLE SIZE: 36" X 18"
MAX TABLE LOAD: 1,500 LBS

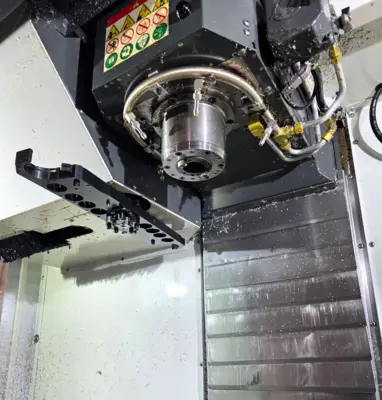

SPINDLE MOTOR: 30 HP
SPINDLE SPEED: 12,000 RPM
SPINDLE TAPER: 40 CT
TOOL CHANGER: 24 ATC
MAX CUTTING 833 IPM
MAX WEIGHT 1500 LB
MAX THRUST X 1995 LBF
MAX THRUST Y 1995 LBF
MAX THRUST Z 3085 LBF
CHIP-TO-CHIP 3.6 S
COOLANT CAP 55 GAL
AMPS 3 PHASE 35A (HIGH)
DIMENSIONS: L: 106" x W: 101" x :H 101"
WEIGHT: 7,800 LBS
Set Up For 4th and 5th Axis

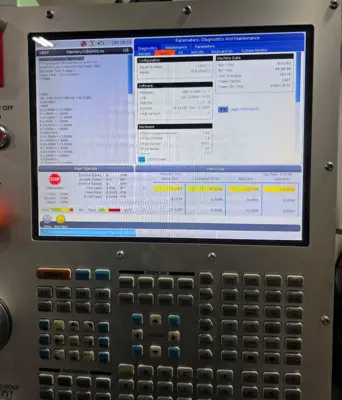

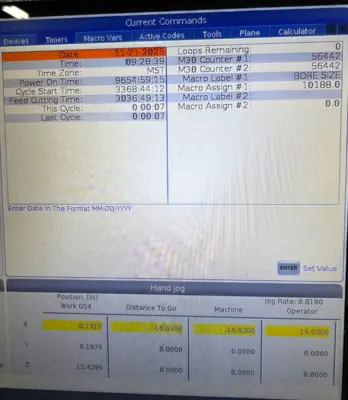

HAAS Next Gen CNC Control

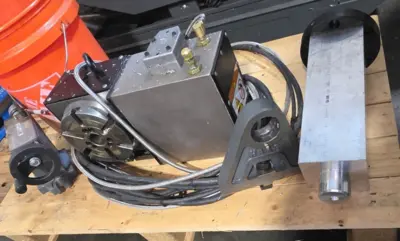

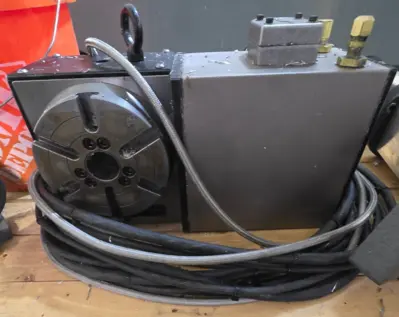

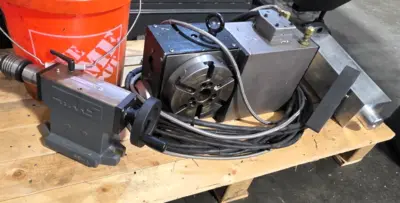

HAAS HRT 210 Rotary Table
WIPS

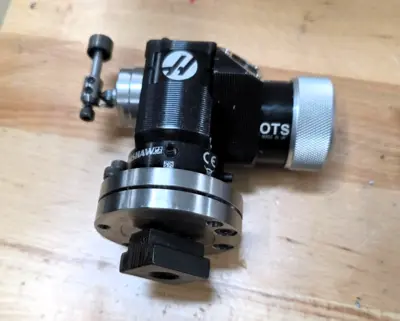

Renishaw OMP40 Wireless Intuitive Probe System
Tool Probe
Chip Auger
Pricing includes 4th Axis Table: Machine may be sold without Rotary - POR
