HAAS SUPER MINI MILL
Have one to sell?
ConditionUsed
1 available

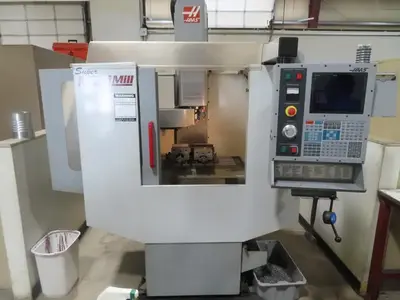

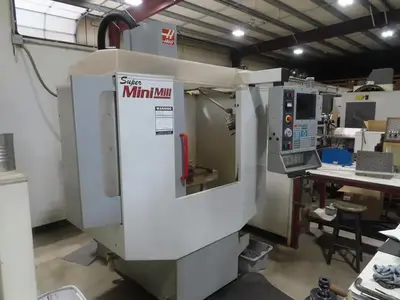

Vertical Machining Center
Make: Haas Automation Inc.
Model: Super Mini Mill
Year of Manufacture: 2001

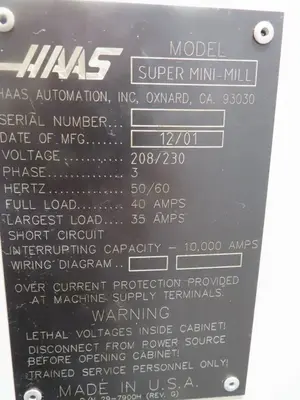

Electrics: 208-230 Volt, 3 Phase, 50-60 Cycle, FLA 40 Amps
Power: 15 HP Main Motor

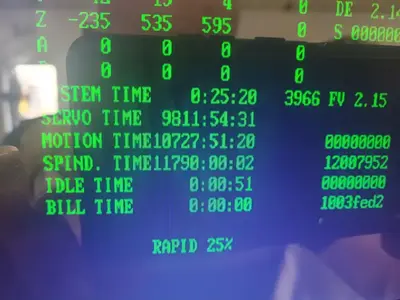

...Hours:
......Servo Time: 9,812
......Motion Time: 10,728
......Spindle Time: 11,790
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes:
1st-Owner machine. Machine has not been run significantly in the last year other than to power up. Before that time, it was used daily. Only components ever replaced were a tool changer sensor; no major part replacement or maintenance. Always a good runner. See imbedded videos.
Features and Specifications:

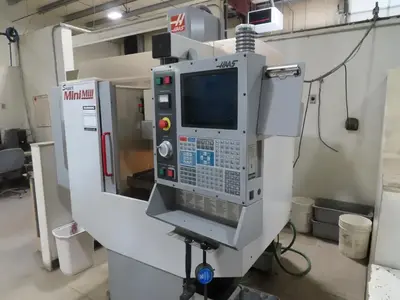

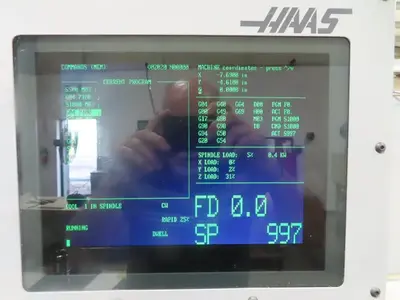

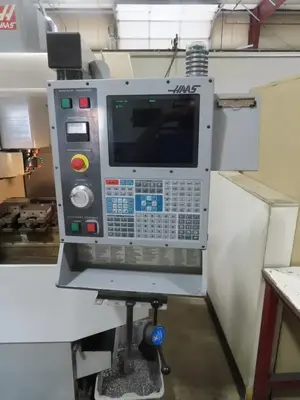

...Haas CNC Control

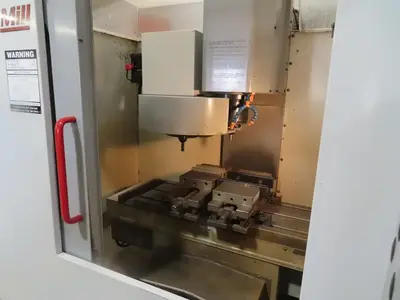

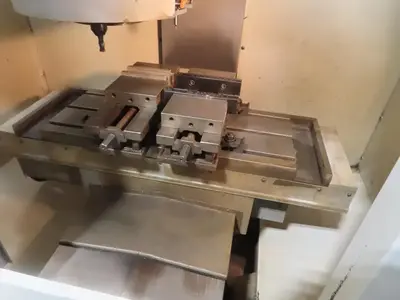

...Table Size: 36" x 12"
...3-Axis: X,Y,Z
...Travels:
......X-Axis: 16"
......Y-Axis: 12"
......Z-Axis: 10"

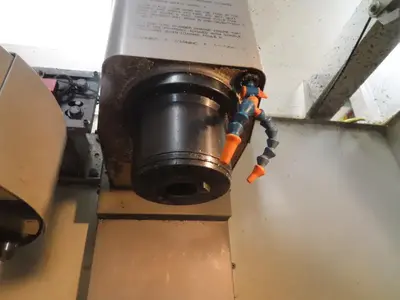

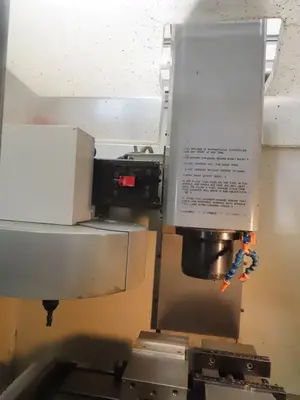

...Spindle Specs:
......Speed: 10,000 RPM

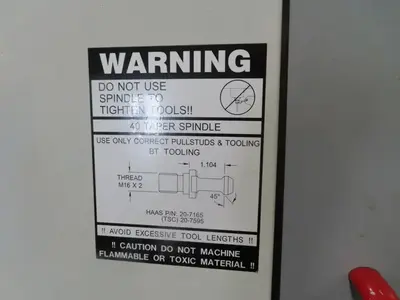

......Taper: 40
......Nose-Table: 4" - 14"
...Feedrates:
......Cutting: 833 IPM
......Rapid Traverse (X,Y,Z): 1200 IPM

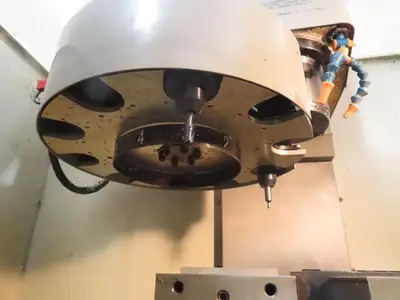

...ATC: 10 Slots, Umbrella Style
...Table Load (max): 500 lbs.

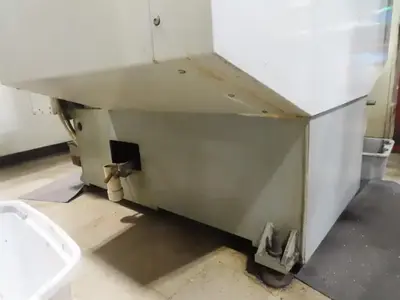

...Coolant Capacity: 40 Gallon
...Serial Port Connection (2)
...No Auger

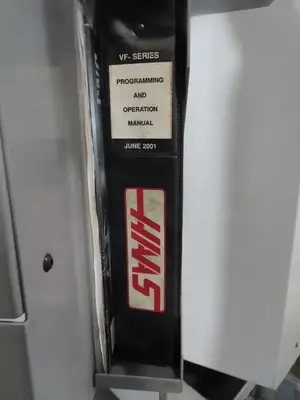

...Programming and Operation Manual
