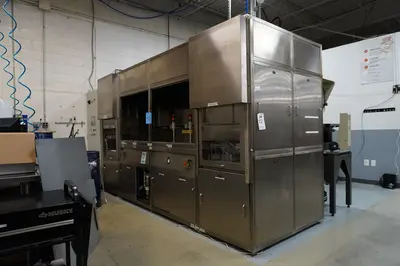

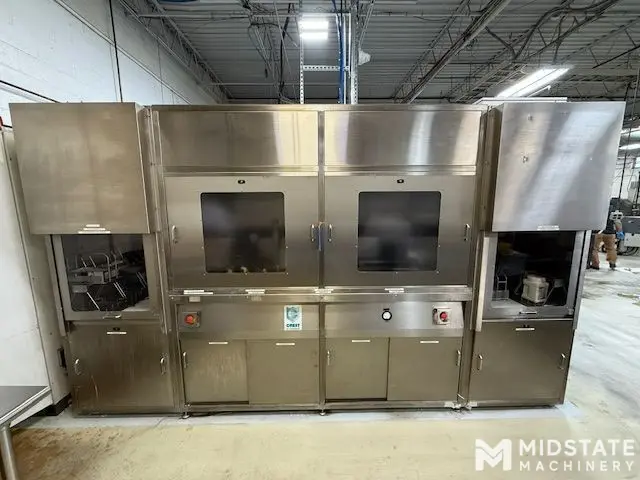

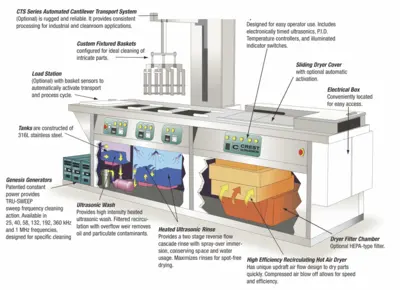

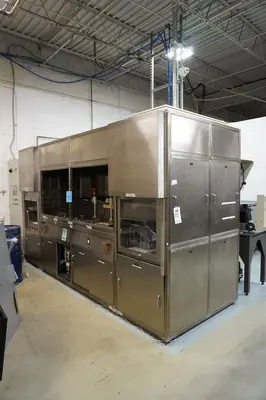

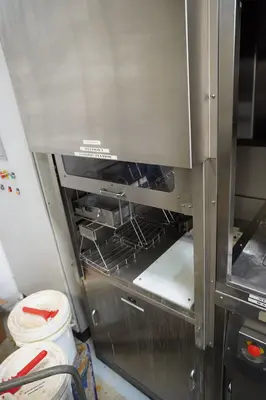

Crest COC4-1014 ultrasonic cleaning system, 6 stations with robotic transfer and fully enclosed.
Built 2010 / delivered 2011. Includes 4 tanks, HEPA filters, and a high-efficiency hot-air dryer.
General Specifications:
See schematics attached

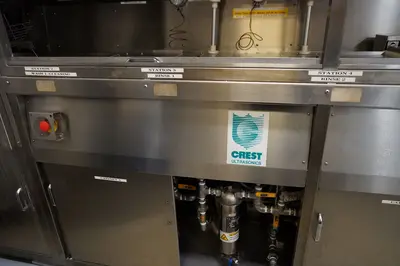

6-Stations:
1. Load
2. Wash station 40 Khz Ultrasonic
3. Rinse station; 40KhZ Ultraxonic
4. Rinse station ; 40 Khz

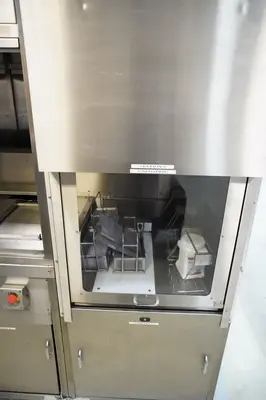

5. Dry station
6. Unload
Cleaning fluid used in this system is various detergents in the wash tank and deionized water in the
following two rinse stations.

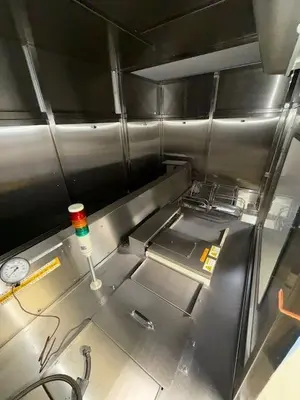

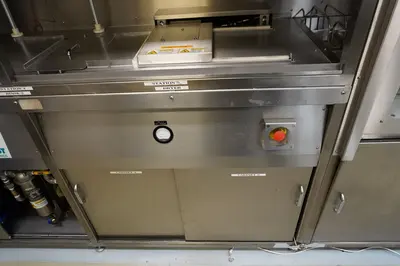

The tank sizes for all four stations are 10" wide x 14" long (F-B) x 10"D
The drying tank uses a High Efficiency Re-circulating Hot Air Dryer.
Dimensions:
The length of the main cabinet is estimated at
127" x 38" x 44" (Robot o/a height is about 84" and the enclosure is approx 94")
Electrics are expected to be 240V / 3 / 60 / 42A
Machine Weight: 5,000 lbs
Est dims: 149"W X 55"D X 88"H without Hepa Filter. 99"H with Hepa
*Crest Ultrasonic can supply parts and service*

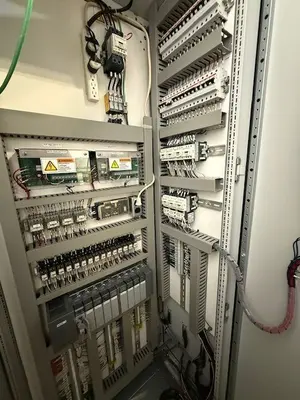

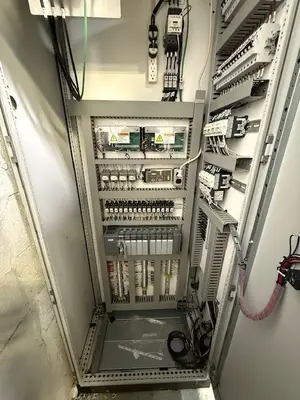

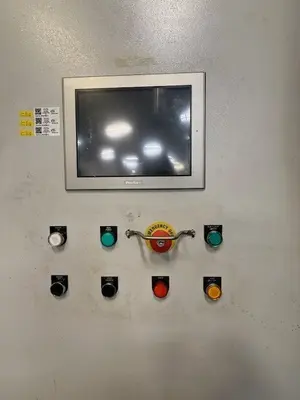

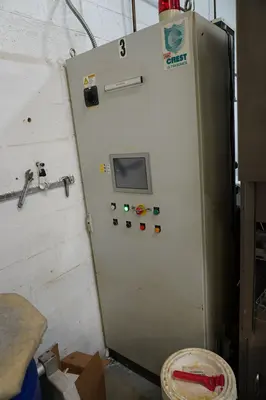

Allen Bradely Panelview 550 Control

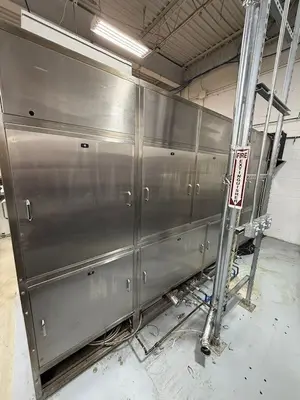

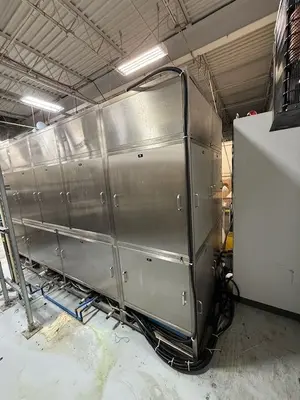

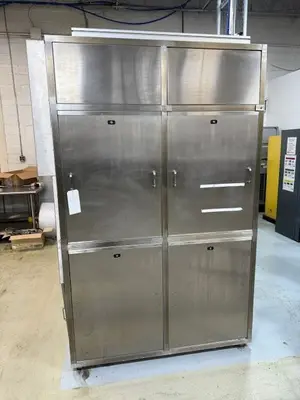

Full Enclosure

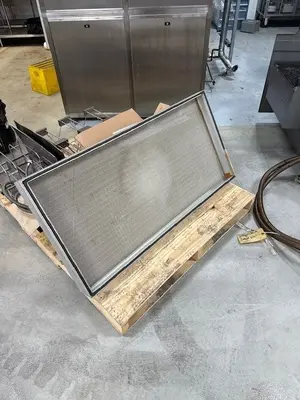

(2) Hepa Filters for Enclosure
Robotic Basket Transfer (CTS-250, 25 lb max load)

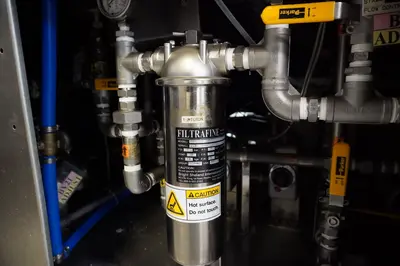

Filtration System Setup for 240v / 3ph / 60 / 4A

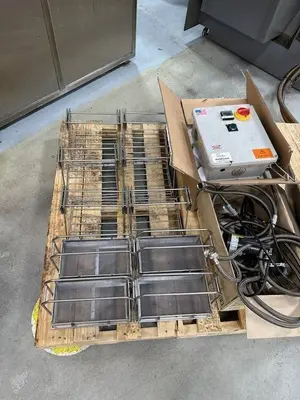

Misc Baskets

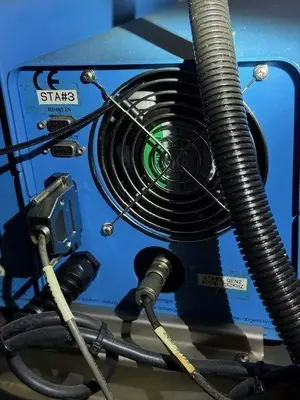

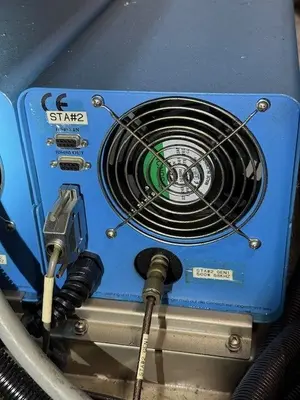

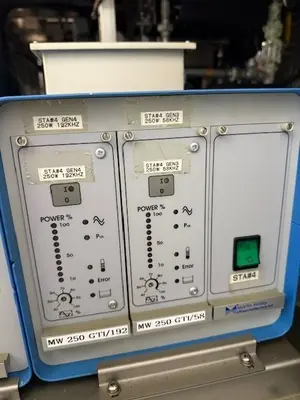

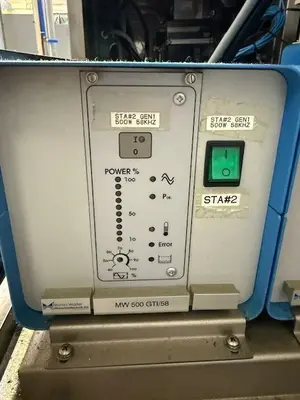

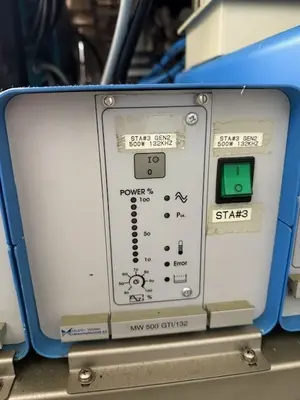

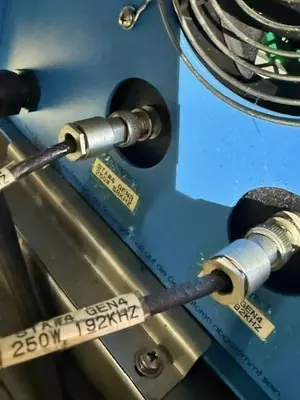

Ultrasonics in 3 tanks:
- Tank 1, Wash: 58khz/ 500w
- Tank 2, Rinse: 132khz/500
- Tank 3, Rinse: 58/192khz/ 250w ea
*Original Setup*
DI Water: 1-3 GPM (4-6 GPM on Demand) at 1-2 Mohn, 35 PSI
CAD Supply: 60-70 CFM @ 60 PSI
