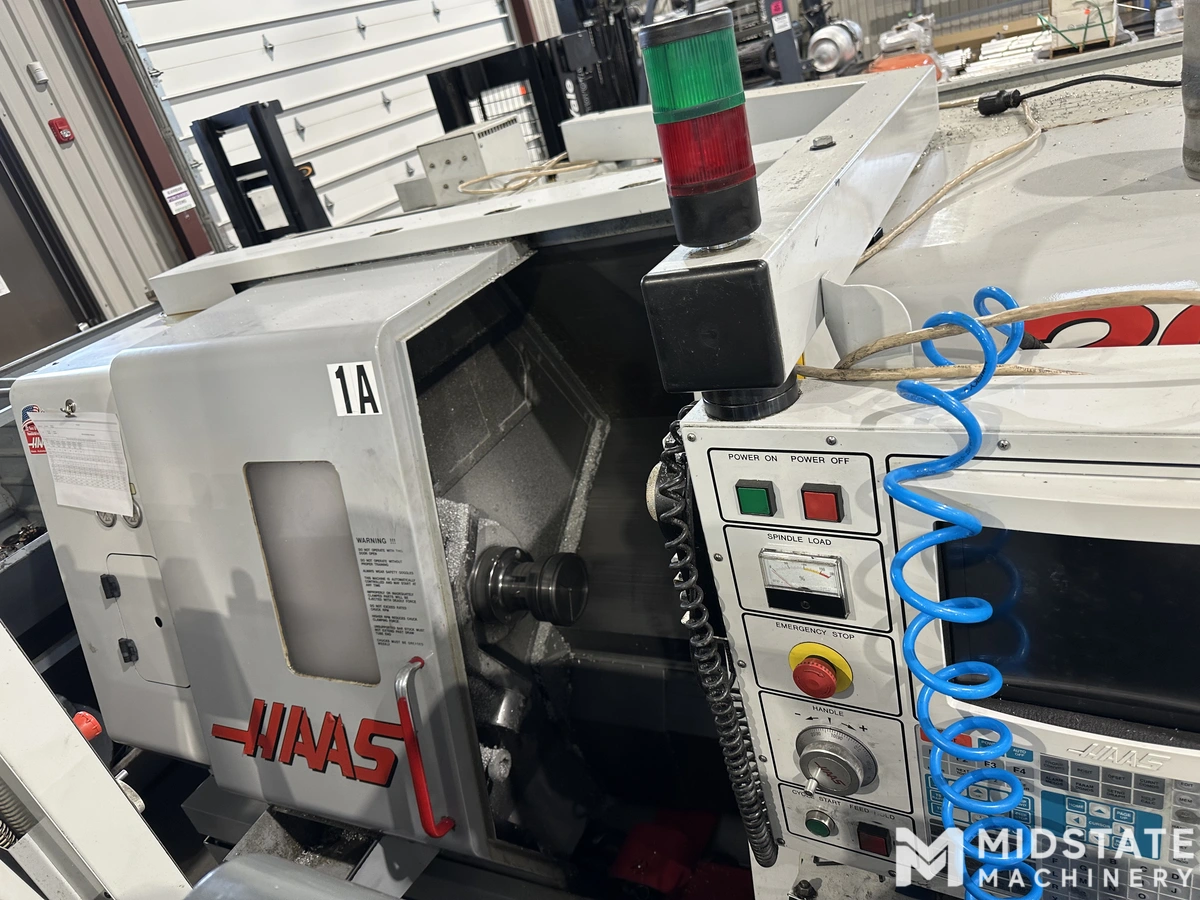

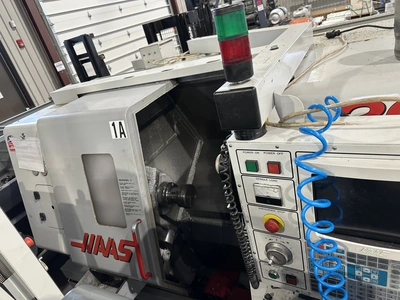

Haas SL-20T CNC Turning Center, New in 1999
Have one to sell?
ConditionUsed
1 available
Haas SL-20T CNC Turning Center, New in 1999
General Specifications:
Bar Capacity: 2"
Chuck Size: 8"
X-Axis Travel 8.45"
Z-Axis Travel 20"
Distance Between Centers: 24"
Diameter Bar Capacity: 2"
Machining Length: 20"
Swing Over Bed / Carriage: 20" / 9.5"
Turning Diameter: 10.3"
Rapid Traverse Rates: 710 IPM
Spindle Bore: 3"
Spindle Motor: 20 HP
Spindle Nose: A2-6
Spindle Speed: 4000 RPM
Spindle Torque: 154 ft. lbs.
Tailstock Taper: MT#4
Tool Positions: 10
Machine Dimensions: 129" x 88" x 72"
Machine Weight: 9000 lbs.
Haas CNC Control
Tailstock
Haas SL-20T CNC Turning Center, New in 1999
Imperial
| Swing | 23" |
| Machining Length | 20" |
| # Axis | 3 |
| Chuck Size | 8" |
| Bar Capacity | 2" |
| Power | 20 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 10.3" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Haas) |
| Dimensions | 129" x 88" x 72" |
| Weight | 9000 lbs. |
General Specifications:
Bar Capacity: 2"
Chuck Size: 8"
X-Axis Travel 8.45"
Z-Axis Travel 20"
Distance Between Centers: 24"
Diameter Bar Capacity: 2"
Machining Length: 20"
Swing Over Bed / Carriage: 20" / 9.5"
Turning Diameter: 10.3"
Rapid Traverse Rates: 710 IPM
Spindle Bore: 3"
Spindle Motor: 20 HP
Spindle Nose: A2-6
Spindle Speed: 4000 RPM
Spindle Torque: 154 ft. lbs.
Tailstock Taper: MT#4
Tool Positions: 10
Machine Dimensions: 129" x 88" x 72"
Machine Weight: 9000 lbs.
Haas CNC Control
Tailstock
