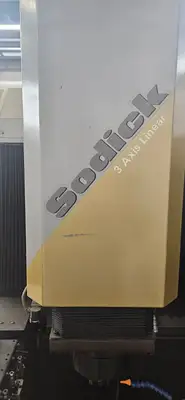

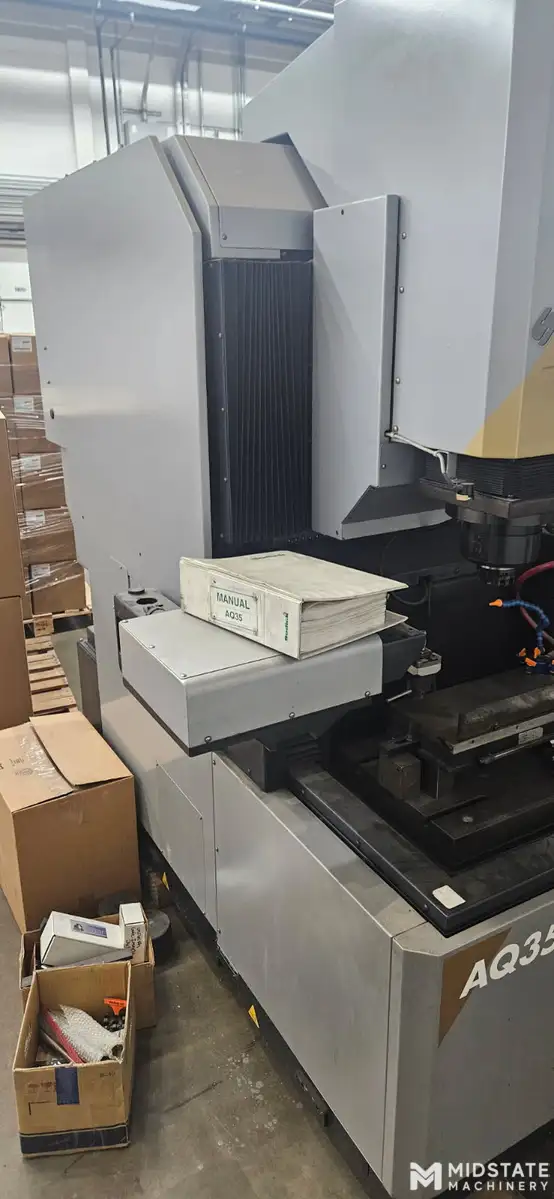

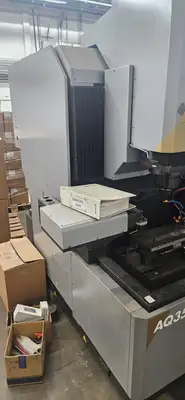

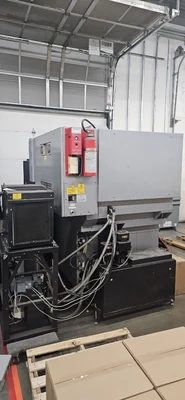

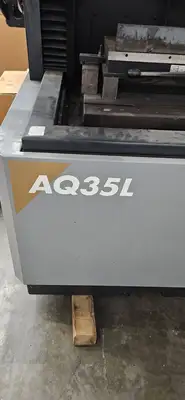

Sodick AQ35L Sinker EDM, New in 2004

Machine

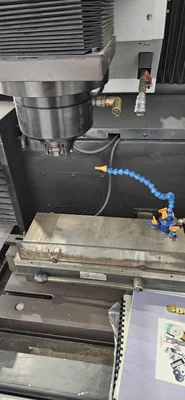

Worktable Size: 23.6" x 15.8" (600×400 mm)
Work Tank Inner Dimensions: 29.5" x 21.7" x 12.6" (750x550x320 mm)
Work Tank Fluid Level: 3.7" x 10.6" (95-270 mm)
Work Tank Capacity: 112 L
X-Axis Stroke: 13.8" (350 mm)
Y-Axis Stroke: 9.8" (250 mm)
Z-Axis Stroke: 9.8" (250 mm)
Workpiece Weight: 1,210 lbs (550 kg)
Electrode Weight: 110 lbs (50 kg)
Distance from Floor to Table Top: 33.5" (850 mm)
Power Input: 200V 50/60 Hz 10kVA
Air Pressure: 0.45 MPa
Air Flow: 100 N l/min

Machine dimensions: 60.4" x 87" x 94.3" (1535x2210x2395 mm)
Machine weight: 8,600 lbs (3900 kg)

Dielectric Tank
Dimensions: 38.6" x 26.8" x 44.1" (980x680x1120 mm)
Weight (empty): 220 lbs (100 kg)
Dielectric capacity: 275 L
