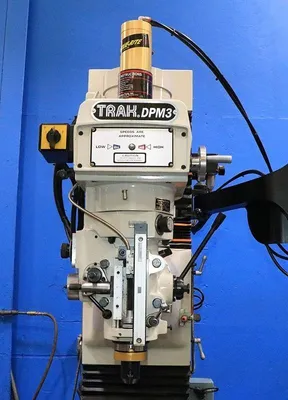

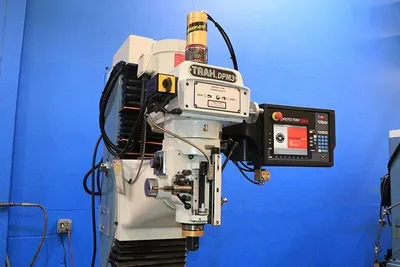

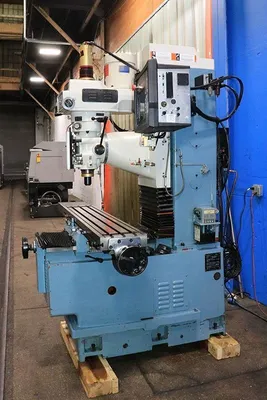

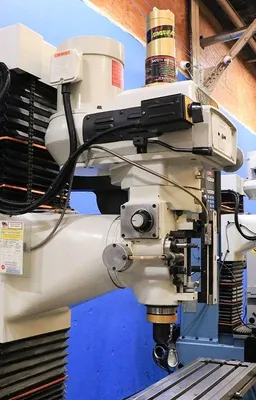

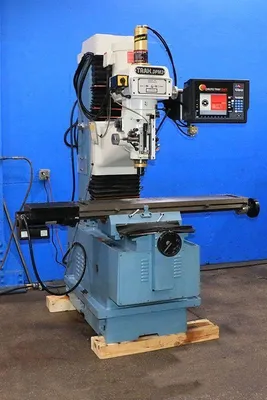

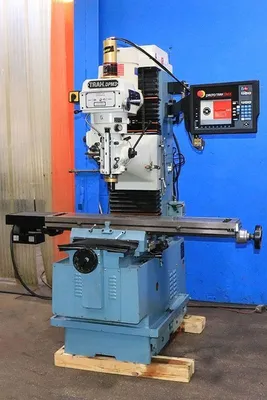

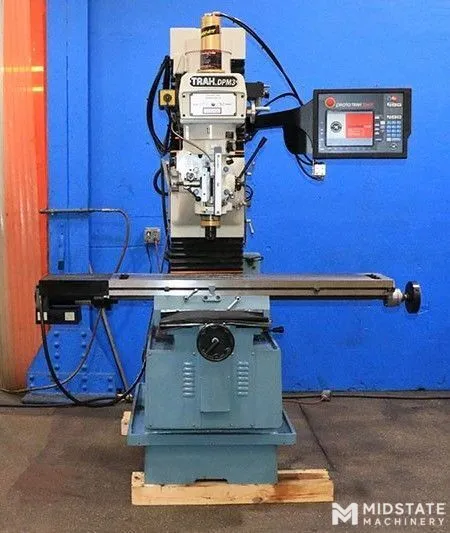

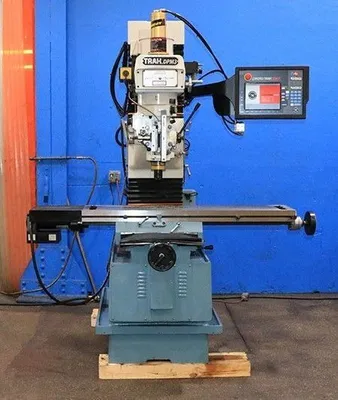

SOUTHWESTERN INDUSTRIES TRAK DPM SX3 CNC Bed Mill w/Hand Wheels, New in 2008
Have one to sell?
ConditionUsed
1 available
SOUTHWESTERN INDUSTRIES TRAK DPM SX3 CNC Bed Mill w/Hand Wheels, New in 2008.
REMOTE STOP/GO SWITCH
SQUARE BOX WAYS - HARDENED & GROUND
PRECISION BALL SCREWS
HALOGEN WORKLIGHT
TORQUE-RITE POWER DRAW BAR
COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
General Specifications:

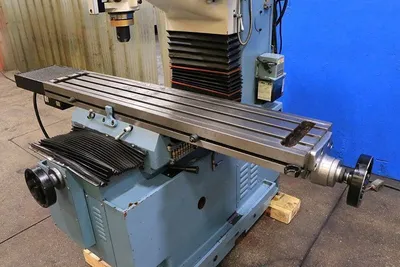

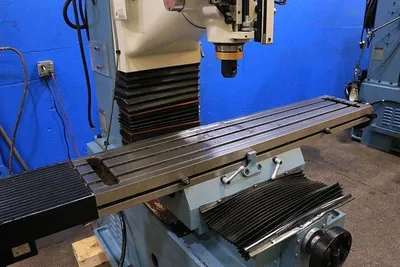

TABLE SIZE ........................ 10" x 50"
TABLE TRAVEL (X) .................. 31"
SADDLE TRAVEL (Y) ................. 17"
VERTICAL HEAD TRAVEL (Z) .......... 23.5"
QUILL TRAVEL ...................... 5"
SPINDLE TAPER ..................... #40 NST
SPINDLE NOSE TO TABLE ............. 0 - 24"
SPINDLE CENTER TO COLUMN FACE ..... 19"

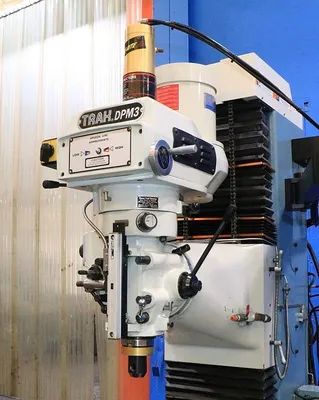

HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES
SPINDLE SPEED RANGE ............... 70 - 3950 RPM
QUILL FEEDS (3) ................... .002, .004, .006 IPR
MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS
APPROX DIMENSIONS ................. 68"W x 64"D x 95"H
MACHINE WEIGHT .................... 4,100 LBS

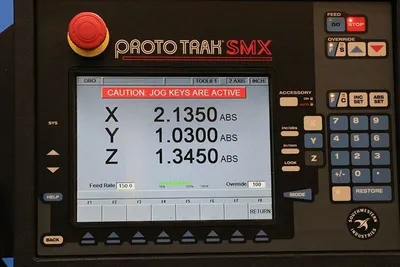

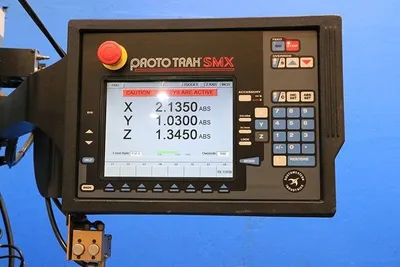

SOUTHWESTERN INDUSTRIES PROTO-TRAK SMX THREE AXIS CONTROL
THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING
HELICAL, CANNED CYCLES, GRAPHICS & MUCH MORE
IN MANUAL MODE 3-AXIS DRO, RS232 PORT
ADVNCED FEATURES OPTION
QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN NOT QUILL)
REMOTE STOP/GO SWITCH
SQUARE BOX WAYS - HARDENED & GROUND
PRECISION BALL SCREWS
HALOGEN WORKLIGHT
TORQUE-RITE POWER DRAW BAR
COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
BELOWS WAY COVERS
5 HORSE POWER SPINDLE MOTOR
TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL.
