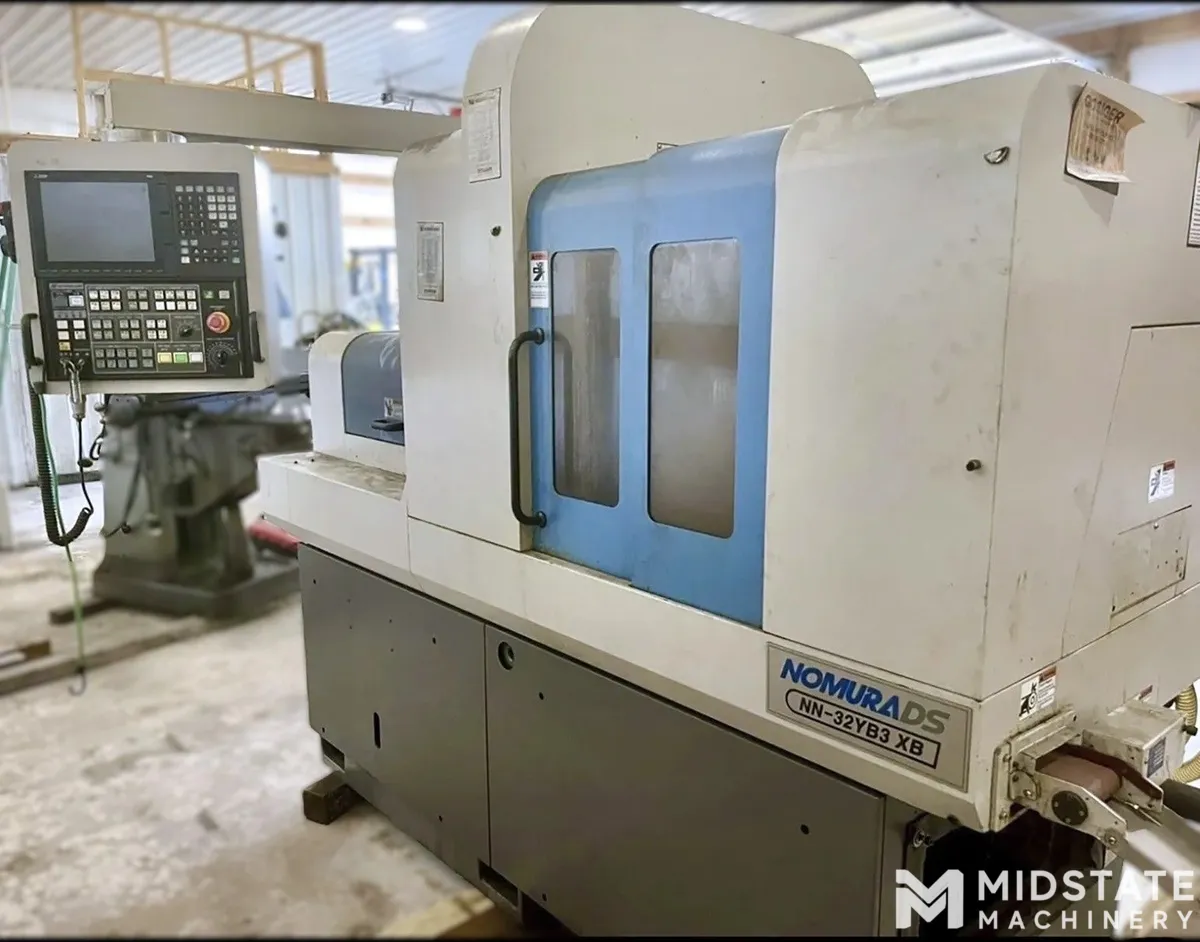

NOMURA NN-32YB3 XB CNC Swiss Lathe, New in 2019
Have one to sell?
ConditionUsed
1 available
NOMURA NN-32YB3 XB CNC Swiss Lathe, New in 2019.

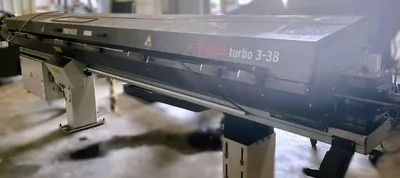

FMB Turbo 3-38 Barfeed.

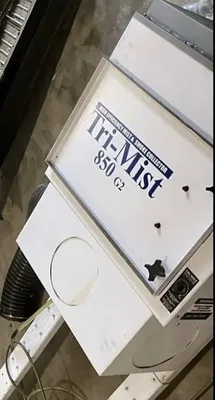

Mist Collector.
General Specifications:
MAX. MACHINING DIAMETER 32mm
MAX. MACHINING LENGTH 190mm /1chuck
MAX. PARTS UNLOADING LENGTH 93mm
MAIN SPINDLE THROUGH-HOLE DIAMETER Ф37mm
SPINDLE RPM (MAIN/SUB) Max. 8,000rpm
SUB SPINDLE CHUCKING DIAMETER 3200
MAX. NUMBER OF TOOLS 39
MAX. MACHINING DRILL Ф13mm
MAX. MACHINING TAP M 10
O.D. TOOL 6 (□16X150mm max)
I.D. TOOL (6(ER16x5+OP5tools) + (ER20x1+OP1tools)
CROSS DRILL (B AXIS)
CROSS DRILL RPM 6000
RAPID FEED RATE X1 20/min X2 : 25m/min Z1,Z2,Y1,Y2 : 28m/min
MIN. COMMAND UNIT: IN (MM) 0.0001mm
C AXIS MIN. COMMAND UNIT (MAIN, SUB) 0.0001°
MAIN SPINDLE MOTOR 5.5/3.7kW
CROSS DRILL MOTOR 1.5
SUB SPINDLE MOTOR 3.7/1.5kW
X1.Y1,Z1,X2.Y2.Z2 AXIS FEED MOTOR
COOLANT PUMP (MAIN, SUB) 1.0kW
FMB Turbo Barfeed
Mist Collector
Sub : Chuck sleeve /Spring/Spindle cap(1set)
Automatic power turn-off device
Automatic oiling device (level detector attached)
Cutting oil device (Main/Sub)
Coolant failure detector(Main/Sub)
Automatic fire extinguisher
Rear ejection unit (Ф24mm or less)
Spindle tube liner for small part
Large-sized lubricant pump 1.8ℓ

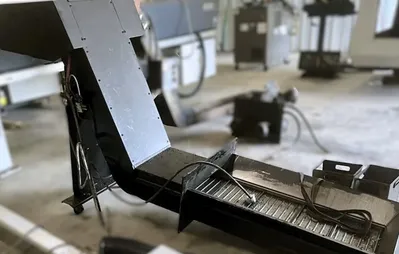

Chip conveyor & Chip box
Medium / High pressure coolant
Long drill holder
Fixed guide bush
Tap breakage detector (Main
Sub)
Tool presetter
Tool air blow
