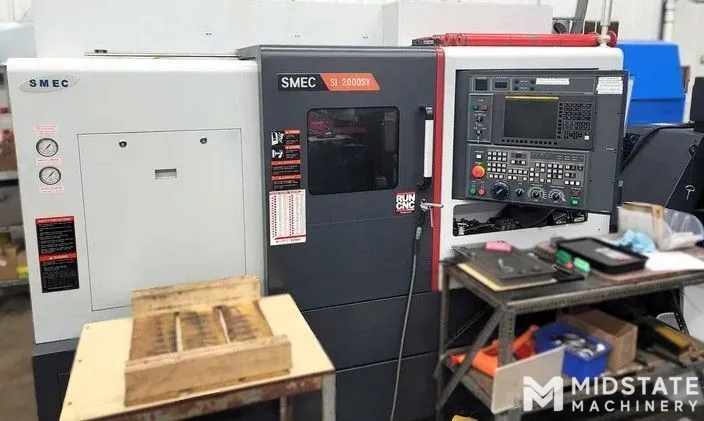

SMEC SL 2000BSY, New in 2021
Have one to sell?
ConditionUsed
1 available
SMEC SL 2000SY, New in 2021.
Low Hours.
SMEC "A" Package.
Tool Presetter.
Bar Feeder Interface.
Parts Ejector- Pneumatic.
Air Blow for Main/Sub Spindle.
Z-Axis HP Upgrade with 2,750 lbs Continuous Thrust.
General Specifications:
Swing 25.59"
Machining Length 17.72"
# Axis 4
Chuck Size 8"
Bar Capacity 2.65"
Power 25 hp
Max RPM 4,500 RPM
Turning Dia 15.55"
Tailstock No
Live Tooling Yes
Sub Spindle Yes
Control CNC (Fanuc 0i-TF)
Dimensions 163" L x 69" D x 96" H
Weight 11,110 Lbs.
SMEC A PACKAGE:
* Tool Presetter
* Bar Feeder Interface
* Parts Ejector-Pneumatic
* Air Blow for Main/Sub Spindles
* Coolant Flush Thru Sub-Spindle
* Fanuc Manual Guide-i
* Helical Interpolation
* Z-Axis HP Upgrade with 2,750 Lbs. Continuous Thrust
SMEC A VALUE PACKAGE
* Chip Conveyor - Side Discharge
* Internal Parts Catcher / Parts Conveyor
* 145 PSI Coolant Pump
* 3-Color Tower Light
