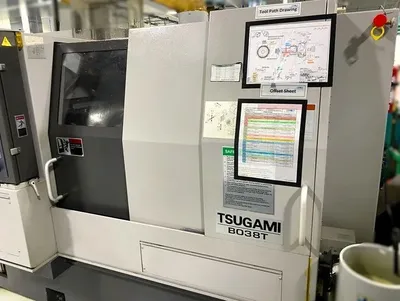

TSUGAMI B038T CNC Swiss Lathe, New in 2018
Have one to sell?
ConditionUsed
1 available
TSUGAMI B038T CNC Swiss Lathe, New in 2018.
Low Hours.

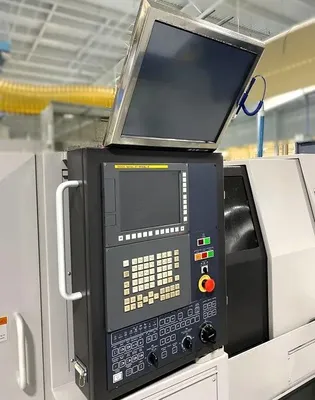

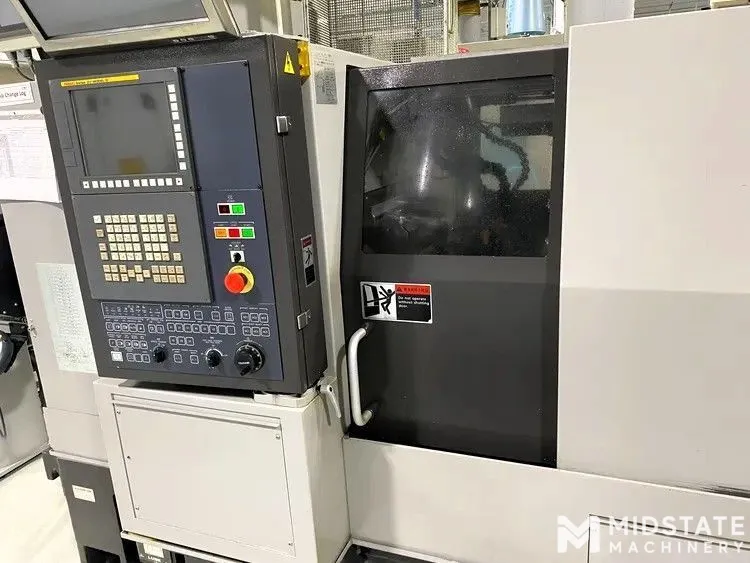

Fanuc 32-IB CNC Control.
Through Spindle Coolant for Main and Sub-Spindles.

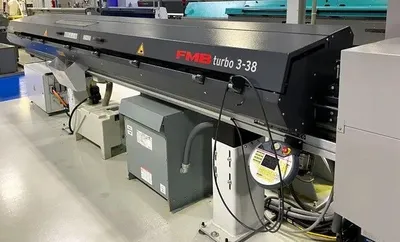

FMB Turbo 3-38 12' Bar Feed.
General Specifications:
Main Spindle: 15 HP
Sub Spindle: 7.5 HP
Live Tool (Turret: 1.87 HP
Tool Spindle on back tool post: 1.34 HP
Cross drill on front tool post: 1.34 HP
Powerful Sub Spindle: 7,000 RPM
Sub spindle max. machining diameter: 1.5"
Max. Sub spindle drilling diameter: 0.55"
Max. Sub spindle tapping size: M12
8 Station 3 axis turret (Live Capable)
Live tool spindle speed on Turret: 7,000 RPM
Live tool turret drilling diameter: 16mm
Live tool turret tapping size: M10
1.5" max. machining diameter
Max. headstock stroke: 9.84"
Main spindle speed: 5,000 RPM
Max. main spindle drilling diameter: 0.625"
Main spindle tapping size: M14
Front tool post: 5 turning, 2 Live
Front tool post cross drill speed: 5,000 RPM
Front tool post cross drilling diameter: 10mm
Front tool post cross tapping size: M6
Back tool post: 6 (3 fixed, 3 live)
Back tool post live tool speed: 6,000 RPM

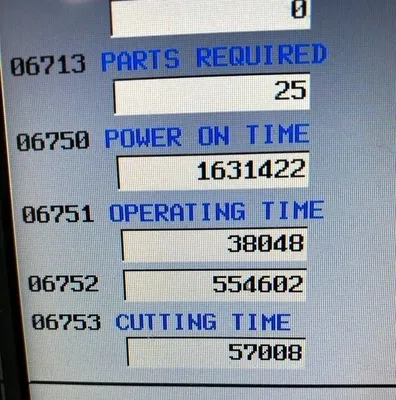

Cut Time: 950 hours
Operating Time: 1497 hours
FMB Turbo 3-38 12' Bar Feed
Fire Trace Suppression System

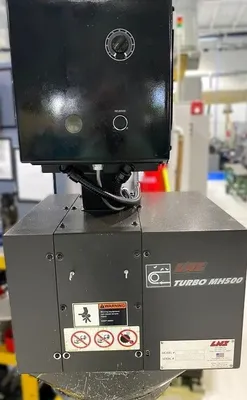

MH 500 Chip Conveyor
PSI High Pressure Coolant
Fanuc 32i-B CNC Control
Rotary Tool Drive System
Continuous Thread Cutting
Spindle Coolant for Main and Sub Spindles

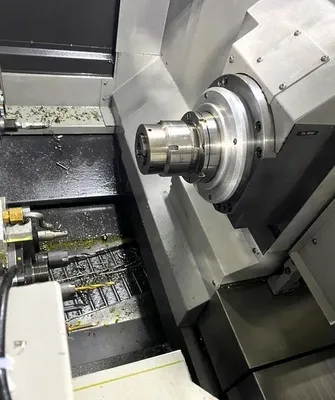

Main and Back Spindle Collet Chuck Unit
Back Spindle Full C-Axis
TMAC Tool Load and Breakage Monitoring from Caron Engineering
All Collets
All Rotary Driven Tools
All Manuals and Documentation
