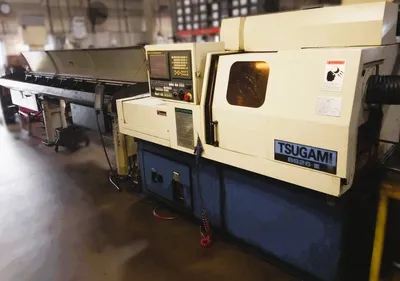

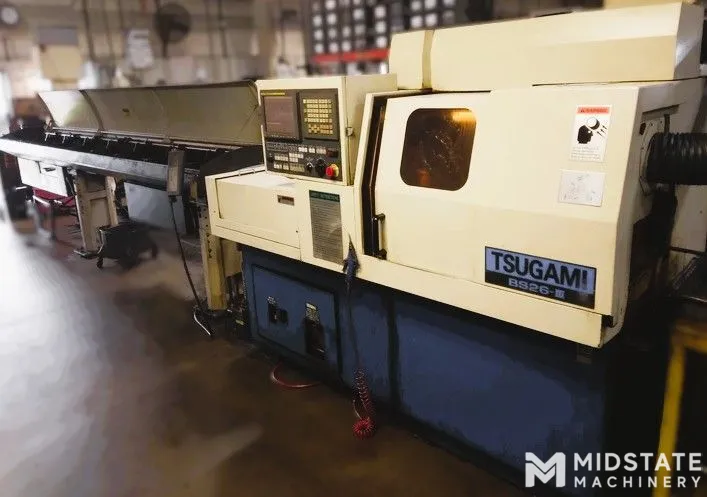

TSUGAMI BS26-III Swiss Lathe w/LNS Bar Feed, New in 2006
Have one to sell?
ConditionUsed
1 available
TSUGAMI BS26-III Swiss Lathe w/LNS Bar Feed, New in 2006.
7-Axis.
Sub-Spindle.
C-Axis on both spindles.
High Pressure Coolant.

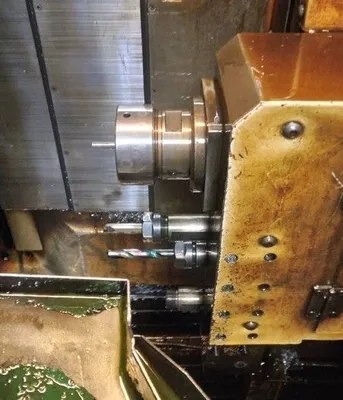

Tooling
General Specifications:
Machine Stock Size 1.02"
Maximum Machining Length 8.21"
Maximum Spindle Drilling Diameter .468"
Maximum Main Spindle Tapping M10
Maximum Sub-Spindle Chucking Diameter . 1.02"
Maximum Sub-Spindle Drilling 0.375"
Maximum Sub-Spindle Tapping 0.3125"
Maximum Tool Spindle Tapping Diameter . 0.25"
Z1-Axis Travel (Synchronous to "Z2")... 9.75" 9.75"
Main Spindle Speeds 200-7,000 RPM
Sub-Spindle Speeds 200-7,000 RPM
Tool Spindle Speed 200-5,000 RPM
Rotary Tool Speed 200-4,000 RPM
Main Spindle Indexing (Full C-Axis) 0.001 Degree
Main Spindle Drive Motor 7.5 HP
Approximate Machine Weight 6,160 Lbs.

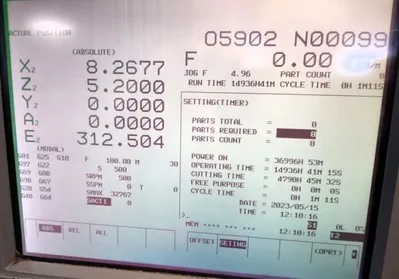

Fanuc 18i-TB.
7-Axis.
Sub Spindle.
C-Axis on Both Spindles.
LNS Express Bar Feed.
High Pressure Coolant.
Tooling.
