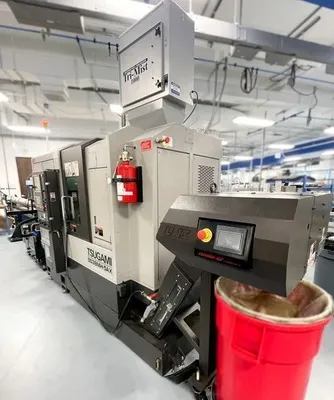

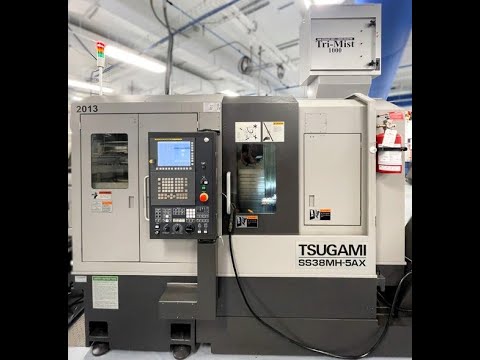

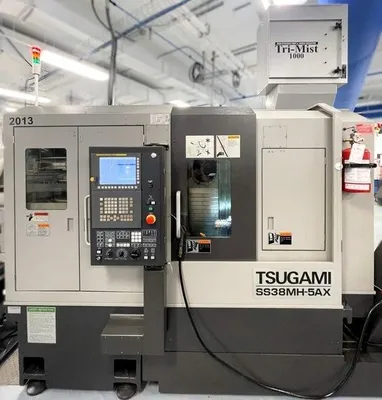

TSUGAMI SS38MH-5AX CNC Multifunction Lathe, New in 2019

General Specifications from OEM Brochure:

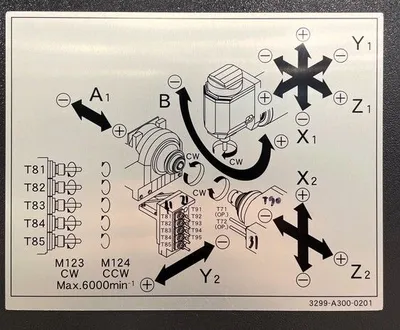

# Axes 8
Max. Machining diameter 1.5 in / 38 mm
Max. Machining length 3.9 in / 100 mm (Chucker Mode)
1.5 in / 300 mm (Direct-drive guide bushing)
Max. Main spindle drilling diameter . 63 in / 16 mm
Max. Back spindle drilling diameter .5 in / 12 mm
Max. Main spindle tapping diameter M12
Max. Back spindle tapping diameter M12
Max. Tool spindle drilling diameter .5 in / 12 mm
Max. Tool spindle tapping diameter M12
Max. Back tool post drilling diameter .4 in / 10 mm
Max. Back tool post tapping diameter M8
Max. Back tool spindle drilling diameter .3 in / 8 mm
Max. Back tool spindle tapping diameter M6
Main/Back spindle speed 200 to 7,000 rpm
Tool spindle speed 200 to 20,000 rpm
Least increment of B-axis index angle 0.001 (continuous)
B-axis index angle -15° to 195°
Main spindle/back spindle index angle 0.001 (continuous)

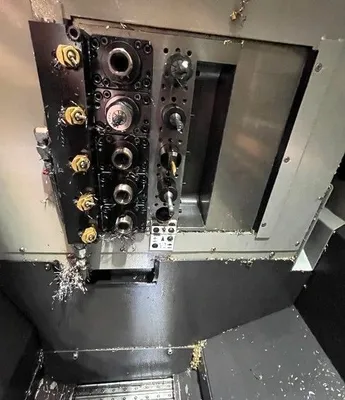

Back tool post (modular type live tool) Max speed: 6,000 rpm
Back tool post (fixed tool) 25 mm/5 tools
Tool selection Specified address, random indexing

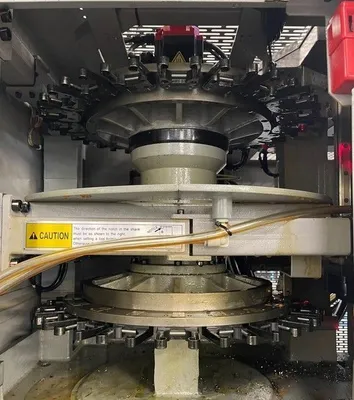

Tool storage capacity 40 Tools
Tool interface CAPTO C4
Rapid traverse rate 32 m/min
Main/Back spindle motor 7.5/5 Hp (5.5/3.7 kW)
Tool spindle motor 15/7.5 Hp (11/5.5 kW)
X1 motor 3.6 Hp (2.7 kW)
Y1, X2, Z2 motor 3.5 Hp (2.5 kW)
Z1 motor 4 Hp (3.0 kW)
Back rotary tool motor 1.4 Hp (1.0 kW)
Y2 axis, Tool magazine, ATC, Transfer motor 0.7 Hp (0.5 kW)
A1 motor 1 Hp (0.75 kW)
Coolant tank capacity 180 L
Compressed air requirement 0.4 MPa or above
Air discharge rate 280 NL/min
Size (width x depth x height) 116 x 79 x 85 in (2,930 x 2,000 x 2,160 mm)
Weight 15,652 lbs (7,100 kg)
