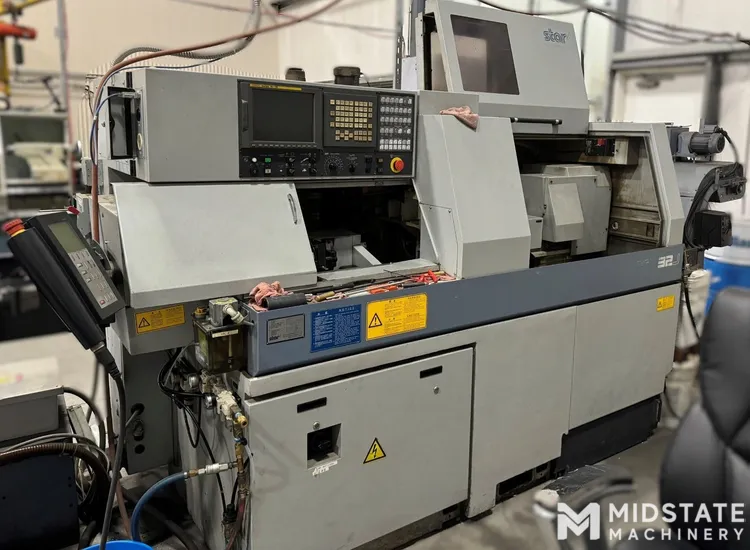

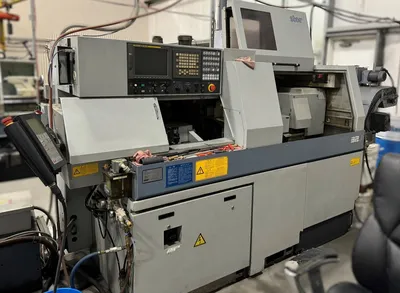

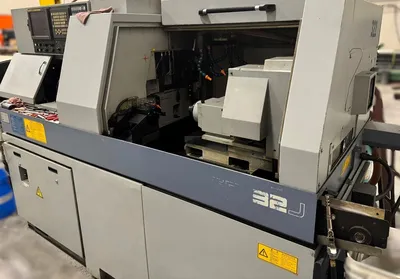

STAR SR-32J Swiss CNC Lathe, New in 2011

General Specifications:
Control: ............................... Fanuc 18iTB
Max. machining diameter: ............... 32mm (1-1/4in)
Max. headstock stroke
- Standard: ........................... 310mm(12-13/64in)
- with RMGB unit: ..................... 280mm(11-1/32in)
Tool shank: ............................ 16mm x 95-155mm

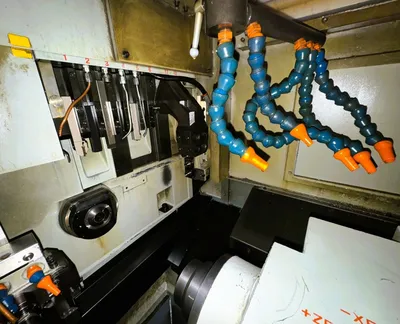

4-spindle sleeve holder
- Max. drilling capability: ........... 13mm(1/2in)
- Max. tapping capability: ............ M12xP1.75
- Max. die cutting capability: ........ M10xP1.5
Power Driven attachment
- Max. drilling capability: ........... 8mm(5/16in)
- Max. tapping capability: ............ M6xP1.0
- Max. milling capability: ............ 10mm(25/64in)
Main spindle speed: .................... max.7,000min-1
Main spindle motor(continuous/30min): .. 5.5kw/7.5kw
Power-driven att. spindle speed: ....... max.5,000min-1
Power-driven att. drive motor: ......... 1.0kw
Backworking Attachment
Max. chucking diameter: ................ 32mm (1-1/4in)
Max. lenght for front ejection: ........ 125mm(4-59/64in)
Max. parts prcjection length: .......... 45mm(1-49/64in)
4-spindle backworking unit
- Max. drilling capability
- - Stationary tool: .................. 13mm(1/2in)
- Max. tapping capability
- - Stationary tool: .................. M10xP1.5
Sub spindle speed: ..................... max.7,000min-1
Sub spindle motor(continuous/15min): ... 2.2kw/3.7kw
Dimension (L x W x H, Approx): ......... 9' x 4' x 5'6"
Weight (approx): ....................... 8300 lbs

Machine: 130" x 51" x 69" 8,300 lbs
Coolant Pan: 51" x 32" x 21" 155 lbs

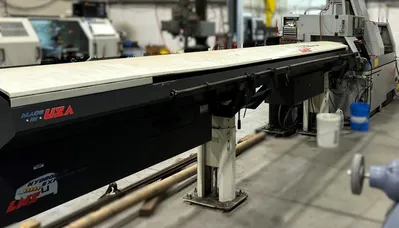

Bar Feed: 108" x 48" x 48", 1200 lbs
Chip Conveyor: 120" x 36" x 50", 800 lbs

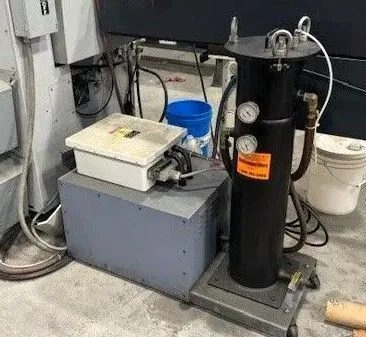

HPC: 36" x 24" x 36", 500 lbs

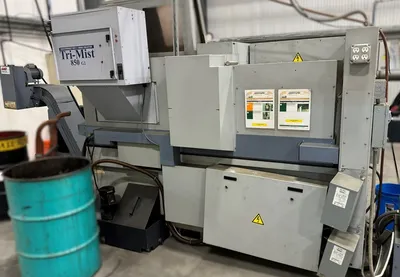

Mist Collector: 48" x 48" x 56" (palletized, approx)
