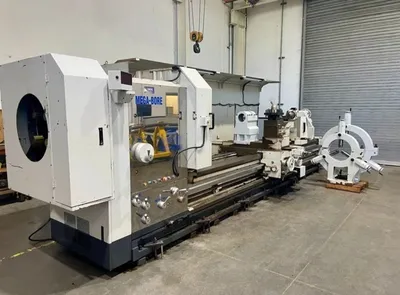

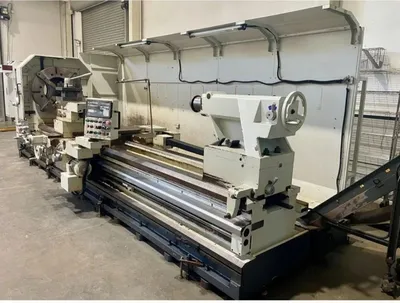

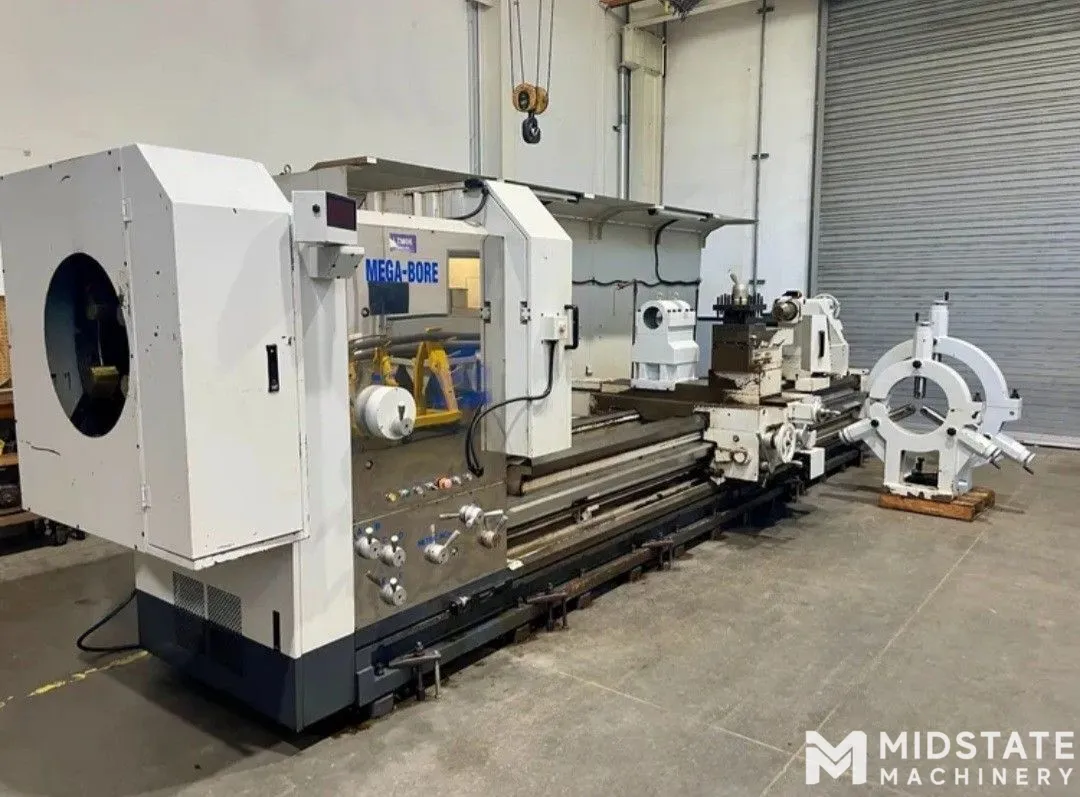

Megabore PB5021040 Hollow Spindle Lathe

Spindle Thru Bore 21"
Swing over bed 50"
Distance between centers 160"
Width of Bed 28"
Weight of machine : 17500kgs
Semi-auto threading cycle
Auto 4 steps Spindle speeds with inverter drive 6 - 250 rpm

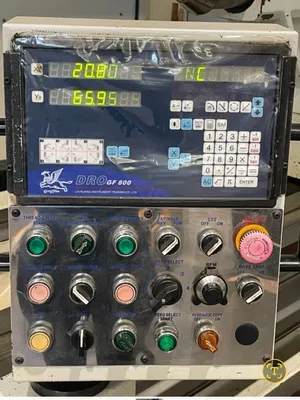

Digital spindle speed display
Cross slide travel 31.5"
Compound slide travel 12" (Powered)
Metric Threading 1 - 56 mm (60)
Inch Thread TPI ½-28 (60)
Module thread MOD 0.25-14 (60)
Diametral DP 2-112 (60)
Pitch of leadscrew mm (TPI) 12(2)
Tailstock quill Diameter 5.75"
Tailstock travel 7.87
Quill Taper MT6
Motor capacity 40HP
Voltage: 440V 50Hz. 3Ph
Hardened Ways
