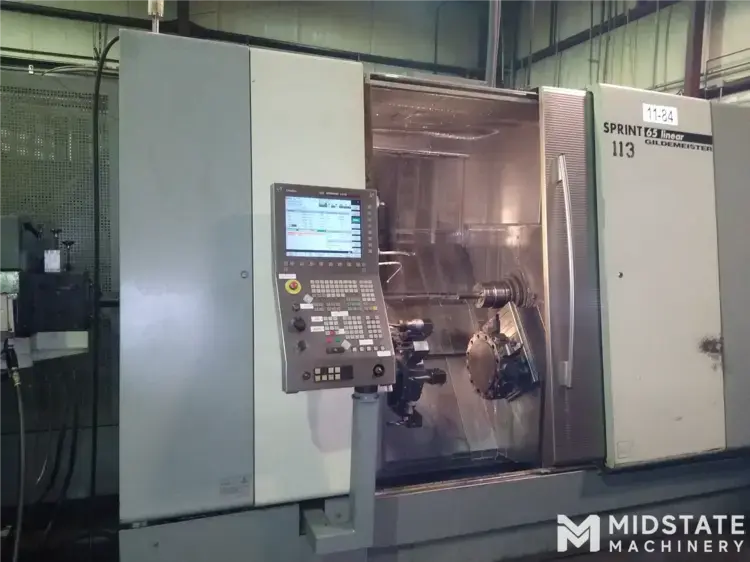

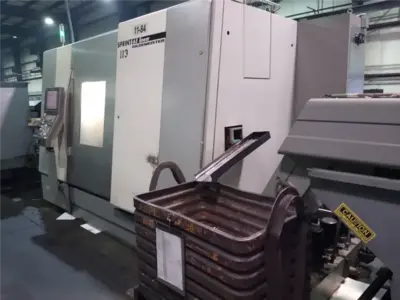

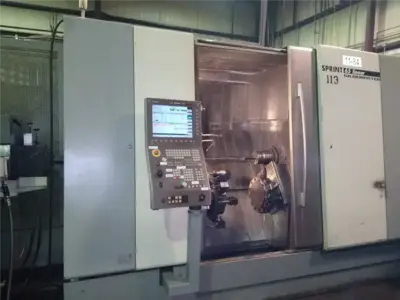

Gildemeister Sprint 65 Linear CNC Turning Center, New in 2006

General Specifications:
Axes: 8 + 2
Main Spindle Maximum Bar Diameter: 2.6" (2.8")
Main Spindle Maximum Rotational Speed, Main Drive: 5,000 RPM
Main Spindle Chuck Diameter: 6.9"
Main Spindle Spindle Nose: 5.5"
Main Spindle Power: 29.5 HP
Counter Spindle Maximum Bar Diameter: 1.7"
Counter Spindle Maximum Rotational Speed, Main Drive: 5,000 RPM
Counter Spindle Chuck Diameter: 6.9"
Counter Spindle Spindle Nose: 5.5"
Counter Spindle Power: 22.8 HP
Rapid Traverse Of The Axes: 1,181.1 IPM
Axis Acceleration: 196.9 In/s-2
W2-axis Stroke (Counter Spindle) 27.2"
X1, X2, X3-Axis Travel: 6.5"
Z1-Axis Travel: 8.7"
Z2-Axis Travel: 5.9"
Z3-Axis Travel: 25.6"
Y3-Axis Travel: 3.1" (-2.0/+1.2)

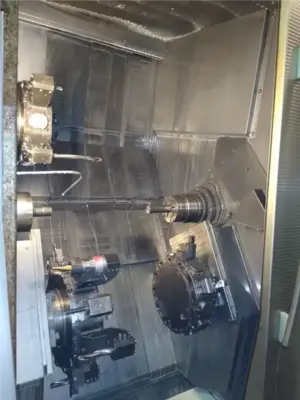

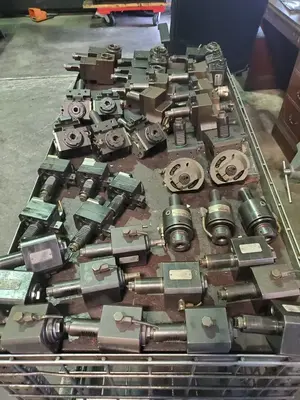

Number Of Turrets: 3
Tool Stations (Per Turret): 12
Driven Stations (Per Turret): 12
Diameter Of The Tool Fitting (Din 69880): 1.2"
Rotational Speed Of Driven Tools: 4,500 RPM
Maximum Output (100%-25%): 3.4 Hp/8.0 HP
