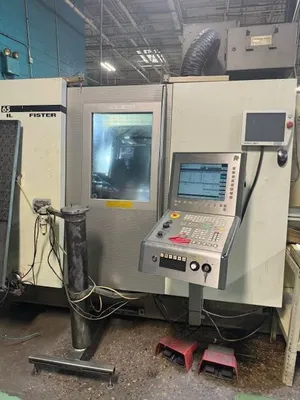

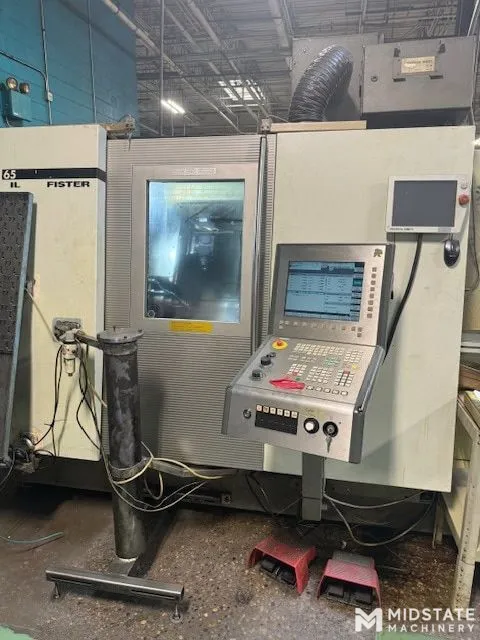

Gildemeister Twin 65 Linear CNC Turning Center, New in 2005
Have one to sell?
ConditionUsed
1 available
Gildemeister Twin 65 Linear CNC Turning Center, New in 2005

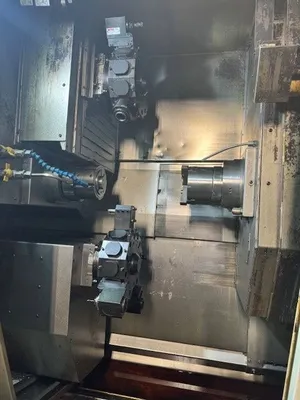

-Dual Turret
-Dual Spindle
General Specifications:
Hydraulic Chuck Diameter (double chuck): 8″
Swing Over Bed: 10″
Turning Diameter: 8″
Work Piece Length: 25″
X-Axis Travel: 8.6″
Z-Axis Travel: 21.6″
Spindle Bore: 2.56″
Bottom Turret Tool Changer: 12
Upper Turret Tool Changer: 12
Spindle Speed: 5000 RPM
Main Motor: 40 KW
Power: 400V/230/3Ph/60Hz
Machine Dimensions: 162″ x 121″ x 110″
Machines Weight: 16,500 LBS
Siemens CNC Control
Chip Conveyor
Mist Collection
Gildemeister Twin 65 Linear CNC Turning Center, New in 2005
-Dual Turret
-Dual Spindle
Imperial
| # Axis | 5 |
| Swing | 10" |
| Machining Length | 25" |
| Chuck Size | 8" |
| Bar Capacity | 2.55" |
| Power | 50 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 8" |
| Tailstock | No |
| Control | CNC (Siemens) |
| Dimensions | 162″ x 121″ x 110″ |
| Weight | 16,500 LBS |
General Specifications:
Hydraulic Chuck Diameter (double chuck): 8″
Swing Over Bed: 10″
Turning Diameter: 8″
Work Piece Length: 25″
X-Axis Travel: 8.6″
Z-Axis Travel: 21.6″
Spindle Bore: 2.56″
Bottom Turret Tool Changer: 12
Upper Turret Tool Changer: 12
Spindle Speed: 5000 RPM
Main Motor: 40 KW
Power: 400V/230/3Ph/60Hz
Machine Dimensions: 162″ x 121″ x 110″
Machines Weight: 16,500 LBS
Siemens CNC Control
Chip Conveyor
Mist Collection
