HAAS TL-1 Toolroom Teach Style Lathe, New in 2004
Have one to sell?
ConditionUsed
1 available

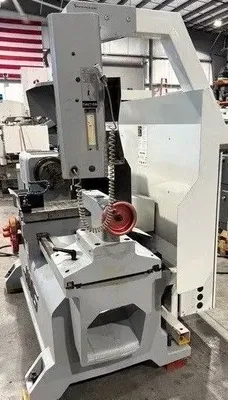

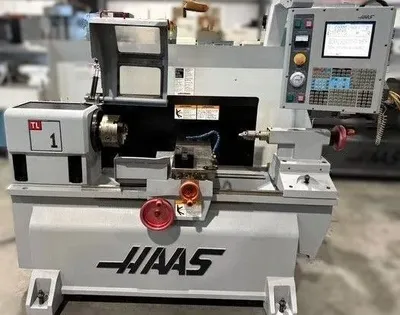

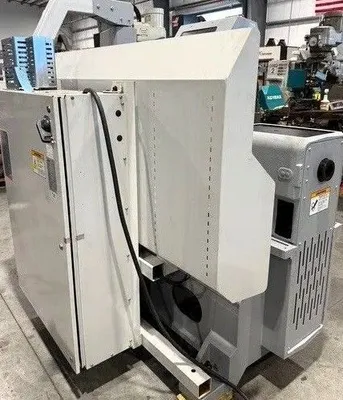

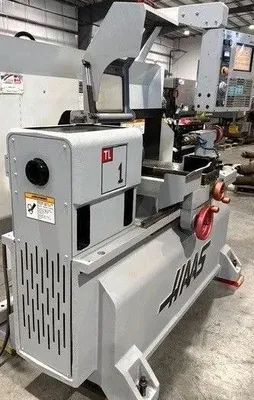

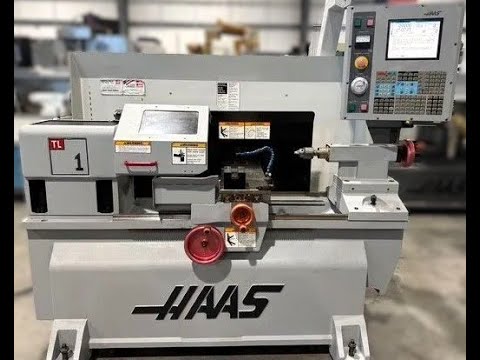

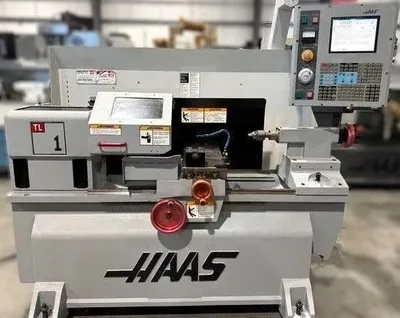

HAAS TL-1 Toolroom Teach Style Lathe, New in 2004.
Swing over cross slide- 11”
Maximum cutting diameter- 16”
Maximum cutting length- 30”
Distance between centers- 30”
X axis travel- 8”
Z axis travel- 30”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-5
Max spindle speed- 1800 R.P.M.
Spindle bore- 2.30”
Machine weight- 5000 Lbs.
Machine dimensions- 92” x 69” W x 83” H

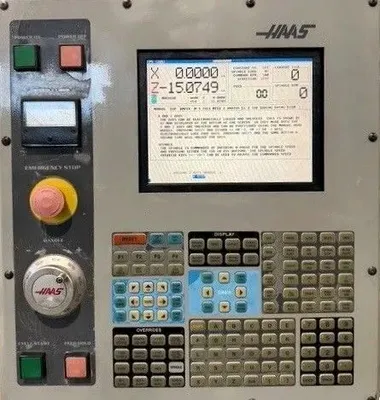

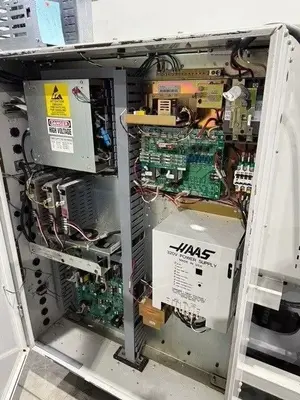

HAAS CNC control
Control options- DNC, MACROS, Quick code, Brushless Barfeeder interface, Intuitive Programming System

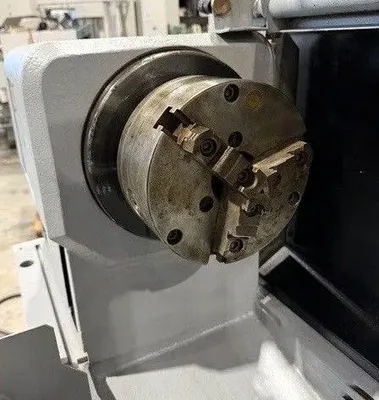

8” BISON 3 jaw chuck

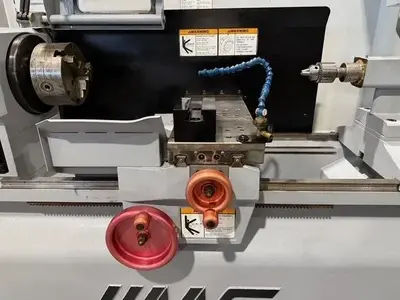

Jacobs drill chuck

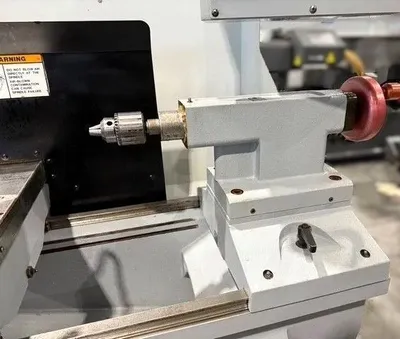

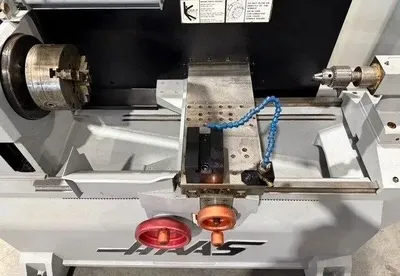

Tailstock
Main spindle motor 10 H.P.
Machine is currently wired for 208 3 phase or can be wired for 240 volt single phase
