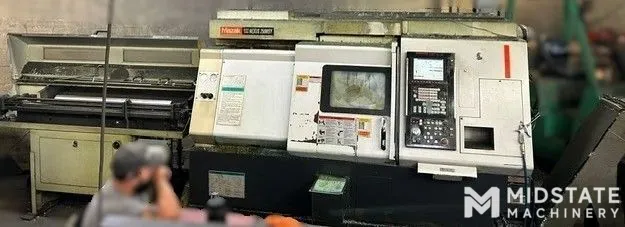

MAZAK Quick Turn 250MSY CNC Turning Center, New in 2006

General Specifications:
Swing 26.5"
Machining Length 21.3"
Chuck Size 6"
Bar Capacity 3"
Power 10 hp
Max RPM 6,000 RPM
Turning Dia 14.75"
Control CNC
Weight 11,530 LBS
MAX. SWING 26.5"
MAX TURNING DIA 14"
MAX TURNING LENGTH 21.28'
MAIN SPINDLE C-AXIS 0.001" N/C
COUNTRING
MAIN MOTOR 35HP AC
SPINDLE SPEEDS 4000 RPM
X-AXIS 9"
Z-AXIS (BETWEEN CHUCK JAWS) 21.28"
Y-AXIS +/- 2.000
W-AXIS (SUB-SPINDLE) 23.00"
SUB SPINDLE INDEXING 0.0001" DEGREE
SUB SPINDLE HORSE POWER 10HP
SUB SPINDLE CHUCK SIZE 8"
SUB SPINDLE SPEED 6000RPM
RAPIDS ON SUB SPINDLE 1181 IPM
RAPID TRAVRSE X, Z 1181, 1299 IPM
RAPID TRAVERSE Y 826 IPM
C-AXIS 400 RPM
TURRET TYPE 12 TRT
BORING BAR TYPE 1.25"
ROTARY TOOL SPEED 6000 RPM
ROTARY TOOL HORSE POWER 7.5" AC
