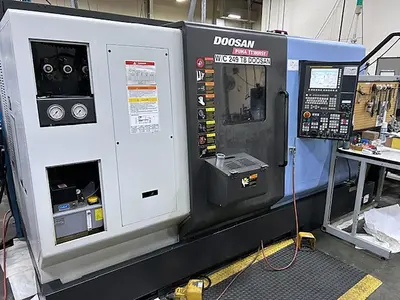

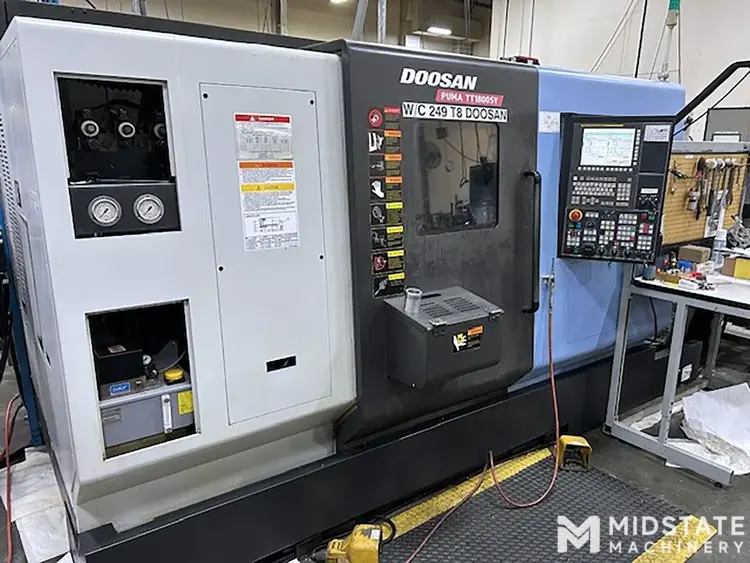

DOOSAN PUMA TT1800SY 5-Axis CNC Lathe

BAR CAPACITY 2.625"
CHUCK SIZE 8"
SPINDLE SPEED 5,000 RPM
SPINDLE MOTOR 30 HP
X AXIS TRAVEL 6.5"
Z AXIS TRAVEL 31.5"
RAPID RATE Z AXIS 944 IPM
RAPID RATE X AXIS 787 IPM
MAX TURNING DIA 9.1"
MAX TURNING LENGTH 9.1"
MAX SWING 9.1"

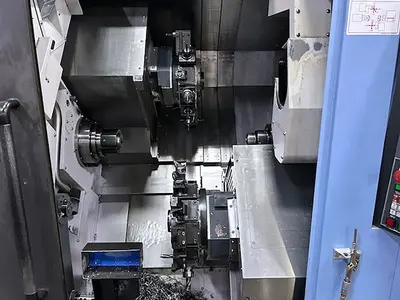

TURRET
TURRET CONFIGURATION (UPPER + LOWER) 24 + 24 (48 Total Stations)
O.D TOOL SIZE 0.8" x 0.8"
MAXIMUM I.D. TOOL SIZE 1.3"
TURRET INDEXING TIME 0.15 Seconds
MAXIMUM ROTARY TOOL SPEED 5,000 RPM
SPINDLE MOTOR (30 MIN / CONT) 29.5 HP / 20.1 HP
MAXIMUM SPINDLE TORQUE 153.5 Ft-Lbs
SPINDLE NOSE A2 #6
SPINDLE BEARING DIAMETER 4.3"
SPINDLE INNER DIAMETER 3.0"
C-AXIS INDEXING 360° in .001° increments
SUB & MAIN SPINDLE
SPINDLE SPEED. 5000 RPM
