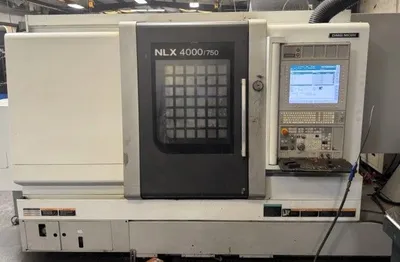

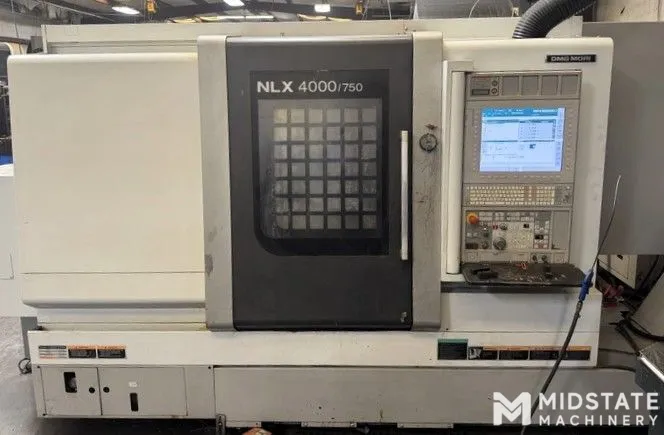

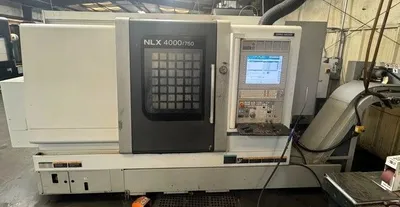

MORI SEIKI NLX-4000AY/750, New in 2014

General Specifications:
Swing Over Bed: 39.4"
Swing Over Cross Slide: 30.7"
Maximum Turning Diameter: 19.7"
Standard Turning Diameter: 15.3"
Maximum Turning Length: 12.6"

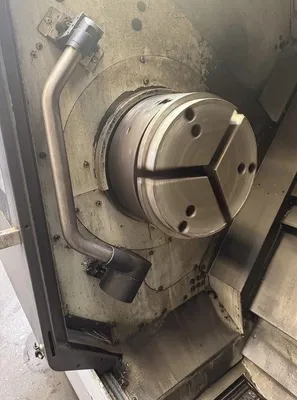

Chuck Size: 18"
Bar Work Capacity: 4.6"
X-Axis Travel: 14.4"
Y-Axis Travel: 4.7"
Z-Axis Travel: 34.4"
Spindle Speed: 2,000 RPM
Spindle Speed Ranges: 2
Spindle Nose: JIS A2-11
Thru-Spindle Hole Diameter: 5.7"
Spindle Indexing Increment: 0.001 Degree
Spindle Bearing Inner Diameter: 7.9"

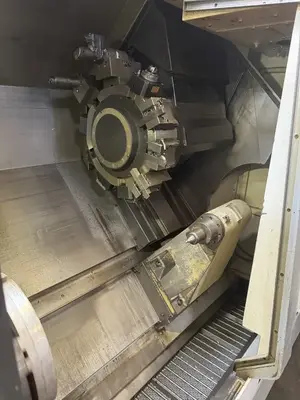

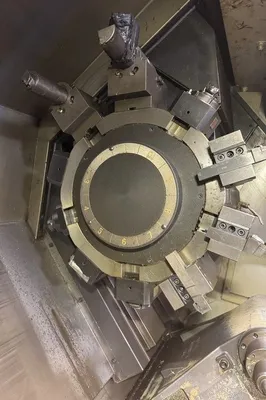

Number of Tool Stations: 12
Shank Height for Square Tool: 32"
Diameter of Boring Bar Shank: 2"
Shank Diameter for Rotary Tool: 32"
Turret Indexing Time: 0.5 Sec
Rotary Tool Spindle Speed: 10,000 RPM (High Torque: 4,000)
Rapid Traverse Rate (X & Z / Y): 1,181 IPM / 393 IPM
C-Axis Travel: 400 RPM

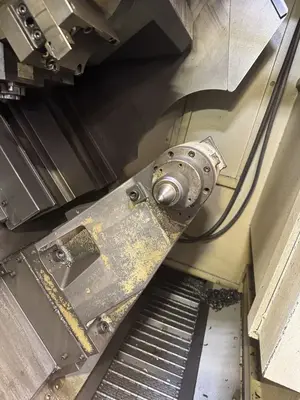

Tailstock Travel: 28.9"
Tailstock Spindle Diameter: 4.3"
Spindle 1 Drive Motor: 50/40 HP
Rotary Tool Spindle Drive Motor: 7.3 HP
Feed Motor:
X-Axis: 6.0 HP
Y-Axis: 6.0 HP
Z-Axis: 6.0 HP
Tailstock: 4.0 HP
