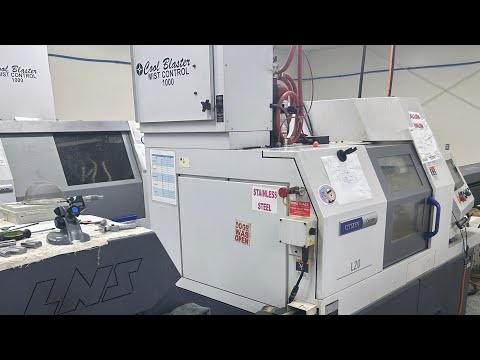

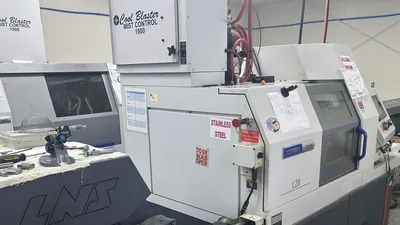

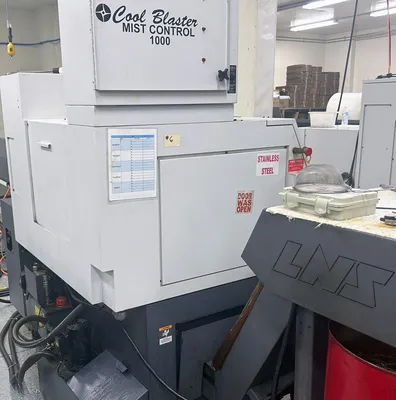

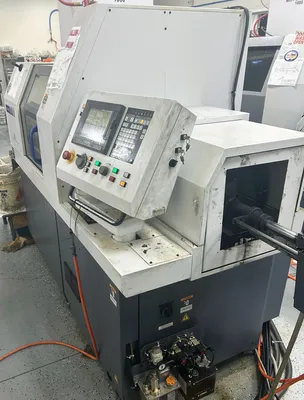

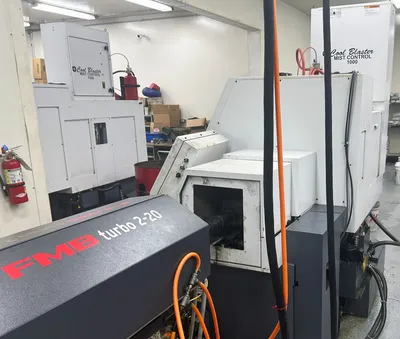

Citizen L20EVIII (2M8), New in 2019

General Specifications:
Machining Diameter: .75" (1" Option)
Machining Length: GB: 7.8" / 1 Chucking: 7.4" / NGB: 2.5D
Spindle Through Hole Diameter: 1.02"
Main Spindle Speed: 10,000 RPM
Chuck Diameter of Back Spindle: .75" (1" Option)
Protrusion Length of Back Spindle Workpiece: 1.18"
Protrusion Length: 3.14"
Sub-Spindle Speed: 10,000 RPM
Gang Rotary Tool Spindle Speed: 9,000 RPM
Back Tool Post Rotary Tool Speed: 7,500 RPM
Tools to be Mounted: 37
Gang Rotary Tool: 25
Front Drilling Tool: 3
Back Drilling Tool: 4
Gang Turning Tool Size: 1/2"
Sleeve Size: 3/4"

Chuck & Bushing
Main Spindle Collet Chuck: TF25
Back Spindle Collet Chuck: TF25
Rotary Tool Collet Chuck: ER11, ER16
Chuck for Drill Sleeves: ER11, ER16
Guide Bushing: TD25NS

Rapid Feedrate
All Axes: 1259 IPM

Main Spindle Motor: 4.9 HP
Gang Tool Post Rotary Tool Drive: 2.9 HP
Back Spidle Motor: 2.9 HP
Front/Back Rotary Tool Drive: 1 HP

Machine Dimensions: 83" x 46" x 72"
Machine Weight: 5,182 lbs
